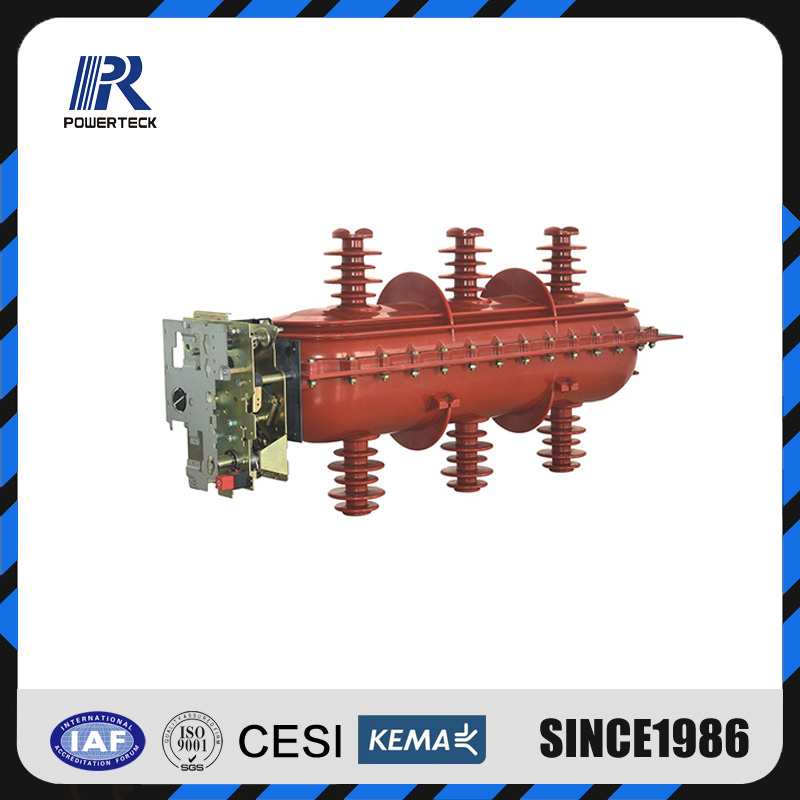

36kv Load Break Switch (RLS)
| Price: |
US $ 700-1800/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T |
++++General:
RLS-36 an indoor high-voltage SF6 load switch, an switchgear with the rated voltage of 36kV/40.5kV, adopted with SF6 gas as an arc-extinguishing and insulation medium, including the three contactors for switching-on and switching-off and to-ground, and is characteristic in its small volume, its convenient installation and operation and its the great adaptability with surroundings. RLS-36 of an indoor high-voltage SF6 load switch and RLS-36 of SF6 load switch plus fuse combination can function to protect and control the electric equipments for power supply and transformer substations especially being suitable for ring net cabinet, cable branch cabinet and distribution switching substation.
RLS-36 of an indoor high-voltage SF6 load switch and RLS-36 load switch plus fuse combination are complied with the standards of GB3804-1990, IEC60256-1,1997, GB16926, IEC60420 etc..
++++Service environment:
a) Air temperature Maximum temperature: +40ºC; Minimum temperature:-5ºC
b) Humidity Monthly average humidity 95%; Daily average humidity 90%.
c) Altitude above sea level Maximum installation altitude: 2500m
d) Ambient air not apparently polluted by corrosive and flammable gas, vapor etc.
e) No frequent violent shake
++++Main technical specifications: | No | Item | Unit | Parameter |
| 1 | Rated voltage | kV | 36 |
| 2 | Rated frequency | Hz | 50/60 |
| 3 | Rated current | A | 630 |
| 4 | 1min Power frequency withstand voltage | Wet | kV | 95 |
| dry | 110 |
| 5 | Lightning impulse withstand voltage | kV | 185/215 |
| 6 | Rated short circuit breaking current (peak) | kA | 50 |
| 7 | Rated active load and close circuit breaking current | A | 50 |
| 8 | Rated transferring current | A | 1000 |
| 9 | Rated short circuit making current (peak) | kA | 50 |
| 10 | Rated cable(line) charging breaking current | A | 50 and 10 |
| 11 | Cable charge breaking current in earthing fault | A | 20 |
| 12 | Rated withstand current (peak) | kA | 50 |
| 13 | Short time withstand current (2s) | kA | 20 |
| 14 | Mechanism life | times | 2000 |
Note: For short circuit breaking and peak current is based on Fuse plus combination.
ATTENTION:
1.The payment term: We accept TT,30% deposit and 70% balance against copy of BL.
2.The delivery time: Usually it will take about 15-20 days.
3.The standard of package: Usually use strong plywood case for protection.
4.The material of transformer: We have two types, one is with copper and another one is with aluminum. It depends on your requirement. In fact, those two have difference if normal work well. Only except the long life. Copper is better and also higher price.
5.The logo: If you have good quantity, it absolute no problem to do OEM.
6.Our market: our products are popular in Indonesia, Philippines, Russia, USA, Middle East and so on. Some of them are our regular customers and some of them are developing. We hope you can join us and make mutual benefit from our cooperation..
7.Warranty: in 12 month since BL date.
OUR SERVICE:
1.quick response in before sales period help you got order.
2.excellent service in production time let you know each step we made.
3.reliable quality solve you after sale headache.
4.long period quality warranty ensure you can buy without hesitate.
WHY CHOOSE POWERTECH:
1. One-stop supplier globally.
2. More than 10 years professional experiences in electrical appliance industry.
3.We offer professional online technology support for perfecting your electrical solution free.
4. Experienced sales service and suggestion.
5. All the products with accessories under strict quality control and final inspection before shipping.
6. We can assure the powerful competitive price and reliable quality products.
7. Most competitive shipping rate from our own shipping forwarder.
8. Warranty assurance: 12 month
9. Whatever big or small order, we can provide you one-to-one service.
CONTACT US:
Contact person: Mr. Chen Chengming
Tel:86-570-5657760
Mobile:86-18668777248
Your Best Choice for Electrical Appliances Industry!!!
Please leave an inquiry to know more details about Price , Packing ,Shipping and Discount.
| Prod Model: |
RLS |
| Type: |
High-voltage |
| Structure: |
Three-column Disconnector |
| Installation: |
Indoor High-voltage |
| Operation: |
Electric |
| Grounding: |
Single Ground |
| Series: |
Three |
| Run: |
Turn the Horizontal |
| Switching Mode: |
Single Throw-in |
| Certification: |
ISO |
| Common Model: |
Rls |
| Brand: |
Powertech |
