36kv Screened European Separable Connector
| Price: |
US $ 176.6-199.6/Set |
| Min Order: |
1/Set |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
36kV Screened European separable connector| Type | Conductor Cross Section
(mm²) |
| Front connector | Rear connector | 12/20 (24)kV | 18/30 (36)kV |
| HCPS-Q-30-1 | HCPS-H-30-1 | 25 | |
| HCPS-Q-30-2 | HCPS-H-30-2 | 35-50 | |
| HCPS-Q-30-3 | HCPS-H-30-3 | 70-95 | 35-50 |
| HCPS-Q-30-4 | HCPS-H-30-4 | 120-150 | 70-95 |
| HCPS-Q-30-5 | HCPS-H-30-5 | 185-300 | 120-185 |
| HCPS-Q-30-6 | HCPS-H-30-6 | 400-630 | 240-500 |
Product Description:
1. Adopt imported silicone rubber material to produce. Which with excellent insulation performance, heat resistance, cold resistance, dielectric properties, ozone resistance and resistance to atmospheric aging. It can be operated under various kinds of working conditions and be widely used in branch cabinets, RMU, enclosure substations and so on.
2. Each batch of raw material passes the mechanical properties and electrical properties index test, which ensures product quality from the source.
3. All finished products 100% pass the factory performance test (power frequency withstand voltage, partial discharge).
4. Import Germany DESMA solid injection production system, combining with dustless and air-conditioned manufacturing workshop with constant temperature and humidity, which ensures the product not affected by external environment and have stable quality.
5. The product is designed according to standard EN50180, EN50181 C type bushing size requirement, and meet the performance requirement of standard IEC60502, GB12706.4. It passed the national authority type test certificate. It is safe and reliable with long time running.
6. Professional engineering installation team and years of installation and operating experience, we can provide on-site installation or installation guidance to ensure installation quality.
7. Excellent inside and outside shield design, the shielded separable connectors have stable electric property without partial discharge and fulfill the fully insulation and whole sealing of the switchgear.
Technical Data:| Rated Voltage | 8.7/15(17.5)kV | 12/20(24)kV | 18/30(36)kV |
| Max Running Voltage | 17.5kV | 24kV | 36kV |
| AC Withstand Voltage andDC Withstand Voltage | 39kV, 5min or 35kV, 15min, no flashover,no breakdown | 54kV, 5min, or 48kV, 15min, no flashover, no breakdown | 81kV, 5min, or 72kV, 15min, no flashover, no breakdown |
| Partial Discharge | 15kV, PD≤5pC | 20kV, PD≤5pC | 30kV, PD≤5pC |
| Impulse Voltage Test | 95kV, ±10 times | 125kV, ±10 times | 170kV, ±10 times |
| Short Circuit Thermal Stability (Conductor) | 24kA, 2s twice, no visible damage | 25kA, 2s twice, no visible damage | 23kA, 2s twice, no visible damage |
| Short Circuit Dynamic Stability | 83kA, not less than 10ms, no visible damage | 63kA, not less than 10ms, no visible damage | 83kA, not less than 10ms, no visible damage |
| Constant Voltage Load Cycle | apply voltage 1.25 U0 to conductor and heat to (90-95)ºC, heat for 5h and cool for 3h, total 3 times |
| Long-time Running Temperature | -40ºC to 95ºC |
| Short Circuit Temperature | 250ºC, lasting time less than 5s |
| Cable Accessories Conductor Material | copper, aluminum, copper & aluminum |
| Screen Resistance Test | screen resistance less than 5000Ω before and after aging |
| Screen Leakage Current | under Max voltage, leakage current less than 0.5mA |

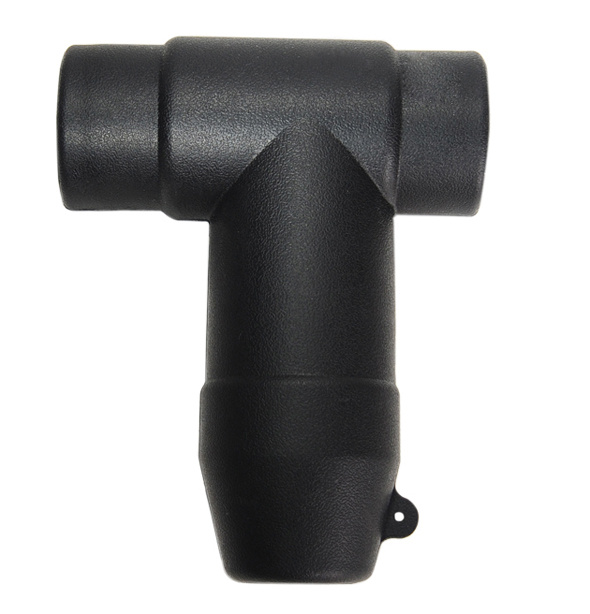

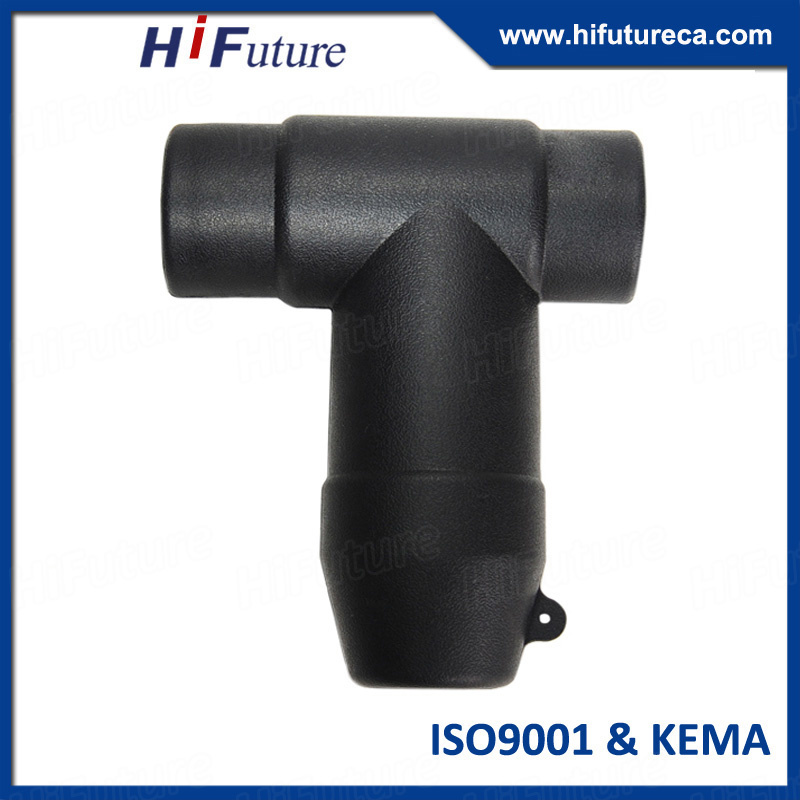

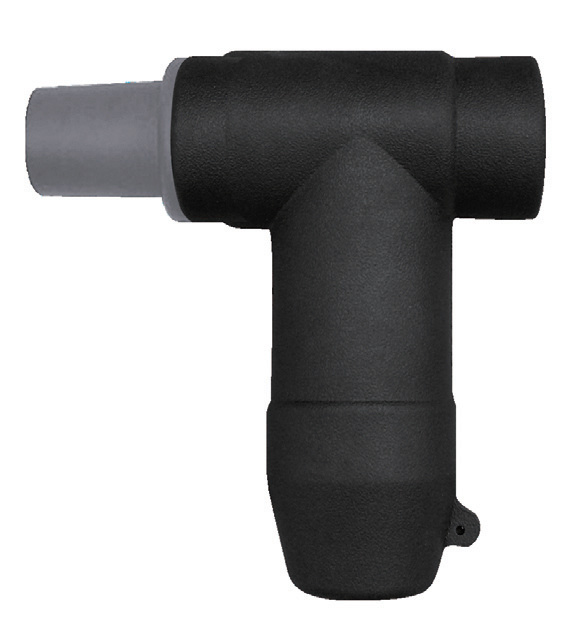

Product Show:
| Prod Model: |
HCPS-Q |
| Cross Section: |
35-500 Sqmm |
| Conductor Material: |
Copper, Copper & Aluminum |
| Screened Type: |
Injection/ Molding |
| Type: |
Socket Terminals |
| Material: |
Silicone Rubber |
| Application: |
Applied to Switchgears |
| Character: |
Insulation, Protection, etc |
| Species: |
Cable Connector |
| Shape: |
T Type |
| Certification: |
Kema, En, IEC, GB, ISO, RoHS |
| Brand: |
Hifuture |
