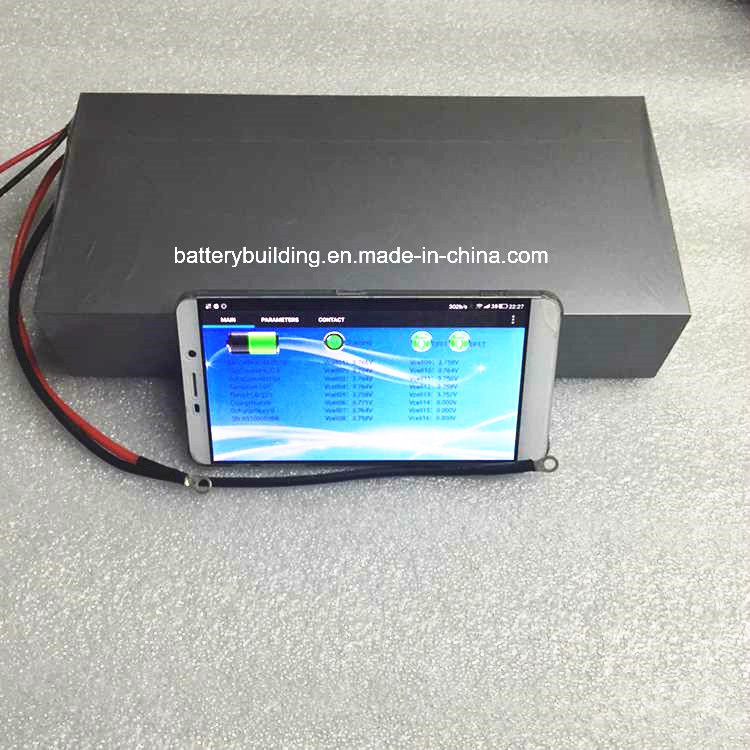

36V 20ah PVC Lithium Battery Pack with Bluetooth BMS for Electric Bike
| Price: |
US $ 205-225/Piece |
| Min Order: |
5/Piece |
| Pay Type: |
T/T,Western Union,Paypal,Money Gram |
36V 20Ah PVC lithium battery pack for e-bike and e-scooter with 2 years warranty FeaturesModel: 36V 20Ah NCM lithium-ion battery packCell: 18650 3.7V 2200mah cell.Configuration: 10S9PDimension: 290*138*60mmNet Weight: Approx 4.3kg BMS: Custom BMS with 30A continuous and 80A peak discharging current. Customization: We can assemble the battery pack with different cells like Samsung ICR18650 26F 2600mah cells or Panasonic NCR18650PF 2900mah cells etc, also the size and capacity can be custom as your request.BMSThe BMS provides protection against over-charge, over-discharge, short circuit, through monitoring single string of cells. Also it enables every battery pack to obtain independent balancing function. Specification
NO | Item | General Parameter | Remark |
| 1 | Model | BBG-3620 | |
| 2 | Standard capacity(0.2C) | 20Ah | |
| 3 | Rated voltage | 36V | |
| 4 | Max. charge voltage | 42V | Single Ave. charge Voltage: 4.2V |
| 5 |
Over charge protection | Over charge detection voltage | 4.40±0.025V | |
| Over charge release voltage | 4.3±0.025V | |
| 6 | Standard charge current | 4A | 0.2C |
| 7 | Charging time | About 300 minutes | 0.2C |
| 8 | Discharge cut-off voltage | 27.5V | Single Ave. Discharge Voltage: 2.75V |
| 9 |
Over discharge Protection | Over discharge detection voltage | 2.5±0.05V | |
| Over discharge release voltage | 2.75±0.05V | |
| 10 | Max. continuous discharge current | 30A(adjustable) | |
| 11 | Peak discharge current | 80A(adjustable) | |
| 12 | Short circuit protection | Detection delay time | XXμs | Release condition | Cut-off load |
| 12 | Battery dimension | 290*138*60mm | |
| 13 | Net weight(Approx.) | About 4.3kg | |
| 14 | Operation temperature | Standard | 0~45 | |
| Discharge | -20~65 | |
| Storage | -20~65 | |

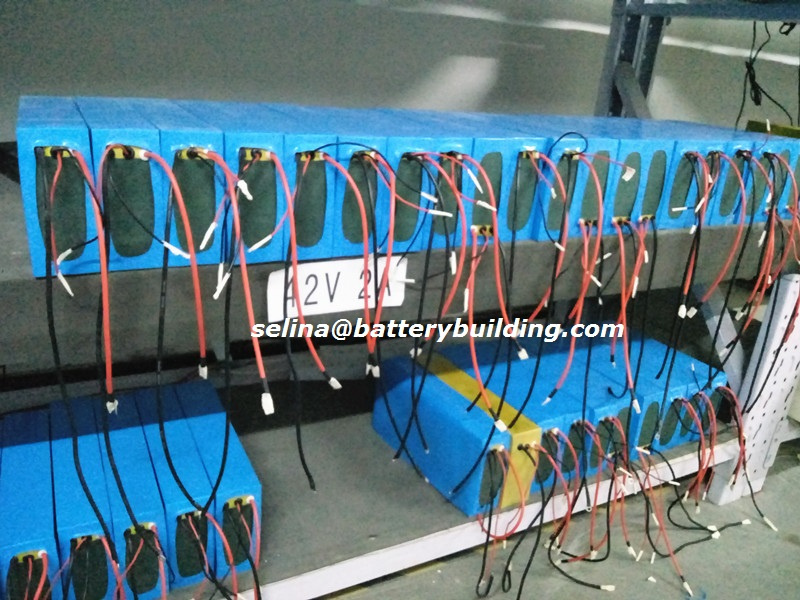

Key ApplicationWidely applied in Electric Bicycle, Electric vehicle, Electric Tricycle, Electric scooter, Electric golf trolley, Electric car, Electric wheelchairs,two wheel vehicles and etc.Pictures for reference:
Shipping Terms1.Samples order: sending by Express ( DHL/ UPS/ FEDEX/ TNT )2.Bulk order: sending out by express/air/sea. Term of trade1. Payment: 30% advance payment by T/T, 70% balance should be paid off before shipping.2. EXW, FOB and CIF all are available.3. Production lead time:7-10 working days.4. Sample can be delivered in 3-5 working days.5. Discounts are offered based on large quantities.6. Loading port: Shenzhen or HK.Advantages1. Your inquiry related to our products will be replied within 24 hours.2. OEM & ODM, also provide customized service.3. CE, ROHS, UN, UL, MSDS etc certification.4. 2 years warranty and testing report can be provided. 5. Solid package, stable shipment, 100% testing and inspection before shipping to ensure the quality. 6. Distributorship is available for your unique design and some our current models.7. We will keep secret for customer sale area ,design ideas and all other private informationContactPlease contact us freely or call us at +86-13267068372. Selina always here and will do best to help you.
| Prod Model: |
BBG3620 |
| Model: |
36V 20ah Lithium Battery Pack |
| Nominal Voltage: |
36V |
| Nominal Capacity: |
20ah |
| Cell: |
18650 3.7V 2200mAh |
| Configuration: |
10s9p |
| BMS: |
30A Continuous Working Current, 80A Peak Current |
| Charger: |
42V-4A Aluminum Charger |
| Net Weight: |
4.3kg |
| Application: |
E-Bike/Tricycle/Scooter/Skateboard etc |
| Warranty: |
2 Years |
| Type: |
Lithium-Ion Battery Pack |
| Connection Mode: |
Series and Parallel |
| Electrolyte: |
Lithium |
| Rated Capacity: |
20ah |
| Standard Voltage: |
36V |
| Size: |
290*138*60mm |
| Usage: |
Electric Bike, Tricycle, Scooter, Skateboard etc |
