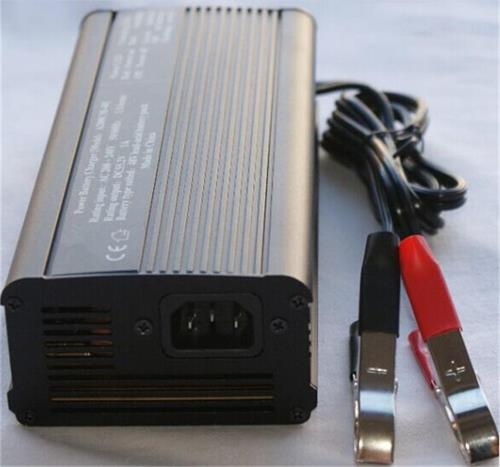

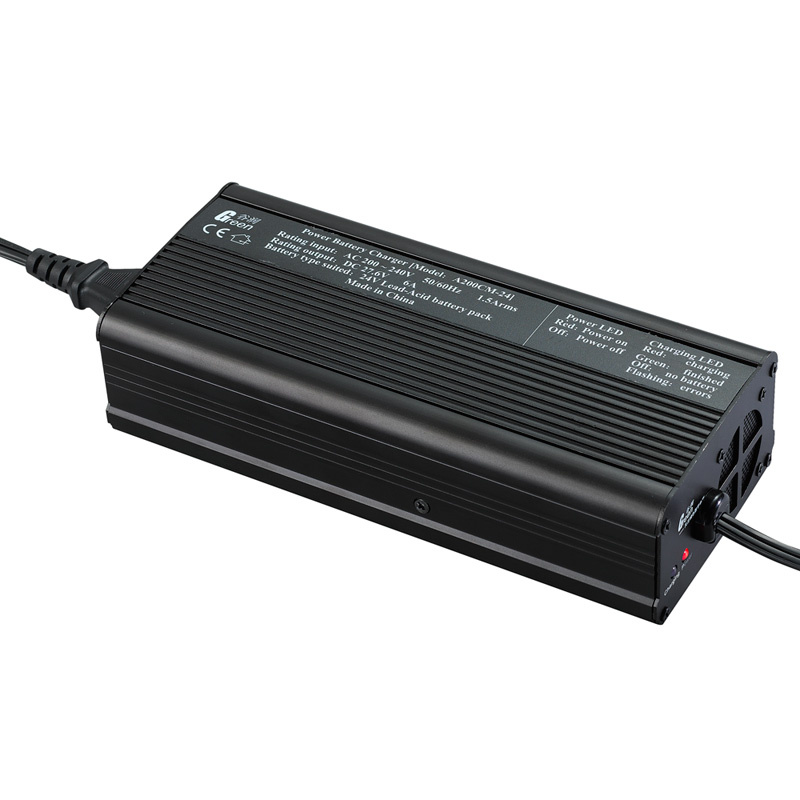

36V 6A Golf Carts Battery Charger

Name: 36V 6A Golf Carts Battery Charger
Brand: all-electronics-online.com
SKU: 772517675
Availability: InStock
Rating: 4.4 (27 reviews)

Price:	US $ 24-30/Piece
Trade Terms:	FOB
Min Order:	200/Piece
Pay Type:	T/T,Paypal

Contact Supplier

Showroom Product Company Profile

A200CM-36 36V 6.0A Lead Acid Car Portable Battery Charger

Specification
Input: 100 or 240V(defined when order)
Output: 41.4V 6.0A
Charge Process: CC-CV(H)-CV(L)
Charger Indicator: Red Charging/Green Finished
Output Protections: Short-circuit, Reverse Polarity
Safety Approval: CE
Size:213 x 94 x 54mm
Suit for Battery: 36 Volt 8~50Ah Lead-Acid Battery Charger

Feature:

Standard 3 stages (CC-Bulk-Float) charging process.

It is designed for all kinds of 36V Lead-Acid battery, such as SLA, AGM and Gel battery.

With bi-color LED, red for charging green for finished Red flashing for errors, "off" for no battery wired.

Protection mode for battery polarity reversed or the output connectors shorted.

Meet EN60335-2-29 and UL1310 safety requirements.

Specification for A200CM-36

Rating Input Voltage	100~120V or 220~240VAC,50-60Hz
Input Current	3.3A @ 100V input.
Input power factor	0.7
Charge voltage Limited	A200CM-12	A200CM-24	A200CM-36	A200CM-48
	14.7V±1%	29.4V±1%	44.1V±1%	58.8V±1%
Bulk charge current	7A~12A	4A~8A	3A~6A	2A~4A
Float charge voltage	13.7V±1%	27.6V±1%	55.0V±1%	54.8V±1%
Operate Temp.	-20ºC~40ºC
Cooling	Fan convection. Do not cover the charger.
Charge principle	3 stages: CC-Bulk-Floating
LED display	Bi-color LED indicator, "Red" for charging "Green" for full charged or idle. Red flashing for errors; "off" for no battery wired.
Battery type	All types of 36V lead-acid batteries. (SLA, Gel, AGM, Wet.)
Battery capacity	20-100Ah
Size	213 x 94 x 54mm

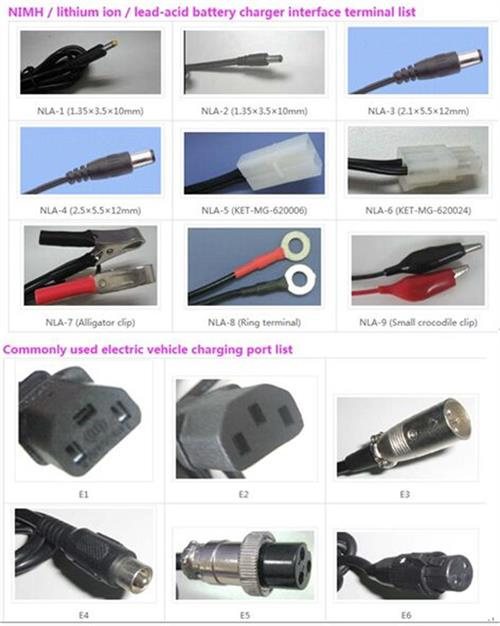

Output cable & plug	1.5 meter 2xAWG16#, SPT1 wire, DC plug type defined by user.
Input AC plug	IEC60320-C14
Enclosure	Aluminium casing, with Fan cover.
Weight	800g

Prod Model:	A200CM-36
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
For Use:	Standard Battery
Case:	PC+ABS Plastic
Color:	Black
Customized:	Yes
Recovery Function:	Yes
Short Circuit Protection:	Yes
Reverse Potection:	Yes
Overheating Protection:	Yes
LED Dispaly:	Yes
Delivery Date:	2-3weeks
Type:	Lead-Acid Battery
Charger Type:	Lead-Acid Battery Charger
Charger Application:	Electric Forklift, Wheelchair,Sightseeing Car
Nominal Voltage:	41.4V
Charger Style:	Oblong
Compatible Battery Type:	36 Volt 8~50ah Lead-Acid Battery
Size:	213 X 94 X 54mm
Socket Type:	UL, VDE, PSE, UK, SAA...
