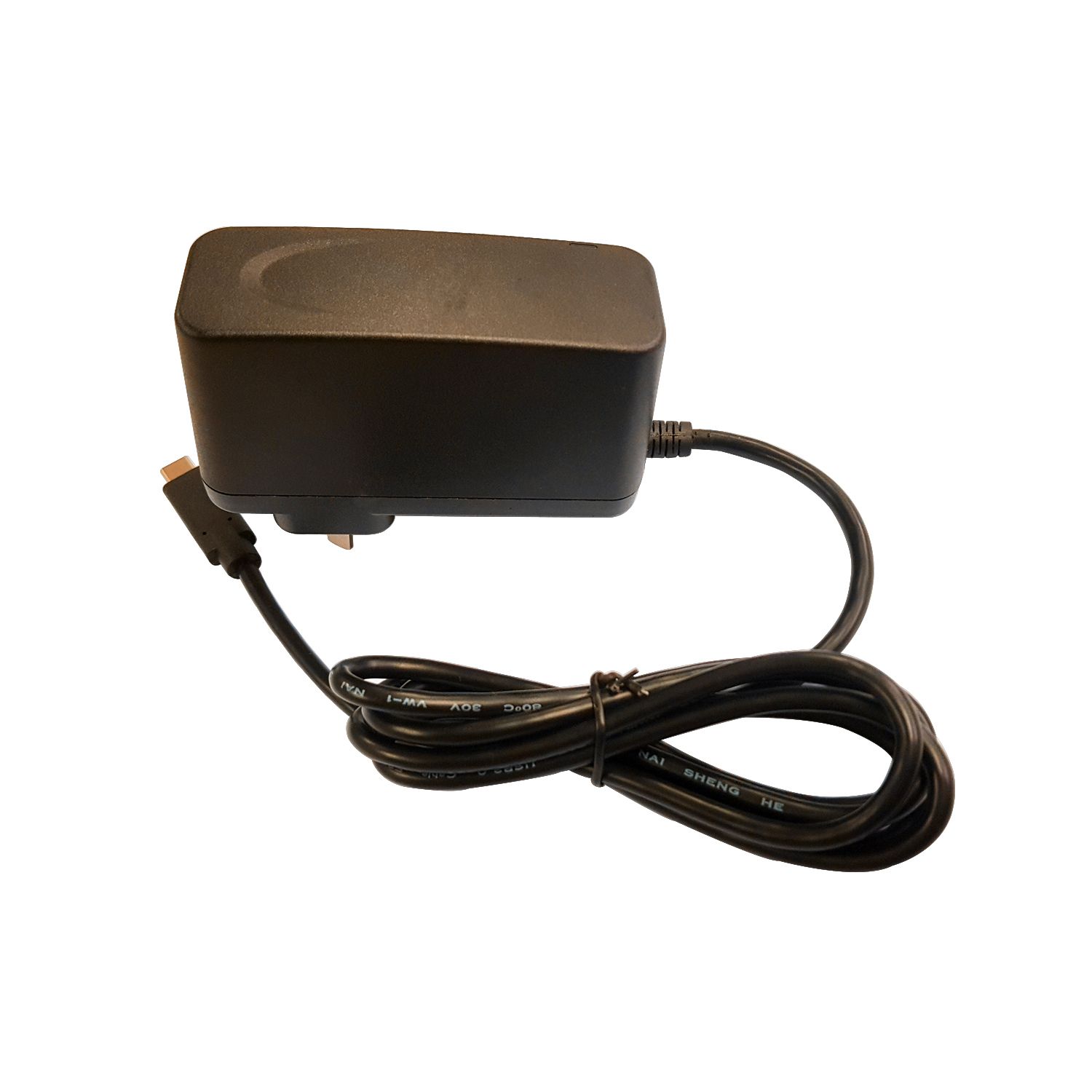

36W Argentina USB-C Power Adapter Type-C Pd Charger Adaptor with DC Cable

Name: 36W Argentina USB-C Power Adapter Type-C Pd Charger Adaptor with DC Cable
Brand: all-electronics-online.com
SKU: 838951825
Availability: InStock
Rating: 4.7 (26 reviews)

Price:	US $ 6.99-11.99/Piece
Min Order:	50/Piece
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Product Description

36W Argentina TYPE-C power adapter(with line)

Specification:

Specifications
Model No.	FAS-36W-PD
AC Input
Nominal Input Voltage	AC 100V~240V
Input Voltage Range	AC 95V~265V
Input Frequency	50/60Hz
DC Output
Output Voltage& current	20V 1.8A/12V 3A/5V3A/9V3A
Output Power	36W
DC Connector Size	TYPE-C
Line Regulation	2%
Load Regulation	5%
Ripple Noise	180 Mvp-p
Efficiency	>85%
Output Cable Standard	0.5mm2, OD 4.0mm Pure Copper
Output Cable Length	2m normally or customized requirement
Environment
Operating Temperature	0°C ~40°C
Operating Humidity	5%~95%RH
Storage Temperature	-20°C ~85°C
Storage Humidity	5%~95%RH
Protection
Over Load Protection	Short Circuit Protection
Over Current Protection	Over Temperature Protection

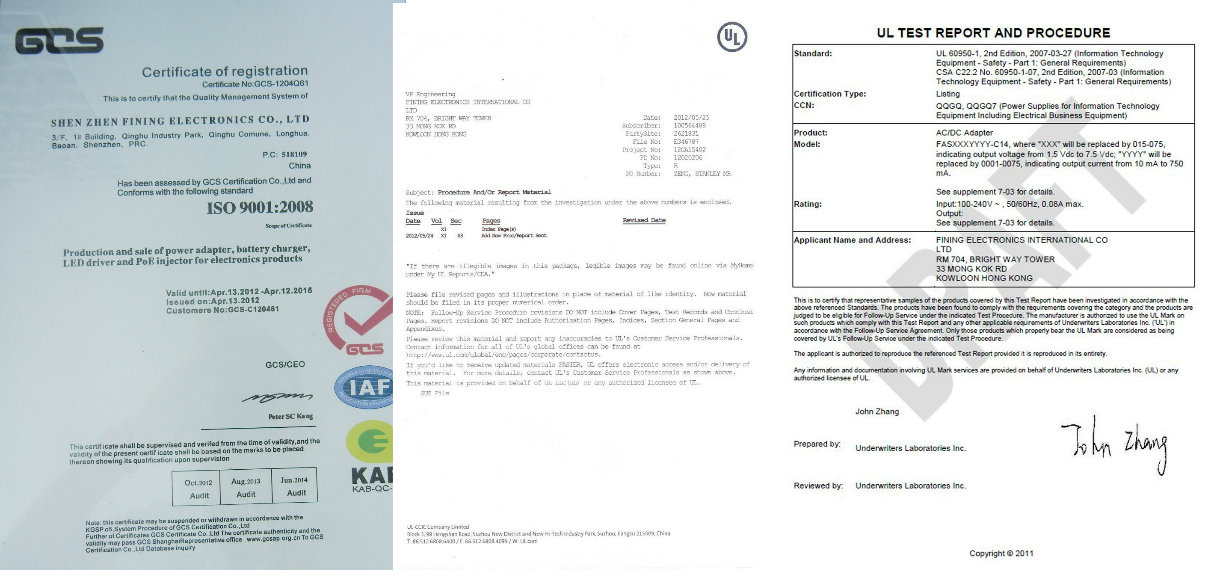

Certificates
CE, ROHS, FCC, CB, GS, TUV, UL,CCC
Dimensions
Adapter Size	9636.4549.98
Adapter Weight	188G
Inner Box Size	1066952mm
Inner Box Weight	45g
PCS/CTN	100PCS
Outer Carton Size	L54xW37xH23.5CM
Outer Carton Weight	980g
Terms and Conditions
MOQ	100PCS for mixed order
Payment Terms	T/T, L/C, PayPal, western union
Delivery Time	15 working days
Test Procedures
1.No-load output voltage test→2.input power load test→3.No-load output ripple test→4.Full load open test→5.Full load output voltage test→6.Full load output ripple test→7.Full load input power test→8.Half load output voltage test→9.Half load output ripple test→10.Over load test→11.Over current protection test →12.Short circuit protection test (above test is under both 110V and 230V.)→13.High voltage test→14. burn-in test→15.Turn on delay time test→16.Rise time test→17.Hold time test→18.Overshoot test

Applications
NintendoSwitch,Macbook Pro,Google Book,iPad Air,Dell XPS13,Samsung Notebook,HUAWEIMATEBOOK,XIAOMI Note2/5/4C and more.

Prod Model:	FAS-36W-PD
Rated Output Voltage:	5/9/12/15/20VDC
Rated Output Current:	3A, 2.5A, 1.8A(Max)
Efficiency:	88% Min
Usage:	Nintendoswitch, MacBook PRO, Google Book, iPad Air
Connection:	Plug In
Output Type:	USB Type C
Bluetooth Standard:	N/a
Brand:	Fining

Our company supplies different kinds of power adapter products to global market with good quality and reasonable price, and very familiar with CE, FCC, UL, ETL standrads.

We have the following advantages:

1. Have cooperated with a lot of importers for more than 6 years.

2. Experenced in handling OEM orders.

3. Qiuck delivery time for decent orders.

4. Own designing team for new products development.

5. Factory audited by SGS, INTERTEK&WEINSPCTION.

6. Free samples could be provided.

We are power adapter manufacture and focusing on providing high efficiency and reliability power supplies. Our main products include PoE(Power over ehternet)products, custom AC/DC power adapters and LED Driver power supply. We can afford custom service according to your requirements.
