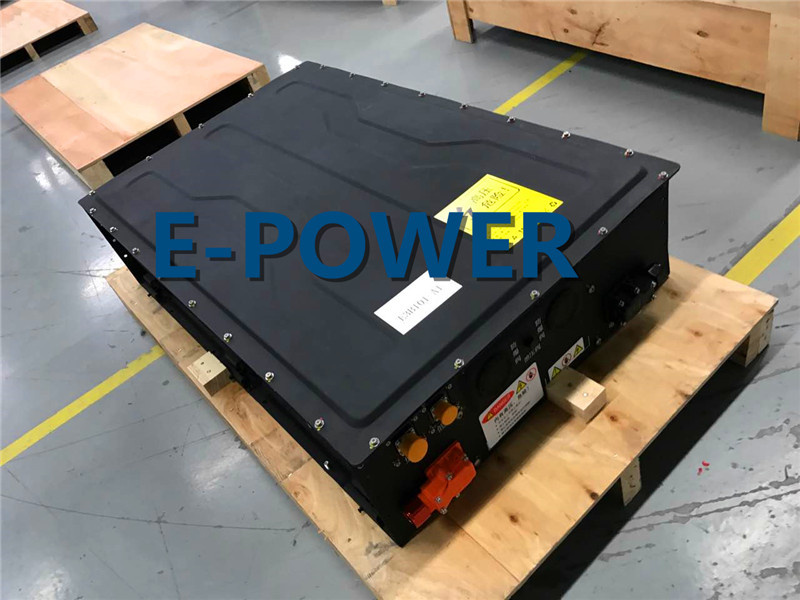

372V 37ah Lithium Battery Pack for EV, Phev, Passenger Vehicle
| Price: |
US $ 0.27-0.3WH |
| Min Order: |
1000WH |
| Pay Type: |
L/C,T/T |
372V 37AH Lithium Battery Pack for EV,PHEV,Passenger vehicleSupporting solution: can provide the solution according to customer's requirements. | Rated voltage(V): | 372 (Customized) |
| Rated battery pack capacity (Ah): | 37 (Customized) |
| Rated battery pack energy (KWh): | 13.8 (Customized) |
| Voltage range (V): | 285-420 (Customized) |
| Max. Charge current (A): | 55 (Customized) |
| Max. Discharge current (A): | 110 (Customized) |
| Cycle life (time): | >1600 (80% DOD) |
| BMS working voltage ( Vdc): | 12 |
| SOC estimation accuracy: | <5%~8% |
| Temperature difference: | <=5°C |
| Thermal management: | liquid cooling |
| Applications: | EV, PHEV,passenger cars |

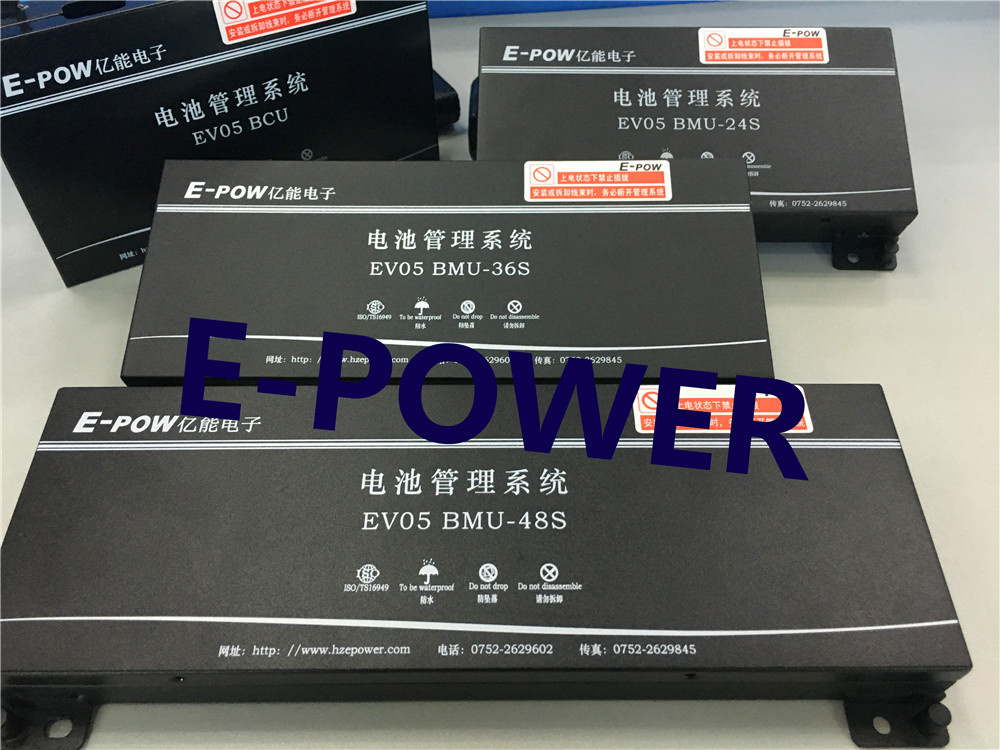

With BMS/EV05 PlatformSupporting solution : Master-slave structure,detection unit can support up to 30,
1-300 battery packs can be supported
Applicable scope of batteies : LMO,LFP,NCM,LTO
Working Voltage range: 12V (6V-18V),24V (12-32V)
Working temperature range: -40ºC~85ºC
Working humidity range : 5%-95%
Basic Function
Detection function: momomer battery voltage,momomer battery temperature,battery pack voltage,battery pack working current
Management module: balanced management, thermal management,charge and discharge managwement
Data compute : battery pack SOC,SOH,SOF,SOE estimation .
Diagnosis function: support UDS diagnosis function, accord with the standard ISO 14229
Bootload function : support customized Bootload development,accord with the ISO 14229 sevice
Agreement.
Communication function : security, data record,self-checking function,malfunction analysis and
Online alarm,etc.
Technical Indicator
Voltage measuring accuracy : <0.5% FSR ( FSR: Full Scale Range)
Temperature measuring range : -40ºC~125ºC
Temperature measuring accuracy : ≤±1ºC ( NTC,@ 0ºC~65ºC )
≤±2ºC ( NTC,@ -40ºC~0ºC )
≤±3ºC ( NTC,@ 65ºC~-125ºC )
Current measuring accuracy: < 1% FSR ( FSR: Full Scale Range )
SOC estimating accuracy: < 5%~8%
Application range : Passenger vehicle, commercial vehicle,logistics car,

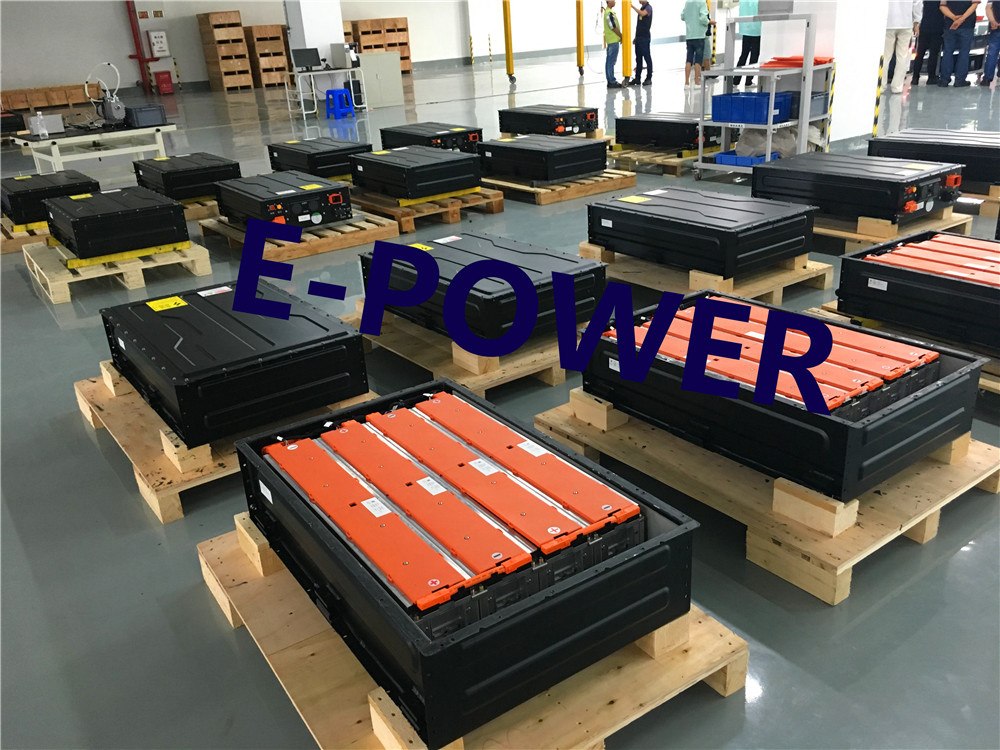

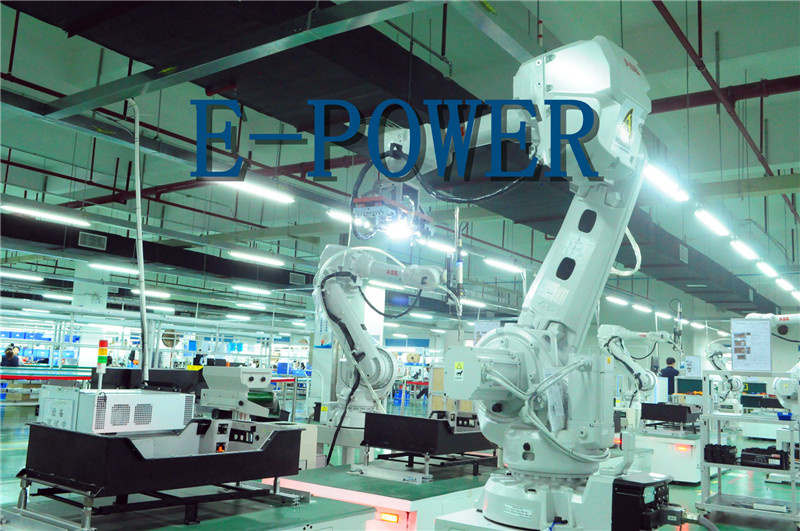

Port machinery, track traffic.E-POWER has advanced battery management system and battery system assembly R&D,Manufacture platform, forms a complete set of advanced production,testing equipment and automated assembly line to realize the mass production. At present, the battery management system has reached 200000 units/year production capacity, At the same time , E-POWER has set up perfect quality management system and the way of sales promotion , guarantee products tohave excellent quality and perfect after sales service .
E-POWER has a strong expert team and a leading research and development platform,Now has more then 200 technical research and development personnels, and obtained at least 300 patents,its products cover most of electric vehicles and batteries. With the new energy institute,the national approved laboratory and batch of advanced test and verification equipment,ensure that the company's products are at the leading level.
About E-POWER

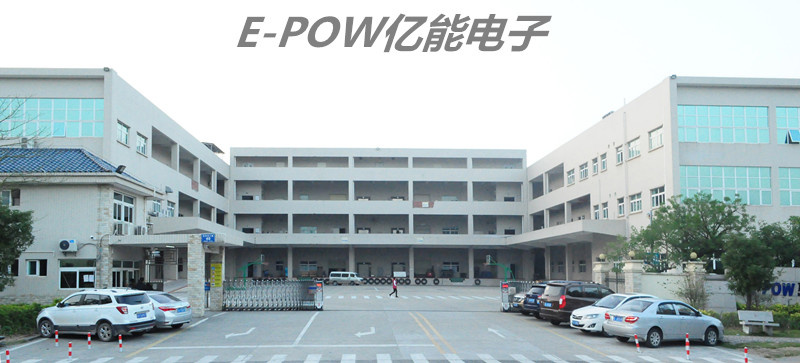

Huizhou E-POWER electronics CO.,LTD was founded in 2006, advocating green , energy -saving and environmental protection as the future development concept, With R&D sales, manufacturing and services as a set, E-POWER is a professional supplier od battery management system and battery system assembly, Leading and with high market share in domestic. E-POWER moved to the new factory in Zhongkai that covers an area of 40000 square meters , equipped with advanced SMT production lines,automatic module lines, at the same time , including advanced test platforms such as charge and discharge, waterproof and dustproof, shock,extrusion,salt fog and so on to meet the production capacity and high quality products output. E-POWER successfully passed the TS16949,ISO14001 and OHSAS18001 certification, more than 400 patents have been applied and more than 300 patents have been authorized. E-POWER has strong technical strength, a number of employees with doctor and master degrees form a professionally technical team,obtained the tile of state High-Tech enterprise, With leading technology and high reliability team, our BMS have been widely used in Electric Bus for many maior international events like the Olympics Games(Beijing 2008),World Expo(Shanghai 2010),Asian Games ( Guangzhou 2010) ,World Ecomomic Forum Summer Davos(Tianjing2010 ).
As well as commercial vehicles and passenger cars of Changan,Great Wall, JAC, Beijing Automotive,GAC,Kinglong, Dongfeng, Foton, and so on .E-POWER has a conducted a wide range of cooperation with many well-know battery companies, such as Samsung,Toshiba,CALE,Guoxuan High-Tech,Lishen and so on.
PROFESSIONAL AND FIRST-CLASS BATTERY MANAGEMENT SYSTEM AND BATTERY ASSEMBLY SUPPLIER.
| Prod Model: |
Battery Pack |
| Type: |
Lithium-Ion Battery Pack |
| Connection Mode: |
Series and Parallel |
Huizhou E-POWER electronics Co., Ltd was founded in 2006, advocating green, energy -saving and environmental protection as the future development concept, With R&D sales, manufacturing and services as a set, E-POWER is a professional supplier od battery management system and battery system assembly, Leading and with high market share in domestic. E-POWER moved to the new factory in Zhongkai that covers an area of 40000 square meters, equipped with advanced SMT production lines, automatic module lines, at the same time, including advanced test platforms such as charge and discharge, waterproof and dustproof, shock, extrusion, salt fog and so on to meet the production capacity and high quality products output. E-POWER successfully passed the TS16949, ISO14001 and OHSAS18001 certification, more than 400 patents have been applied and more than 300 patents have been authorized. E-POWER has strong technical strength, a number of employees with doctor and master degrees form a professionally technical team, obtained the tile of state High-Tech enterprise, With leading technology and high reliability team, our BMS have been widely used in Electric Bus for many maior international events like the Olympics Games(Beijing 2008), World Expo(Shanghai 2010), Asian Games ( Guangzhou 2010), World Ecomomic Forum Summer Davos(Tianjing2010 ).
As well as commercial vehicles and passenger cars of Changan, Great Wall, JAC, Beijing Automotive, GAC, Kinglong, Dongfeng, Foton, and so on. E-POWER has a conducted a wide range of cooperation with many well-know battery companies, such as Samsung, Toshiba, CALE, Guoxuan High-Tech, Lishen and so on.
