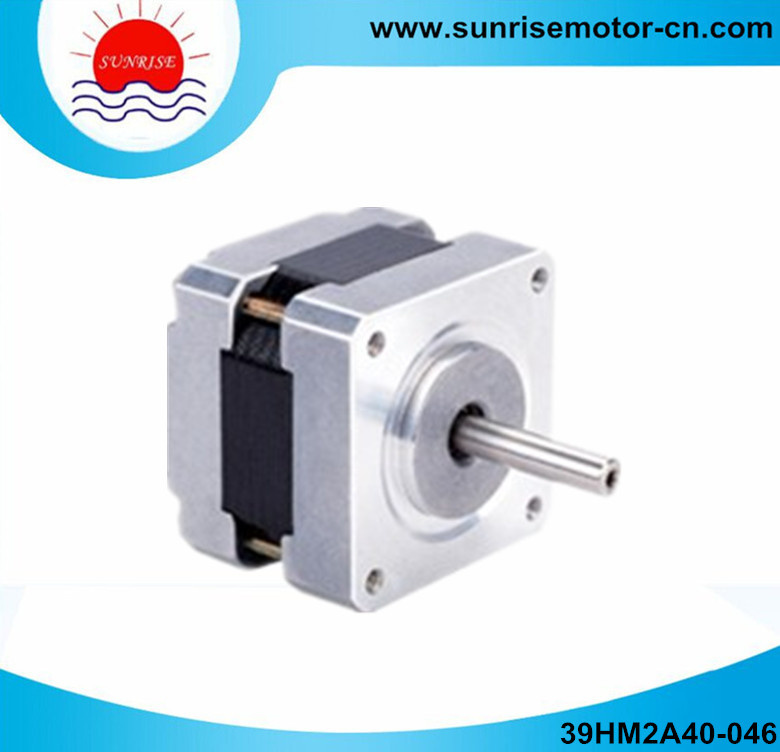

39hm2A40-046 Stepping Motor 0.9° 2-Phase Hybrid Stepper Motor

Changzhou Sunrise Electric Motor Co., Ltd. (Sunrise Motor), was founded in 2004 and is located in Changzhou, China, about 200 km (125 miles) west of Shanghai. With our dedicated staff, we do marketing, sales, product development, engineering, and manufacturing of electric motor and related products to domestic and oversea customers. We provide business and technical supports to our oversea customers through our local offices located in USA, Europe, and South America.

Our products can be categorized to:
-BLDC motors
-Hybrid stepping motors
-PMDC motors
-Motor drivers
-Customized motors based on customers' drawings, specifications and technical requirements
-Value added solutions

These motors can be used for industrial, commercial and residential applications, such as industrial automation and machinery, office equipment, appliances for household, etc.



Product Description
Model:39HM2A40-046
Holding Torque:18N.cm
Current:0.4A
Resistance:30Ω
Motor Length:40MM
Weight:210g



Motor are available with different winding and mechanical modification to meet specific applications.

Model	Holding Torque (N·cm±10%)	Current/Phase(A)	Resistance/Phase (ohms±10%)	Inductance/Phase (mH±20%)	Detent Torque (N·cm)	Rotor Inertia (g-cm 2 )	Length (mm)	Weight (g)
39HM2A40-046	18	0.4	30	26	1.4	30	40	210
