| Prod Model: |
SC Fiber Optic Attenuator |
| Business Type: |
Manufacturer |
| Brand Name: |
OEM/Takfly/Df |
| Attenuation Value: |
3dB/5dB/10dB/15dB/20dB |
| Polishing: |
PC, Upc, APC |
| Mode: |
Single Mode, Multi Mode |
| Return Loss: |
PC >45dB APC>60dB |
| Optical Wavelength: |
1310nm, 1550nm(Sm) |
| Warranty: |
3 Years |
| Lead Time: |
3days |
| Working Wavelength: |
1310nm and 1550nm(Sm) |
| Transmission Medium: |
Single-Mode |
| Number Of Cores: |
Single-Core |
| Ferrule Endface: |
APC |
| Structure: |
Sc Attenuator |
| Light Source TYPE: |
Fiber Optic |
| Connector Type: |
Sc |
Product Description

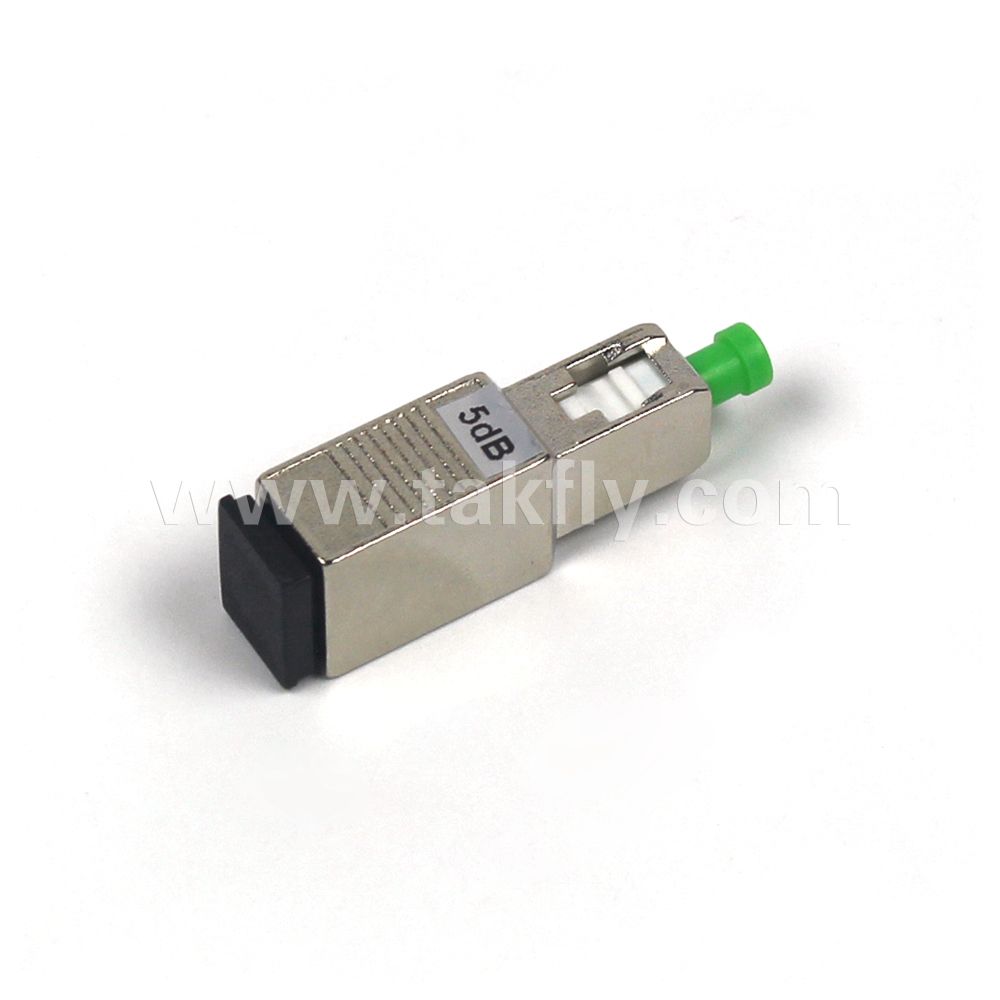

3db/5db/10db/15db/20db SC/APC Metal Male-Female Attenuator
Takfly SC/APC Attenuator family offers high performance of variously fixed attenuation for industrial standard connections. Wide attenuation range, extremely low return loss, polarization insensitive, and excellent repeatability. With our highly integrated design and manufa turing capability, Takfly can also provide customized products to help our customer for better opportunities. Our attenuator complies with industry green initiative such as ROHS. Features- Wide Attenuation Range
- Low Return Loss
- Low PDL
- Polarization Insensitive
- Various connector type
- Highly Reliable
Applications - FTTH, LAN, PON & Optical CATV
- Local ring net
- Optical fiber communication system
- Optical fiber test equipment
- Optical fiber network
Technical Specification | Type | Parameter | UPC | APC | MM |
| Insertion loss | SM:1310nm/1550nm MM:850nm/1300nm | ≤0.3dB | ≤0.2dB | ≤0.3dB |
| Return Loss | SM:1310nm/1550nm MM:850nm/1300nm | ≥55 dB | ≥60 dB | ≥35 dB |
| Duration | >1000 times | <0.1 dB |
| Tensile strength | >100N | <0.1 dB |
| Operating Temperature(ºC) | -40~+85 |
| Storage Temperature (ºC) | -40~+85 |
Why choose Takfly ?
Service
1.Customer's logo: Acceptable
2.General inspection on fixing before packing
3.Third party inspection: Acceptable
Quality Control
All products must go through five checks before manufacturing process
1.Material incoming inspection before production
2.Full check after every individual process finished
3.Full check after production half-done
4.Full check before packing
5.Spots check after production packed before shipping
Advantage
1.17 years experience in manufacturing fiber optic products..
2.Availability of R & D with more than 10 engineers.
3.Available of design and making mold with special molding house.
4.High quality, attractive price and fast delivery(2-7days)
5.OEM, ODM customer designs are also welcomed
6.More than 200 workers
7.Excellent survice
Delivery:
1.Packing: Plastic bag& carton, Neutral packing or as your required.
2.Sample time: 1-3 days after confirm
3.Order lead time: 2-7working days depend on quantity and products.
4.Shipping port: Shenzhen China or HK
5.Shipping term: EXW or FOB
Payment:
Acceptable by T/T, West Union, PayPal and L/C according to your requirement

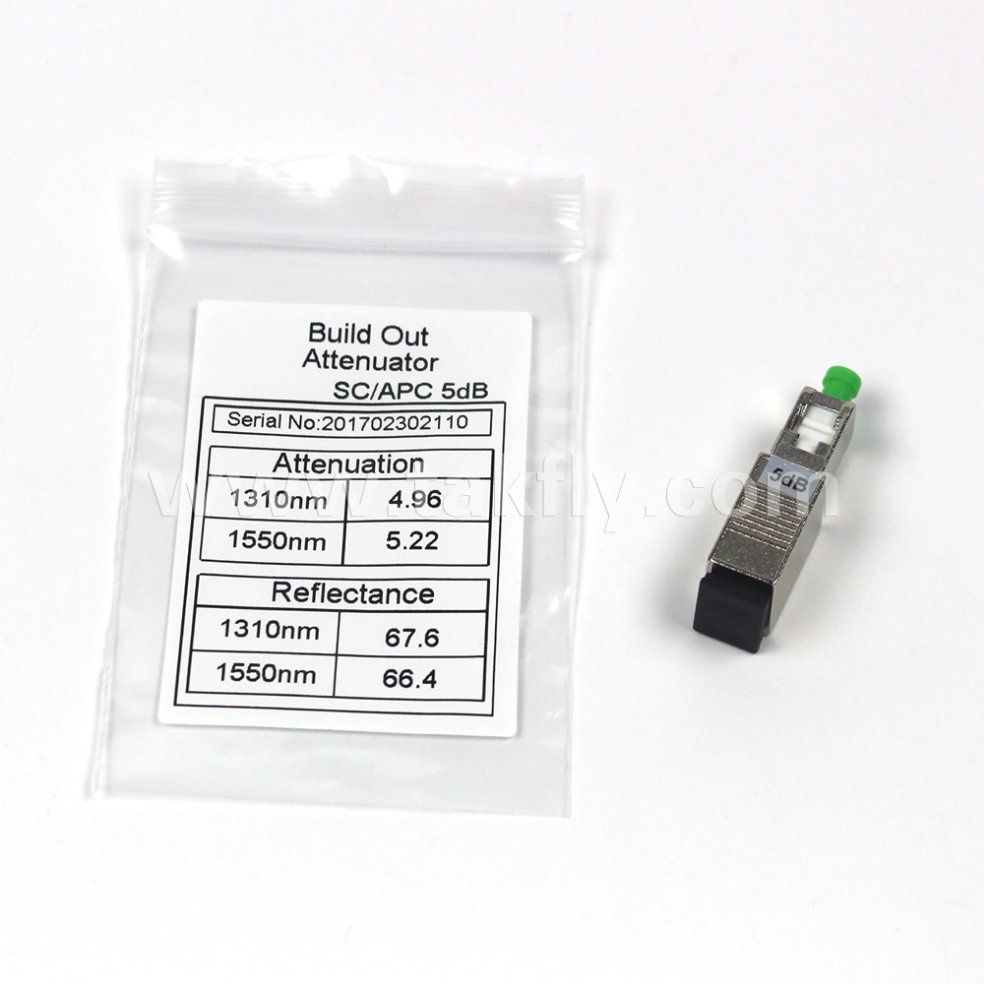

Packaging
1. All products will be packed in double corrugated carton , so the product can get effective protection to avoid damage.2. Packaging according to customer requirement Shipping
1. We shipping via DHL / FedEx / TNT/etc for samll orders. Yow can get your packages in about 3-5 days all over the world.2. For big order, we will arrange Air cargo for your shipment, so it will be much cheaper than DHL, UPS etc.3. You can choose your own shipping agent, we will provide good cooperation for it. After-Sales Service
1. TAKFLY can provide detail documents and remote help for device installation and configuration.
2. Warranty: 2 year. ( After the quality guarantee period began to charge appropriate maintenance service fee.)
3. TAKFLY promises goods enjoy full return due to quality problem since goods delivered within 7 days or 15 days , returned goods must keep original state and it's accessories are complete.
