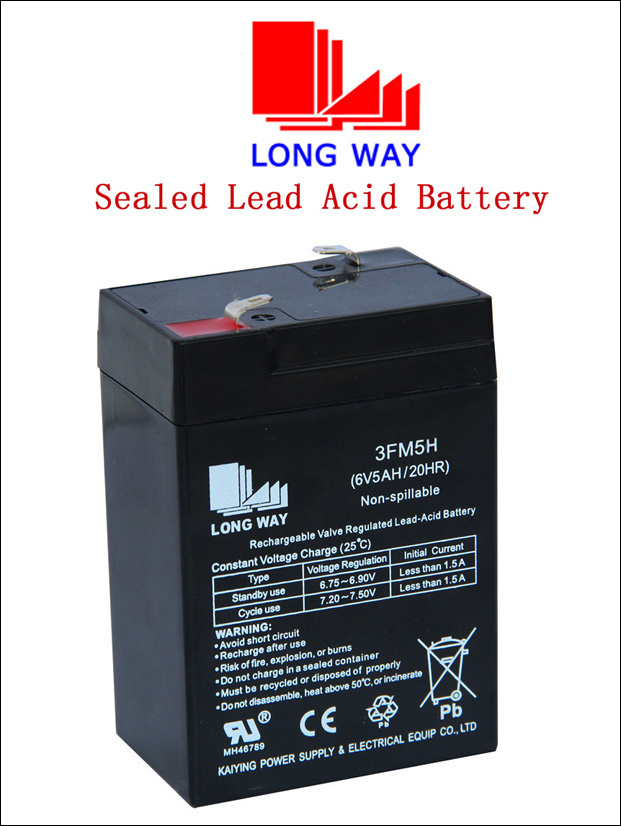

3FM5h High Power Battery for Jump Starters with Good Quality

6V5ah VRLA storage battery for weighing scale

LONGWAY® Standard battery is design for a general purpose by KaiYing Power.
3FM5 is a general purpose battery up to 5 years in star service or more than 260
cycles at 100% discharge in cycle service. As with all LONGWAY® batteries, all are
rechargeable highly efficient, leak proof and maintenance free.

Specifications:
Normal Voltage 6V
Capacity 5Ah@20Hr-rate to 1.75V per cell@25ºC
Weight Approx.(0.82±3%)kg(1.80lbs)
Maximum Discharge Current 50A(5sec)
Internal Resistance Approx. 24mΩ full charged @25ºC
Operating Temperature Range Discharge: -20ºC~60ºC
Charge: 0ºC~50ºC
Storage: -20ºC~60ºC
Nominal Operating Temperature Range 25ºC±3ºC
Float Charging Voltage 6.75~6.90VDC/unit Average @25ºC
Maximum Charging Current 1.5A
Equalization and Cycle Service 7.20V~7.50VDC/unit Average @ 25ºC
Self Discharge LONGWAY Valve Regulated Lead Acid (VRLA) batteries can be stored
for more than 6 months at 25ºC. Self-discharge ratio less than 3%
per month at 25ºC. Please charge batteries before using.
Terminal F1(0.187)/F2(0.250)
Container Material ABS(UL94-HB)
*Flammability resistance of (UL94-V0) can be available upon request

Storage Series
LONGWAY Storage series batteries(S Type, "s"behind the model name stands for Storage energy application).by combining the newly develop namo gel electrolyte with high density paste. LONGWAY create offers high recharge efficiency at very low charge current which is very common at renewable energy systems. The acid stratification is highly depressed by adding of gel. This range battery is highly suitable for the energy storage for renewable energy such as PV and wind turbine power systems.

General Features
12 years design life at floating conditions
Long life expectancy of 5 years at renewable energy system
Wide temperature range from -20 to 60C
Nano gel electrolyte eliminate the acid stratification and prolong cycle life
Round trip efficiency as high as 85%
Thick positive flat design with high Tin Low Ca alloy and high density paste
Low self-discharge rate and long shelf life (1 year at 25C)
Excellent deep discharge recovery capacity

Applications
Photovoltaic system
Hybrid power system
Renewable energy system
Power storage for rural area
Telecom base station

If get interest, just contact me freely.



6V5ah VRLA storage battery for weighing scale
