3G Vehicle GPS Tracker with Fuel Sensor Two Way Location
| Price: |
US $ 60-68/Piece |
| Trade Terms: |
FOB |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union,Paypal,Money Gram |

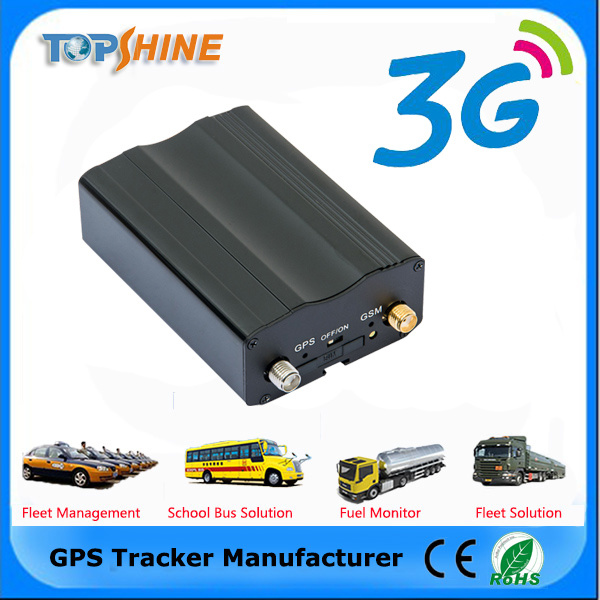

3G Vehicle GPS Tracker with Fuel Sensor Two Way Location Products Overview GPS tracker VT200W is advanced terminal with GPS positioning and GSM connectivity, which is able to get device coordinates and other data and transfer them via GSM network. This device is perfectly suitable for applications where location acquirement of remote objects is needed. So you can track your remote objects (trucks, cars etc.) quickly and easily.
In case of losing connection GPS tracker can store more than 10,000 records, and once the connection is established the device will send stored data via GPRS. So you won't lose your data(coordinates, sensors data and etc.)
VT200 also plus a newest car alarm solution --- Smart phone Reader. This is as RFID reader, it can connect to your phone as detector. When you with phone leaving the car, the system will be armed automatically, if someone opens the door/ignition/moving your car, system will send alert, you will get alert notification on your phone, immobilizer scenario which enables to start engine only after reading your phone. When you walk close to the car and your phone is recogized, system will be disarmed.
Application
* Vehicle tracking & security
* Fleet Management
* Smart RFID auto driver identification
* Anti theft
* Anti jamming
Specification
| Items | Specifications |
| Dimension | 75*54*25mm |
| Weight | 123g |
| Input voltage | DC 9V~24V/1.5A |
| Back-up Battery | 650mAh/3.7V |
| Power Consumption | 65mA standby current |
| Operating Temperature | -20°C~55°C |
| Humidity | 5%~95% |
| Battery Work Time | 33 hours in power-saving mode and 8 hours in normal mode |
| LED | 2 LED lights to show GPS, GSM status |
| Button | 1 SOS and 1 power on/off |
| Microphone | Default |
| Memory | 2M Byte |
| Sensor | Motion sensor |
| GSM Frequency | Module E:
UMTS/HSDPA 900/2100MHz
GSM 900/1800MHz
Module A:
UMTS/HSDPA 850/1900MHz
GSM 850/900/1800/1900MHz Module T: 850/2100MHz |
| GPS Chip | Latest GPS SIRF-Star III Chipset |
| GPS Sensitivity | -161dB |
| Positioning Accuracy | 10meters, 2D RMS |
| I/O | 3 Input
1 Analog Input Detection
2 Output
1 USB port |
| Packing Measures: |
|
| Neutral | Dimension (mm) | Weight (KG) | Capacity |
| Box | 225x160x550 | | 1 set |
| Carton | 470x340x310 | 14 | 20 sets |
Feature &Function
| Support 3G network | Support fuel sensors, monitor petrol level (Optional) |
| GPS tracker + RFID car alarm | Cut off engine remotely |
| GSM jamming detection, anti jamming | With 850mAh inbuilt rechargeable battery |
| Ublox7 GPS industrial high sensitive module | Two way tracking, GPS/intelligent GSM positioning |
| Multiple Geo-Fence Setting,Movement Alert,overspeed Alert,tow alert,main power cut off alert etc | Powerful and multifunctional tracker for comprehensive Fleet management |
| Inbuilt 2MB data logger for saving position when in GSM/GPRS blind area | Get real time vehicle position address street name /Google map link by SMS |
| Smart phone reader for anti-theft (Optional) | Crash sensor for accident alarm (Optional) |

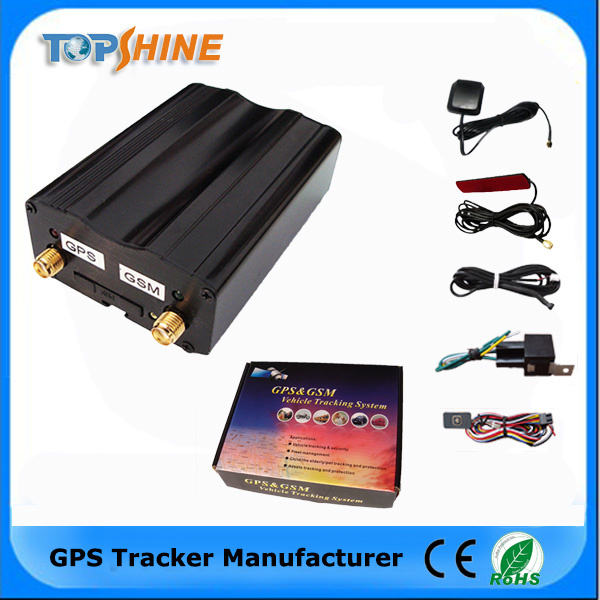

Package & AccessoriesVT200 unit: 1 unit
Wire : 1 piece
Relay: 1 piece
Microphone : 1 piece
SOS button :1 piece
GPS antenna :1 piece
GSM antenna : 1 piece

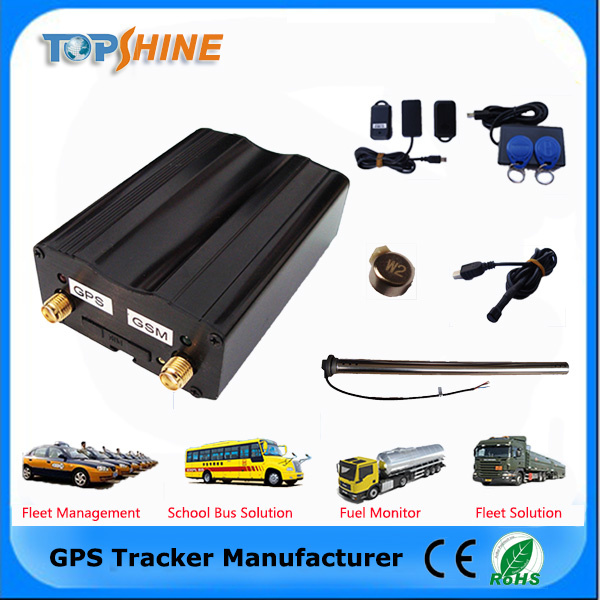

Optional Accessoires:
* Fuel Sensor
* Smart Phone Reader
* Crash Sensor
* Temperature Sensor
* USB configure Cable Welcome to test our free tracking software
PC: www.track-car.com
Mobile Phone: http://www.track-car.com/M
User name: hongkong
Password: 123
Our advantage
* Provide 2 free Tracking Platfrom (PC base & Android APP) lifelong. No charge.
* 2 years warranty
* All of our products have CE & RoHS & SGS certification
* Supply OEM&ODM service.
* Our engineer team could customize your personality tracking platform
* Professioal R&D team provide Customization and after-sale service lifelong .
* 100% made of industrial-grade component,GSM module have certified(CE2200)and with legal IMEI code.
Payment & Shipment:
Payment Term: PayPal /western union /TT
Shipping Term: DHL /Fedex /TNT /ARAMEX/EMX
Lead time: Samples within 1 days of delivery.bulk production within 5-7days of delivery.

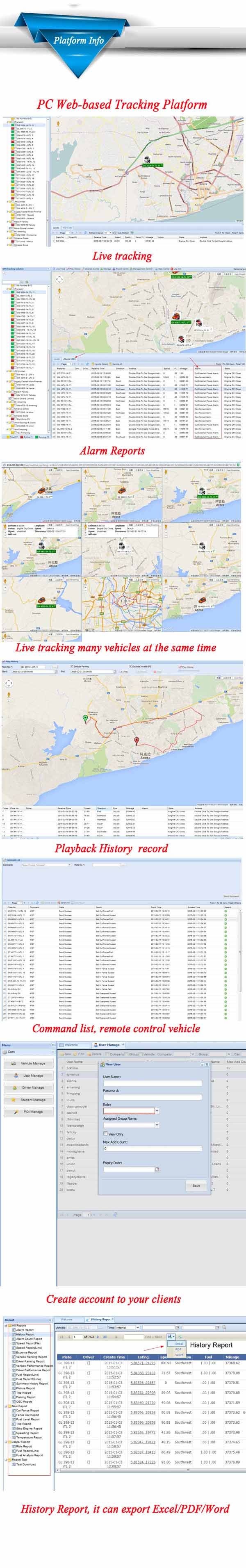

GPS tracking platform information
Inquiry Now!!
| Prod Model: |
3G-VT200 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size (mm): |
90*53*27mm |
| Input Voltage (V DC): |
9 ~ 36 |
| Backup Battery (mAh): |
850 |
| GSM Module: |
M35 |
| Data Logger: |
2MB |
| Inputs: |
3 |
| Outputs: |
2 |
| Analog Port: |
1 |
| Weight: |
92 |
| Carrier Frequency: |
UMTS/HSDPA 850/900/1900/2100MHz |
