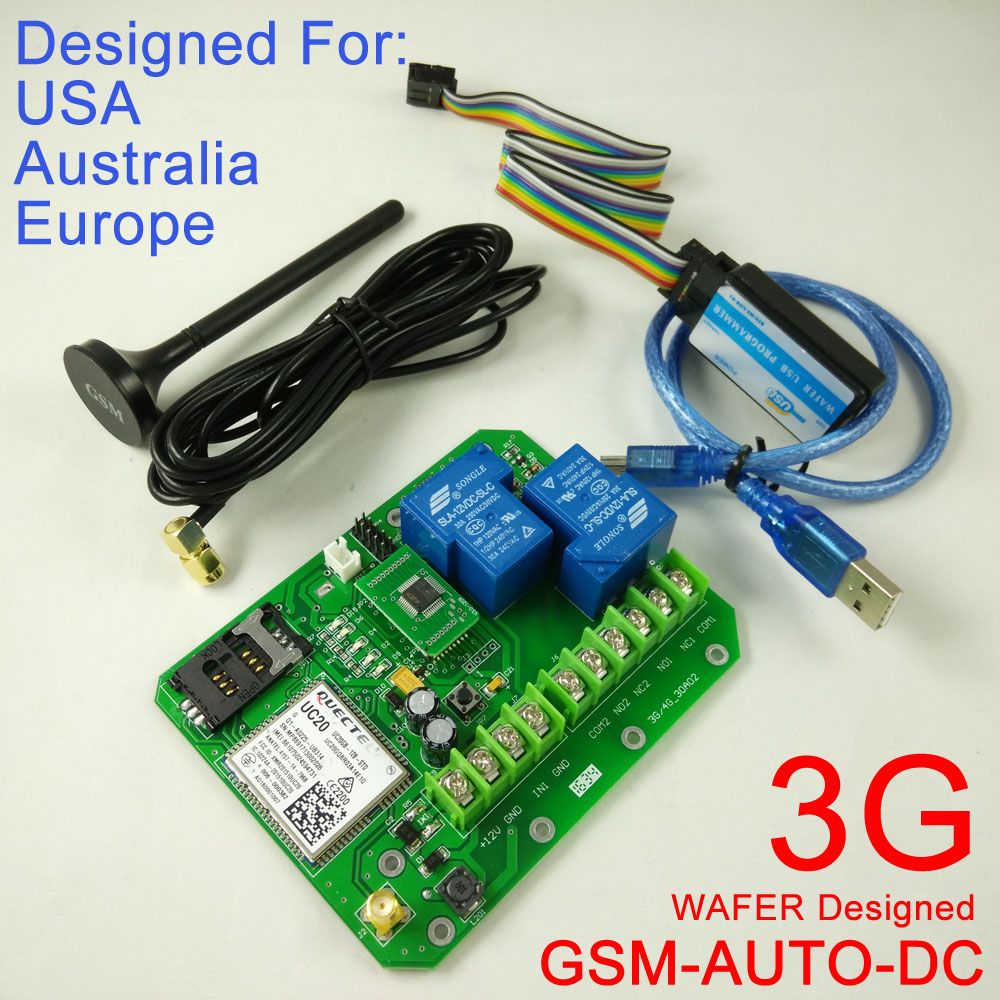

GSM-AUTO-3G GSM / 3G relay remote switch
Double channel big power output RELAY Remote controller
wafer have 4G , 3G and GSM version GSM-AUTO Controller4G Remote control board, Working with 4G/3G and GSM cell phone network
3G Remote control board, Working with 3G and GSM cell phone network
2 Relay channel,each at 220V/30A power
Water-proof box for outside project

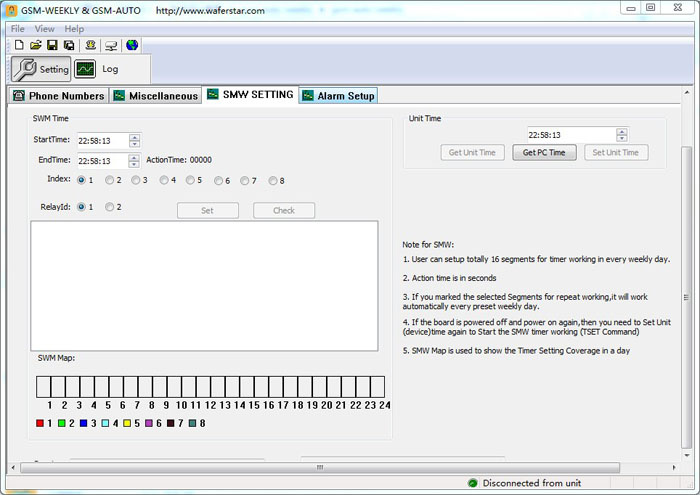

PC Program adapter and software included
Power supply with DC12V
All functions compatible with GSM-AUTO
On boar backup battery for power off alarm
Working band for USA:
UMTS: B2/B4/B5
GSM: 850/1900MHz
FDD LTE: B2/B4/B5/B12/B17
Working band for Europe:
FDD LTE:B1/B3/B5/B7/B8/B20
UMTS:B1/B5/B8
GSM:850/900/1800/1900MHz
We do other customized function for our customers
We can customize the 3G,4G and GSM Remote controller
The GSM-AUTO is a wireless remote On/Off switch that can be controlled through a connection to the GSM cell phone network. The connection to the GSM cell network is accomplished by purchasing a SIM card and Pay-As-You-Go (PAYG) plan from your local wireless provider. Once the SIM card is installed in the SIM card holder on the top of the GSM module of your GSM-AUTO will have its own unique telephone number.
The unit is activated by an incoming call to its cell phone number. The unit cannot answer a voice call but in sensing the call its logic will activate one or both of the output relays in a pre-programmed sequence. Because the unit doesn't answer the call, the activation of the relays does not incur any call charges to the PAYG plan or to the caller.
Alternately, the individual relays can be activated by sending SMS text messages to the unit's phone number. Similarly, the unit is programmed by sending specific SMS text commands.
The GSM-AUTO unit controls 2 independent switches. You can therefore control 2 separate devices from one unit. An example would be in a aircraft hangar where the battery charger and engine pre-heater are turned on in sequence to prepare an aircraft for a flight
GSM-AUTO 4G Remote control box Features:
- 4G Design - will work anywhere in the world with 4G,3G and GSM Net
- Secure caller ID allows controlled access of up to 99 authorized users, the users telephone numbers are added to the white list, only the numbers in the white list are able to activate the GSM-AUTO, users can be added and deleted as required using text messages
- There are no call costs incurred when calling the unit, it will recognise an authorized telephone number calling it and reject the call without answering

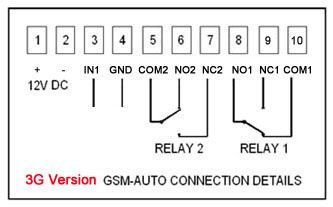

- The GSM-AUTO has two independent relays with normally open and normally closed contacts, these can be programmed to switch on for between 1 second and 18 hours, in addition a delay time between relay 1 and 2 switching can be set, programming is achieved by sending text messages to the GSM-AUTO, once programmed you simply call the unit to activate the relay operations already programmed
- The programmed operation can be temporarily overridden and the relays switched on for up to 18 hours by sending the unit a text message command, a confirmation text will be returned when the relay(s) is switched on and another when it is switched off
- The relays can be permanently switched on or off by sending the GSM-AUTO
- a text message, again a confirmation text will be returned
- An on board clock and 24 hour timer with 8 time segments for each relay enables the relays to be switched on and off for a set time, for example relay1 switches on at 0600 (6am) and off at 1900 (7pm), once set the timer function repeats every day until reset. The caller ID and override functions are disabled when the 24 hour timer is active.
- On board battery for power off alarm
Applications:
Applications include the remote control of heating in holiday homes, lighting, engine pre-heaters, aviation engine heaters, irrigation systems, water well pumps, pumping stations, cabin heaters, resetting of remote servers, arming and disarming security systems, access control of gates and garage doors.

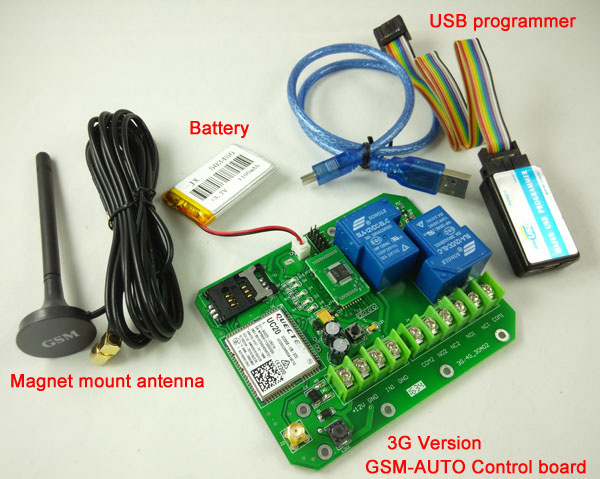

Wafer GSM-AUTO USB programmer
GSM Magnet Mount Antenna ( Specially designed for Water proof type GSM remote control box)
