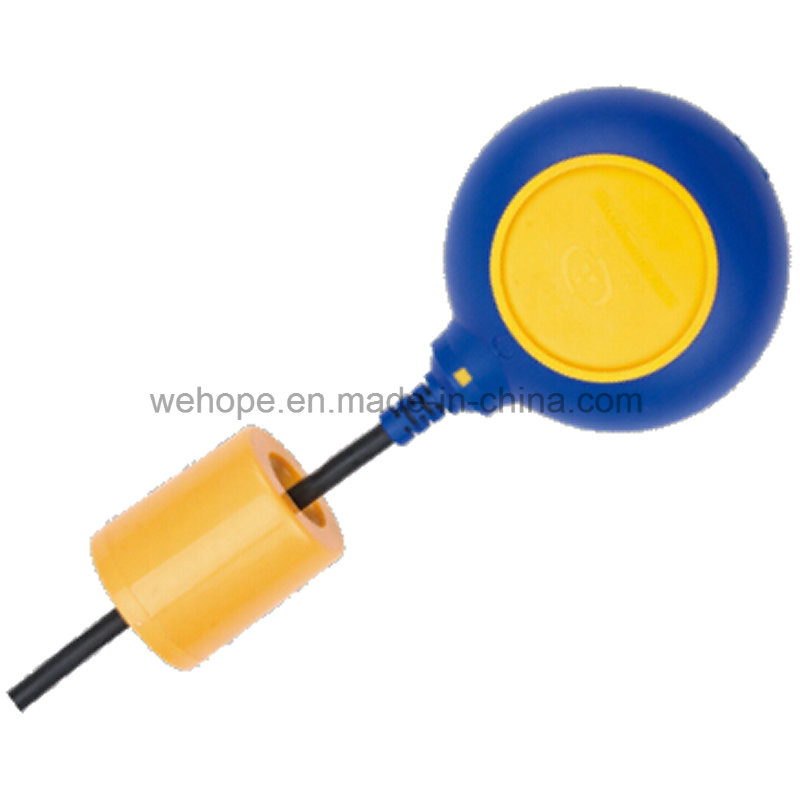

3m Float Switch Liquid Fluid Water Tank Level Controller

Name: 3m Float Switch Liquid Fluid Water Tank Level Controller
Brand: all-electronics-online.com
SKU: 839096345
Availability: InStock
Rating: 4.4 (61 reviews)

Price:	US $ 1.95-2.05/Piece
Min Order:	1000/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

TECHNICAL DATA
1.Rated voltage: AC 110/220V
2.Max.Current: AC 16(4)A
3.Frequency: 50/60Hz
4.Max.Using Temperature: 60ºC
5.Protection Degress: IP68
Descriptions

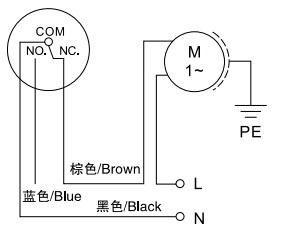

1.Auto-fill-water modes

Connect the control's blue line to electric pump,black line is connected to zeroline, brown line can not be connected and should be insulated.
2. Auto-drainage and lack-water protection modes

Connect the control's brown line to electric pump,black line is connected to zeroline,blue line can not be connected and should be insulated.
3. Outline dimension

Prod Model:	HP-M15
Color:	Blue,Red,Yellow,Black
Structure:	Closed-Loop
