Product Description
CAM1-100M MCCB1. Application CAM1 series moulded case circuit breaker ( named as MCCB in the following) is a new type breaker which is applied with rated insulating voltage 800V (500V for CAM1-63), rated working voltage 690V for CAM1-63) and used for infrequent exchange and startup in AC (60)Hz condition. The MCCB is of protecting function in overloading, short-circuit, and under voltage situation to protect circuit system and power device from damage.
The MCCB can be devided into L; M; H types according to their rated limit short-circuit breaking capacity.
The MCCB is advantageous for its compact body, high breaking capacity ( some even on flying arc), short arc-casting and superior aseismatic function.
The MCCB has function of insulation.
The product complies with IEC60947-2, GB14048.2

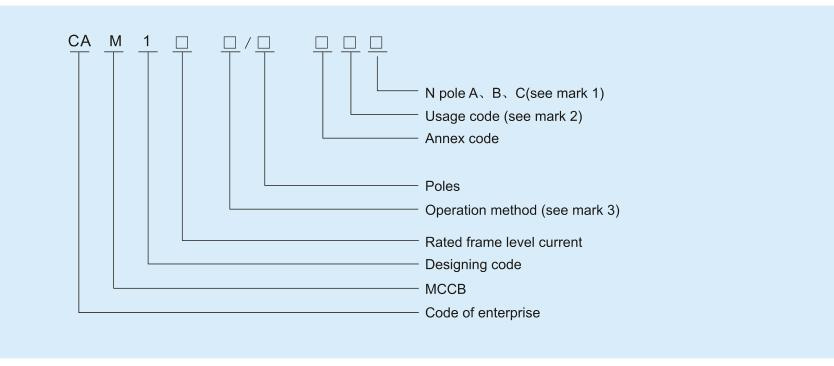

2. Type code and signification
1) N-P type from 4-P has 3 types
A type: N-P without current tripper (normally open)
B type: N-P withour current tripper working together with other 3P
C type: N-P without current tripper working together with other 3P
2) No code for distribution type breaker,2 for motor-protection type
3) No code for distribution type breaker,2 for motor-protection type
4) It can be divided into L (common) type,M (standard) type and H (high) type.L type with connecting current equal to relevant frame level and M type with breaking capacity equaling to their frame level according to their rated limited short-circuit braking capacity(Icu)
3. Main technique data of MCCB

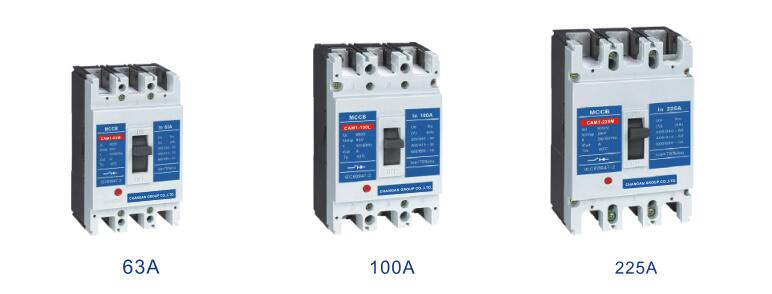

| Type | CAM1-63L/CAM1-63M | CAM1-100L/CAM1-100M | CAM1-225/CAM1-250 |
| Rated frame level current Inm(A) | 63 | 100 | 225 |
| Rated current In(A) | 10,12,16,20,25
32,40,50,63, | 16,20,25,32,40,
50,63,80,100 | 125,160,180,200,225,250 |
| Rated insulated voltage Ui (AC V) | 500 | 800 | 800 |
| Rated impulse stand voltage Uimp(V) | 8000 | 8000 | 8000 |
| Rated working voltage Ue (AC V) | 400/415 | 400/415 | 400/415 |
| Poles | 3 | 4 | 3 | 4 | 3 | 4 |
| Rated limited short circuit breaking capacity level | L | M | L | M | L | M | L | M | L | M | L | M |
| Rated imited short circuit breaking capacity Icu(KA) | 400/415V | 20 | 30 | 20 | 30 | 30 | 50 | 30 | 50 | 35 | 50 | 35 | 50 |
| Rated working short circuit breaking capacity Ics(KA) | 400/415V | 15 | 22.5 | 15 | 22.5 | 22.5 | 37.5 | 22.5 | 37.5 | 26.25 | 37.5 | 26.25 | 37.5 |
| Operation characteristic (Times) | Connected | 2000 | 2000 | 2000 |
| Break | 10000 | 10000 | 10000 |
| Outlook dimension | L | 135 | 150 | 165 |
| W | 78 | 103 | 92 | 122 | 107 | 142 |
| H | 73.5 | 81.5 | 72 | 88 | 86 | 103 |
| Weight (g) | 735 | 846 | 1464 | 1952 | 1257 | 1493 | 1493 | 1900 | 1714 | 2014 | 1900 | 2014 |
| Arcing distance (mm) | 0, ≤50 | 0, ≤50 | 0, ≤50 |
