3phase VFD, VSD for Fan and Water Pump Motors, Voltage Regulator AC Drive
| Price: |
US $ 50-115/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal,Money Gram |
| Prod Model: |
FC155 Series |
| Output Voltage: |
380VAC |
| Output Current: |
2.3~900A |
| Control Mode: |
V/F,SVC.Fvc |
| Output Power: |
0.75~500kw |
| Input Voltage: |
220V/380V/440V |
| Output Frequency: |
0~600Hz |
| Application: |
High Frequency Converter Transducer |
| Principle Of Work: |
V/F Control Transducer |
| Switch Mode: |
PWM Control |
| Main Circuit Type: |
Voltage |
| Output Type: |
Sigle & Three Phase |
| Brand: |
Janson Controls |
Product Description

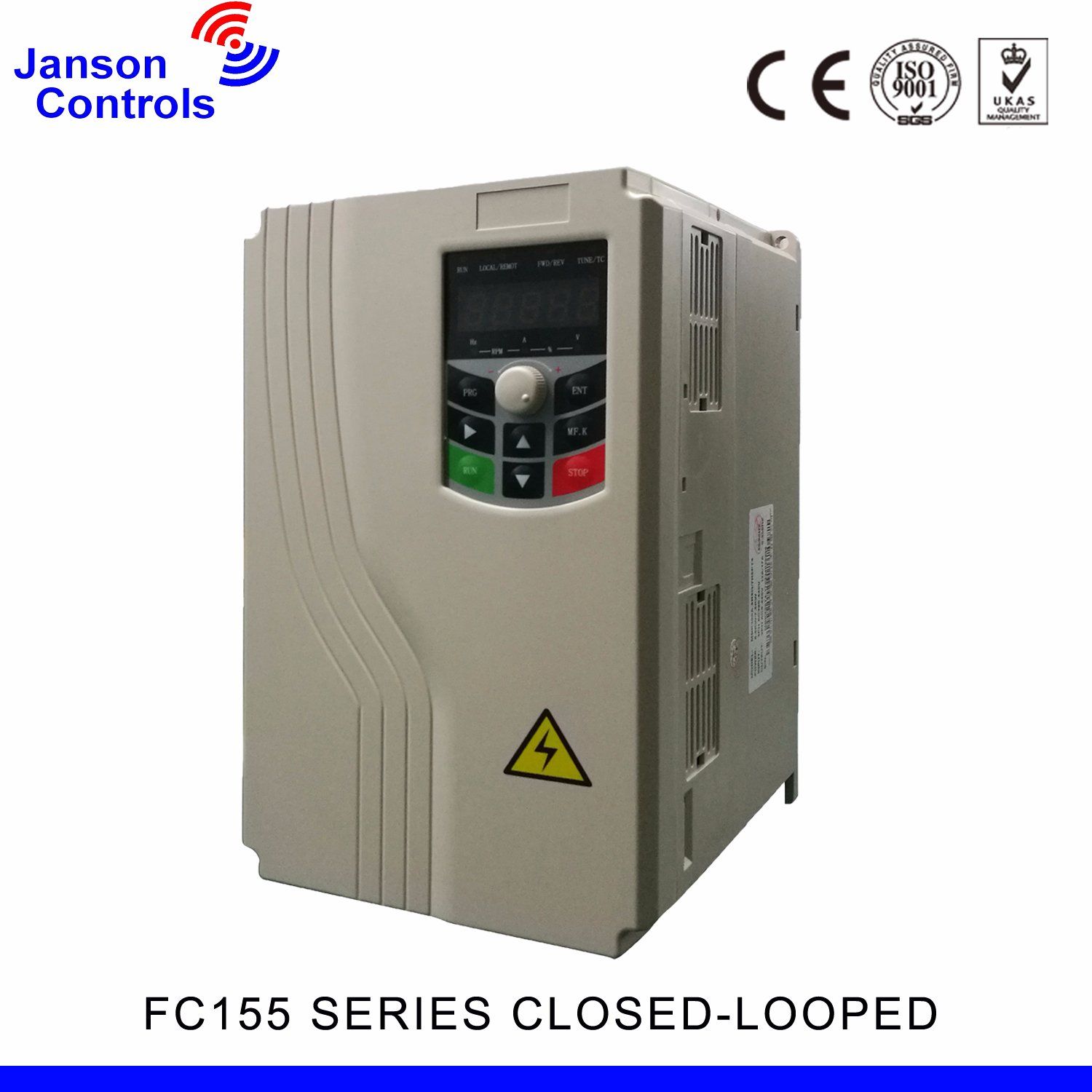

FC155 series frequency inverter has the following features:
FC155 Series AC drive Features
Multiple Control Modes:
*Supports multiple control modes: vector V/F control, sensorless vector speed control,
sensorless vector torque control, sensor vector speed control and sensor vector torque
control .
Advanced Vector Control Algorithm:
*The optimized VF control and sensorless vector control is more stable at low speed,
more powerful in the ability of low frequency torque output and with better dynamic
response and both the sensorless vector and sensor vector mode support speed
control and torque control.

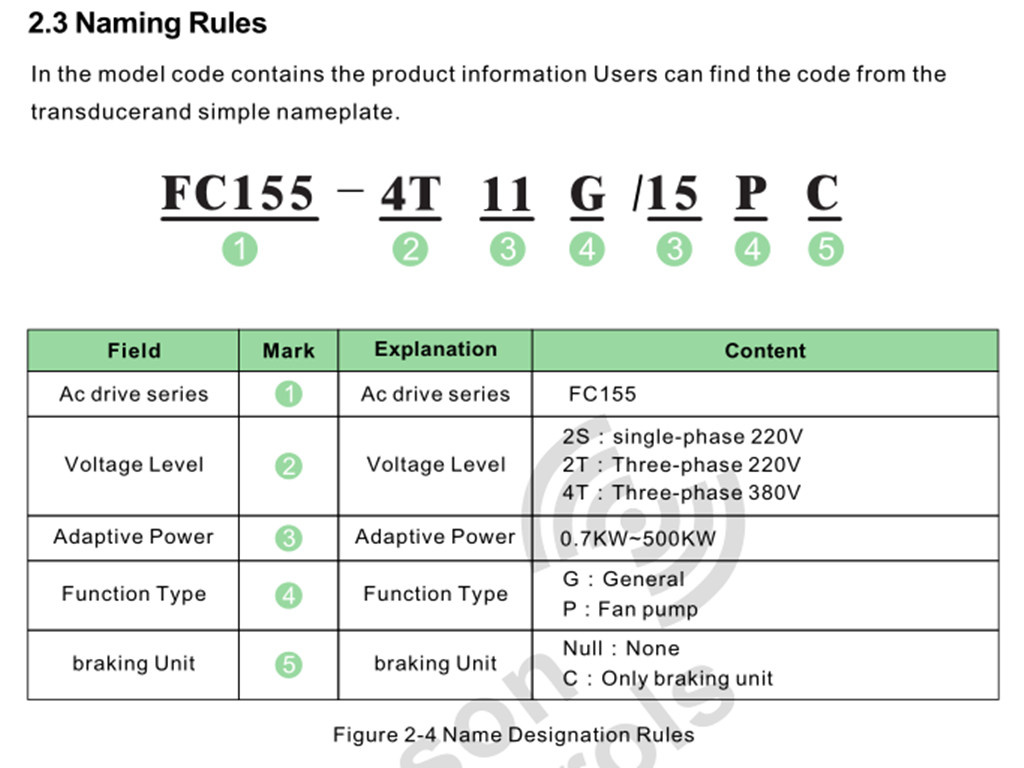

FC155 Series Frequency Inverter Model and Datasheet: ( voltage Range: -15%~20%) | Model | Adoptable Motor(kw) | Input Current(A) | Output Current(A) | Size&Weight |
| Three-phase 220V, 50/60Hz, also can be used in Single-phase |
| FC155-2T-0.7G | 0.7 | 5 | 3.8 | 240*180*220
2.5kg |
| FC155-2T-1.5G | 1.5 | 5.8 | 5.1 |
| FC155-2T-2.2G | 2.2 | 10.5 | 9 | 330*235*270
4.5kg |
| FC155-2T-4G | 4 | 14.6 | 13 |
| FC155-2T-5.5G | 5.5 | 26 | 25 | 410*305*295
9.5kg |
| FC155-2T-7.5G | 7.5 | 35 | 32 |
| FC155-2T-11G | 11 | 46.5 | 45 | 540*420*360
20kg |
| FC155-2T-15G | 15 | 62 | 60 |
| FC155-2T-18G | 18 | 76 | 75 | 650*470*490
30kg |
| FC155-2T-22G | 22 | 92 | 91 |
| FC155-2T-30G | 30 | 113 | 112 | 740*575*490
45kg |
| FC155-2T- 37G | 37 | 157 | 150 |
| FC155-2T-45G | 45 | 180 | 176 | 740*575*570
58kg |
| FC155-2T-55G | 55 | 214 | 210 |
| FC155-2T-75G | 75 | 307 | 304 | 940*625*620
99kg |
| Three-phase 380V, 50/60Hz | |
| FC155-4T-0.7G | 0.7 | 3.4 | 2.1 | 240*180*220
2.5kg |
| FC155-4T-1.5G | 1.5 | 5 | 3.8 |
| FC155-4T-2.2G | 2.2 | 5.8 | 5.1 |
| FC155-4T-4G | 4 | 10.5 | 9 | 330*235*270
4.5 |
| FC155-4T-5.5G | 5.5 | 14.6 | 13 |
| FC155-4T-7.5G | 7.5 | 20.5 | 17 |
| FC155-4T-11G | 11 | 26 | 25 | 410*305*295
9.5kg |
| FC155-4T-15G | 15 | 35 | 32 |
| FC155-4T-18G | 18 | 38.5 | 37 |
| FC155-4T-22G | 22 | 46.5 | 45 | 540*420*360
20kg |
| FC155-4T-30G | 30 | 62 | 60 |
| FC155-4T-37G | 37 | 76 | 75 | 650*470*490
30kg |
| FC155-4T-45G | 45 | 92 | 91 |
| FC155-4T-55G | 55 | 113 | 112 | 740*575*490
45kg |
| FC155-4T-75G | 75 | 157 | 150 |
| FC155-4T-90G | 90 | 180 | 176 | 740*575*570
58kg |
| FC155-4T-110G | 110 | 214 | 210 |
| FC155-4T-132G | 132 | 256 | 253 | 940*625*620
99kg |
| FC155-4T-160G | 160 | 307 | 304 |
| FC155-4T-200G | 200 | 385 | 377 | 940*625*620
167kg |
Products Construction,
Use effectEffect 1
FC155 series inverter output low frequency jog aspect is more straightforward, most inverter can overcome theshortcoming of low frequency torque, both to protect the electrical equipment, and bring significant economic benefits;
Effect 2
Smooth soft start function FC155 series inverter device to reduce the impact on the grid, superior protection features greatly improve the process equipment, improve product quality;
Effect 3
FC155 series inverter good thermal design, long-term work to fully meet the circular knitting machine in a high temperature environment
Note: Please go our website or Contact Me for detailed Size Information. Our website is www.jansoncontrols.comOur Service: 1. Can I get some samples?
Yes, Sample order is available for quality check and market test .But you have to pay for it .
2. What's delivery time?
It usually takes about 3-5 working days for small order and 10-15 days for big order .
3. What's your payment terms?
We usually accept all kinds of payment terms .Such as T/T,L/C, Western Union.Cash.
4. What's your warranty terms?
We offer 24 months warranty time .
5. Do you have the products in stock?
Depends on your request ,We have standard models in stock. Some special products and big order will be newly produced according to your order .
6. Can I mix different power in one container .
Yes ,Different models can be mixed up in one container ,even one order .
7. How does your factory do the quality control?
Quality is priority ,we always attach the importance to quality control from the beginning to the end of the production .every product will be fully assembled and carefully tested before packing and shipping .
8. Can you sell spare parts ?
If you are using our products .we can sell spare parts to you . But we couldn't sell the half-finished products.
9.I would like to know if you have a partner for export?
Yes .We have the right to export and can sell electrical product all over the world..
10. Can you make the inverter and soft starter control boards (switchgear)?
Yes. We have a lot of experience to design frequency inverter and soft starter cabinet according to your request,and our factory can do soft starter by ourselves.11.Can the inverter connect with computer?Yes .All inverters have built-in RS485 port .and support Modbus communication protocol. 12.How can I trust you ?Our company has been audited and approved ISO9001,CE.CCC. Assessment report will could be sent to you by e-mail. and we will take all the responsibility once problem during warranty time.
Note: For more information please go to our website www.jansoncontrols.com
Located in Shenzhen, China, Janson Controls Company Limited is a factory that obtained ISO9001: 2008 and CE certificate, we are highly skilled in focusing on green energy of harmonic drive, including high frequency inverter, low voltage inverter, and different variable frequency inverter for general purpose.
As a council member of Inverter Branch of China Electric Appliance Industrial Association, all of our software and hardware are developed by its own D&R, and the main components are from top-brands in the world, e. g. IGBT from Infineon of Germany, capacitor from NCC of Japan, rectifier bridge from Microsemi, PCB board from TDK of Japan, and fan from NAIS of Taiwan and also NIDEC of Japan, MCU from DSP of IT in USA, MOS Tube from ST etc.
Our products mainly serve for Equipment Manufacturing, Energy-saving&Environmental protection, and New energy field, and are widely used in elevator, crane, machine tool, metal products, wire and cable, plastic cement, printing packaging, textile chemical fiber, construction materials, metallurgy, colliery, civicism and auto industry.
With timely service and superior quality, we have gained high reputation for its applicability and reliability in this industry, together with competitive price make us develop a word-wide market network and our products have been exported to southeast Asia, Russia, Europe, Pakistan and many other countries, and what we offer is not only products but also solutions and services to meet all customers' needs.
Janson is strived to become the best reliable supplier of automated products, our mission is to improve the industrial automation application, and our value is to establish a human-centric development platform.
A warm welcome is extended to visit Janson Controls when you are visiting China.
