Prod Model: |
YF-24-C03PE-13-002 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Certification: |
UL, CE, RoHS, CCC, ISO9001 |
Cable Specification: |
2.5mm-4mm2/14-12AWG |
Diameter Range: |
Od8-12mm |
Conductor: |
Gold Plated |
Operating Voltage: |
500V |
Waterproof Level: |
IP65 |
MOQ: |
100PCS |
Gender: |
Male |
Application: |
Microwave |
Product Description

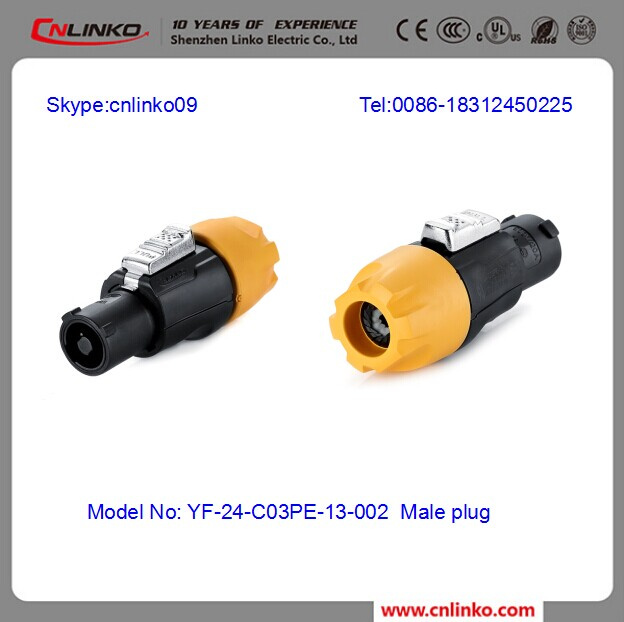

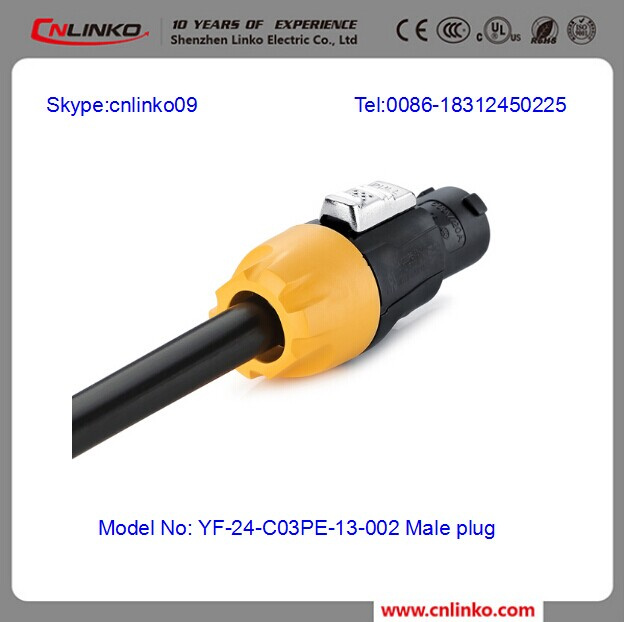

3Pin Outdoor Powercon Plug and Socket Connector for LED Screen
Features:
Power-in and power-out versions with different keying to avoid the possibility of intermating
Fast and easy twist lock latching system
Extremely robust and reliable
Ergonomic design
Unique fashion design
Improved kink protection by two-component bushing
New bushing design avoids unintended opening
UL, CUL,CCC,ROHS,ISO9001

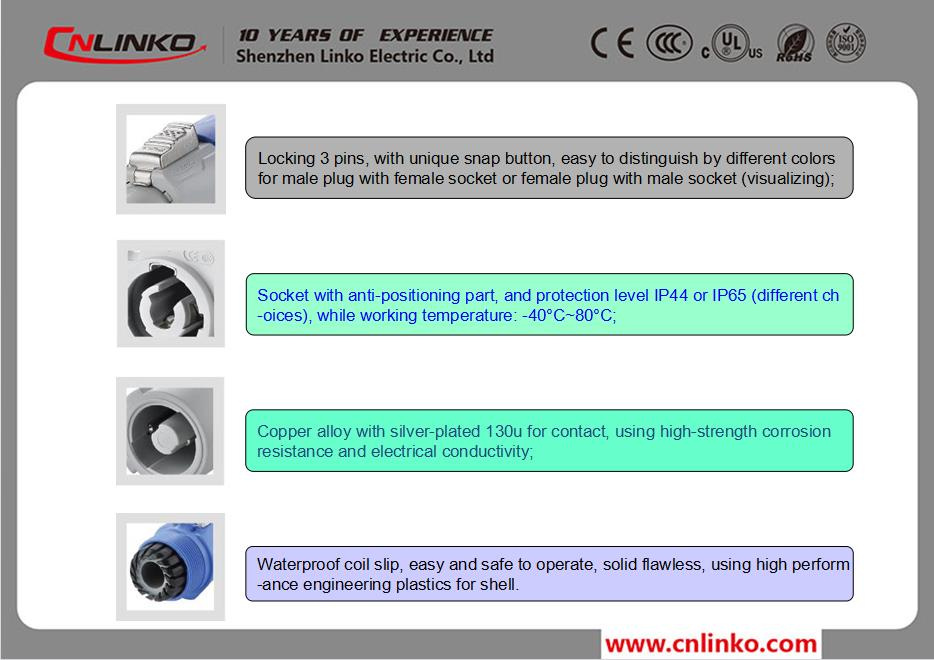

Product Description:
YF-24 series electrical connectors:
1. locking 3-pin connector of the device (middle, straight &pre-adaptation) - flexible;
2. Zinc alloy material against high frequency noise and electromagnetic interference
3. gold-plated contacts, high-strength corrosion resistance
4. electrical conductivity effectively deal with temperature rise.
5. silver-plated contact;
6. rated current: 20A;
7. 3 PIN Plug and Socket Speaker Connector, Adapter Connector for Audio and DJ Equipments.

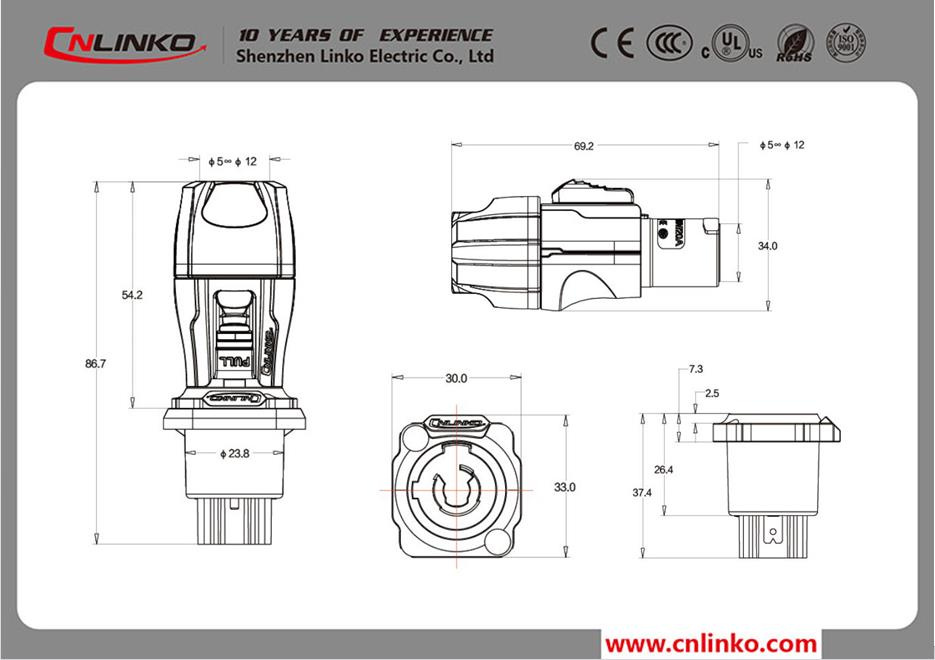

Product Datasheet:
YF 24 power connector
Connecting mode: | latching lock |
Protection level: | IP44/IP65 |
Cable specification: | 2.5 mm2 ~ 4 mm2 /14~12 AWG |
Diameter range: | Φ8mm ~Φ12mm |
Contact diameter×Qty: | Φ3.0×3 |
Current rating(A): | 20A |
Operating voltage(AC.V.rms): | 500V |
Withstand voltage(AC.V)1min: | 2500V |
Contact resistance: | <3mΩ |
Insulation resistance: | >500MΩ |
Durability: | ≥500 mating&unmating cycles |
Temperature rating: | -40°C~80°C |
Method of connecting cable: | solder |
Prevent the combustion level: | UL94-V0 |
Temperature rise: | 12A per contact at 30°C, 15A per contact at 40°C, 20A per contact at 50°C. |
Produce type: | splice connectors |
Material: |
|
Shell&insulated parts: | High performance engineering plastics |
Hardware metal: | Zinc alloy(pearl hard chromium) |
Contact pin: | Copper alloy(gold-plated) |
Spring: | Stainless steel |
Sealing: | Silica gel |
|
|
Main characteristics: |
|
- Sealed against dust and fluid (IP44/IP65) |
- Vibration resistance,impact resistance,stretching resistance |
- With one hand, can quickly insert or pull out |
|
|
Application industries: |
|
- Stage equipment | - The smart grid |
- Medical equipment | - Server |
- Solar energy equipment | - Ship equipment |
- Electric power equipment | - Vehicle equipment |
- Communications equipment | - Heavy machinery |
Packaging & Shipping
1. Normally, our price is based on our box packing for splice connectors;
2. Customized packing is welcome, MOQ of printing customized box is 1000 pcs/model for splice connectors
3. Delivery Detail: 3-5 working days after received deposit for splice connectors;
4. You may choose our shipping partner or your own partner for splice connectors;
5. 100% T/T in advance is required after confirming the order for splice connectors.
Our Services
1. CE,CCC,CUL,UL, ROHS, ISO9001:2008 Standard.
2. Supply OEM service.
3. We have professional quality control system and R&D department to strictly manufacture each product for splice connectors;
4. 100,000 pcs per month for splice connectors;
5. National level laboratory, and have flexible production line, to make quick action to urgent customized needs for waterproof wire connectors;
6. We will supply the best service to you. Eunice Tan Mob:+86-18312450225
FAQ
Q1: What are connectors?
A1: Connectors are connected to the electrical and mechanical components of electrical circuits. See below assembly photos:
(all in all: cable to cable; cable to machines)
Q2: What classes do connectors have?
Shape | Frequency | Function |
circular | high-frequency | for printed board; cabinets; |
rectangular | low frequency | socket connectors; for audio equipment, power, signal, etc. |
Q3: Why to choose CNLINKO? Any advantages?
A3: The answer is Yes. There are 5 major advantages (reasons).
1) Mutual Benefits: Our connectors are with high quality and competitive in price.
2) Customize: We can make the product as per your special request, Shape and Quality can meet your request.
3) OEM: Design your packing box(≥1000PCS per model).
4) Mix Order: We accept mix order, different model and small quantity order.
5) high quality: Our products have passed UL,CUL,CCC,CE and ROHS certification.
Using PBT material that import from abroad, carrying stable,compression, anti-explosion and anti-deformation quality; Using Zinc alloy material against high frequency noise and electromagnetic interference Use gold-plated contact with high performance of corrosion resistance and electrical conductivity effectively deal with temperature rise.
Q4: Can I order one piece for sample testing usage?
A4: Yes, we recommend you to check the sample before order. Please order the sample from us directly.
Q5: May I have your catalogue and price list for trial order in MOQ quantity?
A5: All our products were shown on alibaba, please have a detailed looking and choose the interested models from our site, sending us inquiry directly, we'll quote you accordingly right away.
Q6: Is there cheap shipping cost to import to our country?
A6: For small order, express will be best. As for bulk order,sea ship way is best but takes much time.
For urgent orders, we suggest via air to airport plus our ship partner send to your door.
Q7:Can we get support if we have our own market position?
A7: Pls inform us your detailed mind on your market demand, we will discuss and propose helpful suggestion for you, to find the best solution for you.
