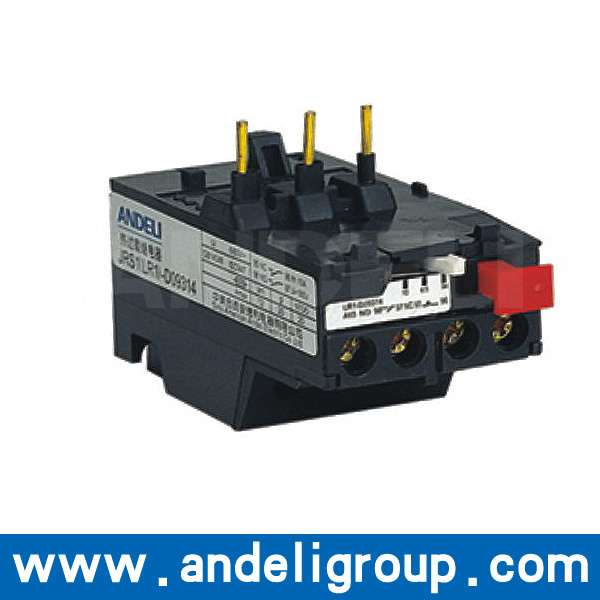

3ua Thermal Overload Relay (JRS1)

Name: 3ua Thermal Overload Relay (JRS1)
Brand: all-electronics-online.com
SKU: 607133554
Availability: InStock
Rating: 4.6 (128 reviews)

Price:	Negotiable/Piece
Trade Terms:	others
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Why choose us?

1.20 years - Andeli Group Co., Ltd is founded in 1993.
2.12 share holding companies - Andeli have owns 12 share holding companies in Shanghai, Hunan, Zhejiang, UAE.
3.300 cooperating companies - We have over 300 cooperating companies.
4.3000 workers - We have over 3000 workers.
5. USD150, 000, 000 - The total assets is USD150, 000, 000.
6.235, 000 square meters - The area of Andeli is 235, 000 square meters.
7. Certification - We have passed ISO9001: 2000 Quality Management System and CCC, ROHS, CE, CB, SIMKO, KEMA...

Application

JRS1 series thermal relay is suitable for using in the circuits rated voltage up to 660V, ratedcurrent 80A, AC 50/60Hz, for over-current protection of AC motor. The relay has the differentialmechanism and temperature compensation and can plug in CJX2 series AC contactor. Theproduct conforms to IEC60947-4-1 stardand.

Type	Number	Setting range (A)	For contactor
JRS1	09301	0.1~0.16	CJX2-09~25
	09302	0.16~0.25	CJX2-09~25
	09303	0.25~0.4	CJX2-09~25
	09304	0.4~0.63	CJX2-09~25
	09305	0.63~1	CJX2-09~25
	09306	1~1.6	CJX2-09~25
	09307	1.6~2.5	CJX2-09~25
	09308	2.5~4	CJX2-09~25
	09310	4~6	CJX2-09~25
	09312	5.5~8	CJX2-09~25
	09314	7~10	CJX2-09~25
	12316	10~13	CJX2-09~25
	16321	13~18	CJX2-09~25
	25322	18~25	CJX2-09~25
	40353	23~32	CJX2-09~25
	40355	30~40	CJX2-40, 50, 63
	63357	38~50	CJX2-40, 50, 63
	63359	48~57	CJX2-40, 50, 63
	63361	57~66	CJX2-40, 50, 63
	80363	63~80	CJX2-40, 50, 63

Prod Model:	JRS1
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Rated Voltage:	up to 660V
Rated Current:	80A, AC 50/60Hz
The Product Conforms To:	Iec60947-4-1

Established in 1993, ANDELI Group Co., Ltd. is a specialized manufacturer of low voltage electrical equipment. ANDELI Group owns 12 share-holding companies in Shanghai, Hunan, Zhejiang, UAE and over 300 member enterprises. "ANDELI" trademark is identified as one of the Chinese well-known trademarks. ANDELI Group ranks among top 500 in electric industry in China and our products are granted the title of the national products exempt from inspection.

With a workshop covering more than 27, 000 square meters, we are able to supply various circuit breaker, MCB, MCCB, RCCB, contactors, relays, fuse, transformer, voltage stabilizer, switching power supply, meters, solar products, welder and other electric products.

Moreover, with over 60 series and more than 2, 000 specifications, the annual output volume has reached USD24, 000, 000 in 2013. ANDELI regards quality of products as life. Our company is certified with ISO9001 and we have obtained CCC (China Compulsory Certification), RoHS, CCEE, CE, CB, SIMKO and KEMA certificates.

Through outstanding performance and excellent reputation, ANDELI has won many national awards and been recognized as one of the distinguished brand name in its local market. In the future, ANDELI will continue ensuring that our products meet the expectation of our customers with respect to product quality, and pursuing advance to integrative value of enterprise and sustainable growth.

Providing quality products, excellent service, competitive price and prompt delivery, we are now looking forward to even greater cooperation with overseas customers based on mutual benefits. Please feel free to contact us for more details.
