Product Description:

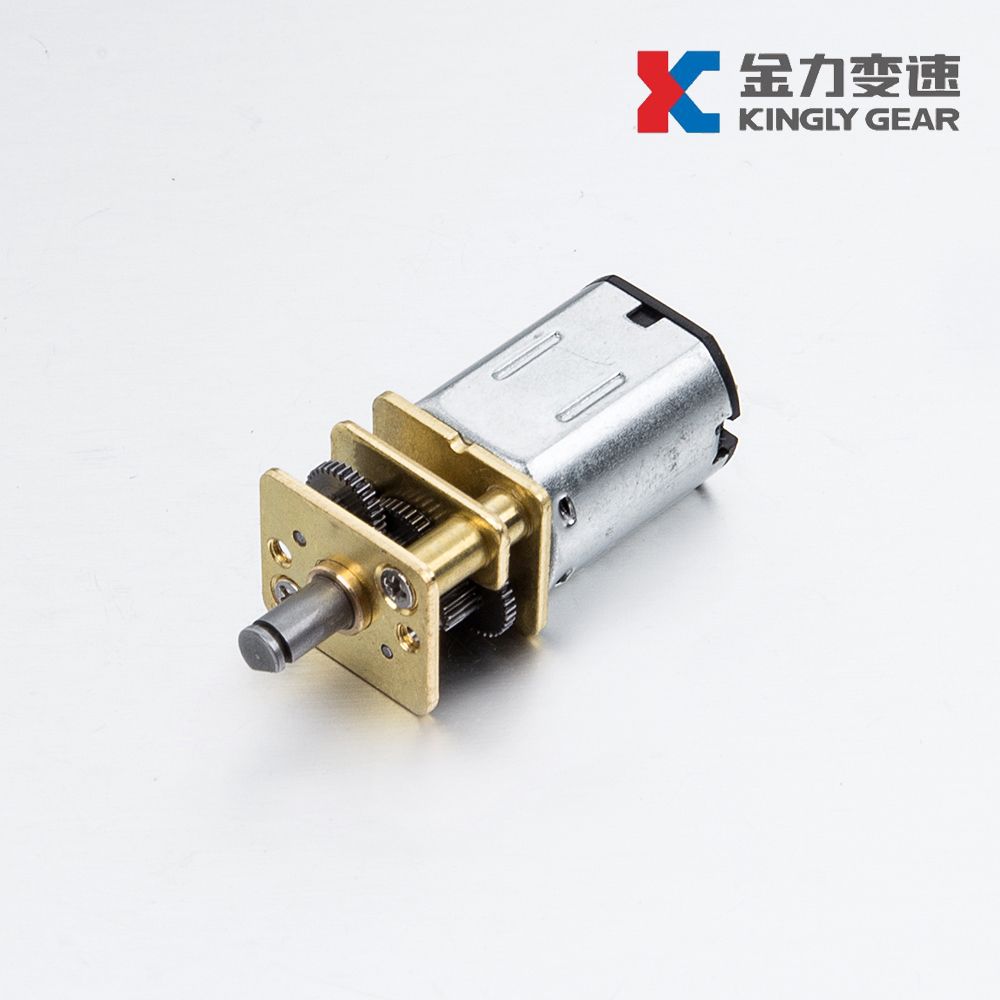

12FN20 3V/6V 12mm geared dc motor for door lock
1) Gear Motor Diameter: 12mm
2) Matching DC Motors: N20 Length:15mm, N30 Length 20mm
3) Shaft diameter: Round 3mm, D cut 2.5mm
4) Motor shaft can be changed, such as round or D cut, length, matched gear.
5) Motor Voltage: 1.2 to 24V DC
6) DC motor speed can be changed.
7) Gearbox raitos:11:1, 37:1 50:1,95:1, 116:1,168:1 ,226:1, 286:1. 298:1 1006:1
8) Reducer torque less than 0.8kg.cm
9) Geared Motor Applications: Toys and model, Electric Door Lock, solar product, IP CAM,CCTV,Medical Instruments, Beauty care,Automatic play ticket machine, AUTOMATIC TICKETING DEVICE,Robot.
10) We can also design the motor according to client's requirement such as Voltage, Speed and the length of shaft.
11)With CE ,ROSH ,ISO9001:2000
Technical Parameters
| Model | Voltage | No Load | At Maximum Efficiency | Stall |
| V | Speed | Current | Speed | Current | Torque | Output | Torque | Current |
| r/min | A | r/min | A | mN.m | kg.cm | W | mN.m | kg.cm | A |
| JL-12FN20-37 | 3 | 327 | 0.048 | 250 | 0.16 | 5.8 | 0.057 | O.15 | 27.44 | 0.28 | 0.54 |
| JL-12F1215-95 | 3 | 102 | 0.05 | 76 | 0.15 | 14.7 | 0.15 | 0.11 | 58.8 | 0.6 | 0.48 |
| JL-12FN30-286 | 4.5 | 52 | 0.045 | 41 | 0.165 | 39.2 | 0.4 | 0.17 | 176.4 | 1.8 | 0.62 |
| | | | | | | | | | | | |
| Match the Motor | Length of motorL2 | Length of Gear | Reduction Ratio | | | | |
| N20 | 15mm | 9mm | 11 | 50 | 95 | | | | |
| N30 | 20mm | 9mm | 116 | 226 | 286 | | | | |
Packing & Shipping:
1).Packaging Detail: Polyfoam or carton seperator inside, strong export carton box outside
2).Delivery Detail: Within 30 days for first order, 15-25 days for repeat order
