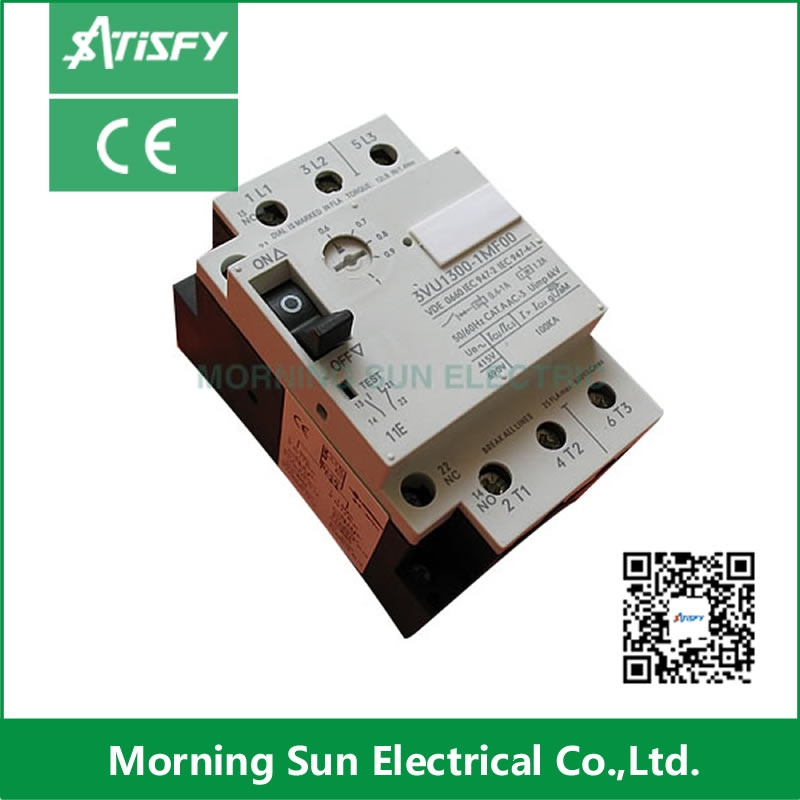

3vu1300 Motor Protection Circuit Breaker

Name: 3vu1300 Motor Protection Circuit Breaker
Brand: all-electronics-online.com
SKU: 663320045
Availability: InStock
Rating: 4.3 (50 reviews)

Price:	US $ 9.00/Piece
Trade Terms:	FOB
Min Order:	10/Piece
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

3VU circuit breakers are applicable for circuit of AC50Hz (or 60Hz), rated insulation voltage 750V, rated operating voltage under AC 660V, rated operating current 1-63A. It is used for protecting the motor against overload, short-circuit and phase-failure. It can also be used for starting and breaking the starter of motor, and for the circuit protection in the circuit of 63A.

Model	Rated current (A)	Motor output (kW)	Setting Range (A)
Model	Rated current (A)	Motor output (kW)	Thermal overload releases	Instantaneous overcurrent releases
(3VU13...)	0.16		0.1-0.16	1.9
	0.24	0.06	0.16-0.24	2.9
	0.4	0.09/0.12	0.24-0.4	4.8
	0.6	0.12/0.18	0.4-0.6	7.2
	1	0.25	0.6-1	12
	1.6	0.37/0.55	1-1.6	19
	2.4	0.75	1.6-2.4	29
	3.2	1.1	2-3.2	38
	4	1.1/1.5	2.4-4	48
	5	1.5/2.2	3.2-5	60
	6	2.2	4-6	72
	8	3	5-8	96
	10		6-10	120
	13	4/5.5	8-13	156
	16	7.5	10-16	190
	20	7.5	14-20	240
	25	11	18-25	300

Prod Model:	3VU1300
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
High Quality Competitive Prices:	OEM
Breaking Capacity:	Low Voltage Circuit Breakers
Operation:	Electric Type
Speed:	Normal Type Circuit Breaker
Arc-extinguishing Medium:	Air
Installation:	Fixed
Poles Number:	3
Certification:	CCC
Structure:	Conventional Circuit Breaker

Morning Sun Electrical Co., Ltd. Founded in 1995, located in the Liushi Town - "Electric Capital", mainly producing Micro switch, Contactor, MCB, MCCB, Auto-Air-Conditioner Parts and Thermostats and related products, which have been sold to Europe, North America, South America, Middle East, Southeast Asia and so on. Based of the "Good quality, competitive price, timely shipment and nice service", now getting regular repeated orders and enjoying the good reputation among our customers.

"Morsun" is prepared and willing to cooperate with any friends from all over the customers for the mutual benefits and bright tomorrow!
