4-20mA/0-20mA/0-5V/0-10V Smart Electronic Pressure Transmitter Switch, NPN/PNP Switching Output
| Price: |
Negotiable/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union |
SPS Intelligent Electronic Pressure Switch with OLED DisplayThe pressure switch SPS is designed for pressure monitoring and measure-ment in liquid and gaseous media. The SPS is suited for general industrial applications such as machine and plant engineering, in machine tool systems, in hydraulic and pneumatic systems, for pressure monitoring and control and for pumps and compressors. It is pressure switch, transmitter and display in one and the same device. In its standard configuration it has two switching outputs (PNP or NPN). In addition, there are configurations available with an analog output signal (0...20mA| 420 mA or 0...5V| 010 V) as well as with RS485 Link.

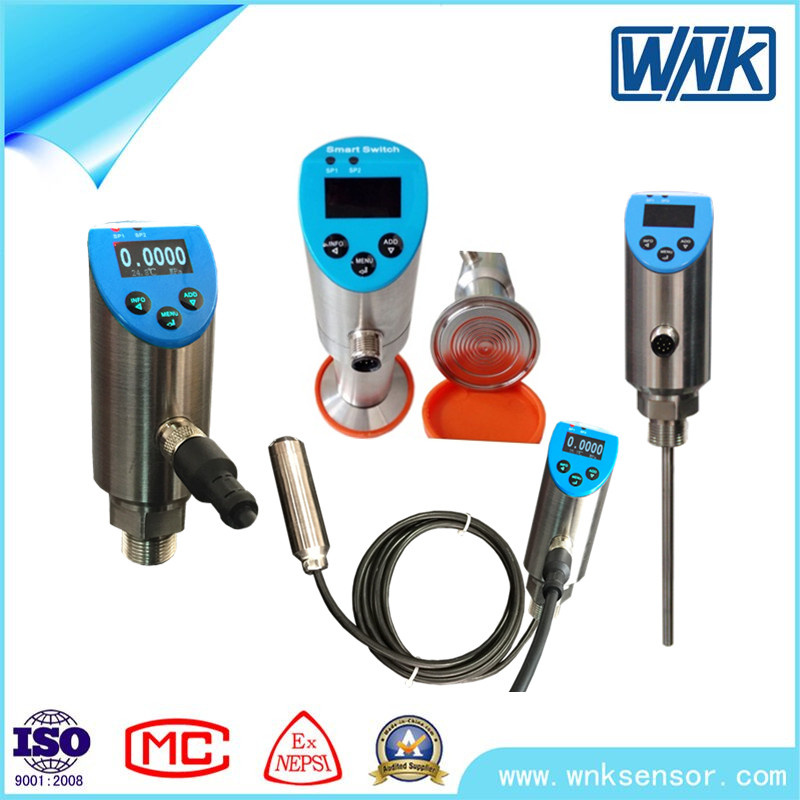

WNK Intelligent Switch Series:
SPS Intelligent Pressure Switch
SLS Intelligent Level Switch
STS Intelligent Temperature Switch
SPS-1 Intelligent Sanitary Flat Diaphram Pressure Switch
Features - Intelligent Electronic Pressure Switch with OLED Display :- Gas and liquid pressure measurement
- PNP switching, voltage and current outputs
- Switching points settable
- Switching can be set normally open / normally closed
- Supporting Switching delay
- Various analog output ways available
- Displaying pressure peak value and environment temperature
- Analog output span settable
- High light switch indicating
- OLED self-luminous display
- Display turnable 180°
- Housing with electrical connection against process connection rotatable 330°
- Industrial touch button
- Various display pressure units
- Parameters setting up for Password protection
- Optional Chinese and English menu
- Support MODBUS
Specification - Intelligent Electronic Pressure Switch with OLED Display: | Product name | Electronic Smart Pressure Switch |
| Measuring range | -0.10.1MPa to 60MPa |
| Measuring media | Gas & Fluid |
| Accuracy | ≤0.5%FS |
| Supply power | 1230V DC |
| Temp. error | ±0.02%FS/ºC(Zero/ Full Span) |
| Long-term stability | ±0.3%FS/Year |
| Analog output accuracy | ≤±0.2%FS |
| Output configurations | 2×PNP + 0V~5VDC/10VDC + MODBUS |
| 2×PNP + 0mA/4mA~20mADC + MODBUS |
| Switch current | 1.0A(Max.) |
| Switching type | Normally open / closed (settable) |
| Switching reponce time | <10ms |
| Swith delay | 0.00s~1000.0s |
| Switching motion mode | Delay or windows mode |
| Analog signal output and max ohmic load RL | Current output 0/4...20mA, 20...4mA RL≤0.5k |
| Voltage output 0...5/10v, 5/10...0v RL>10k |
| Screen display | OLED |
| Menu language | Chinese and English |
| Switch indicating | 2 Red LED |
| Displaying units | psi,bar,mbar,Pa,kPa,MPa |
| Buttons | 3 blue back-lighted touch buttons |
| Supplementary variables displaying | Environment temperature, analog output value, max peak value,mini peak value |
| Supplementary variables displaying way | Fixed displaying or switch display by INFO button |
| Working temperature | -30-80ºC |
| Media temperature | -30-80ºC |
| Storage temperature | -40ºC~80ºC |
| Electromagnetism compatible | GB/T 17626.2/3/4-2006 |
| Shock resistance | ≤10g/10Hz...500Hz(IEC 60068-2-6-2007) |
| Vibration resistance | ≤50g/11ms(IEC 60068-2-27-2008) |
| Protection class | IP65 |

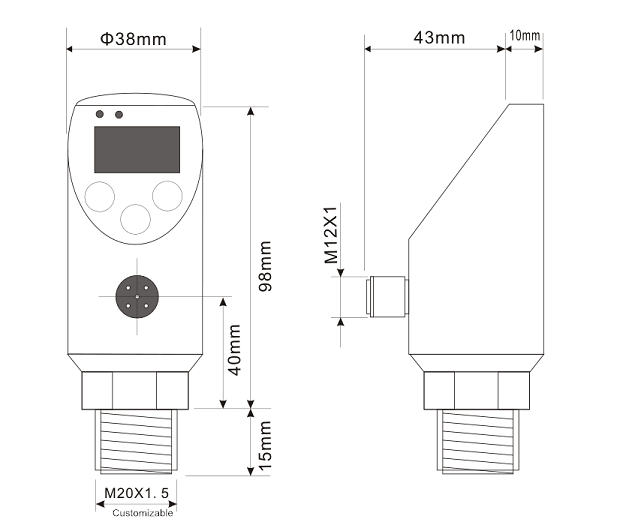

Dimensions - Intelligent Electronic Pressure Switch with OLED Display:
Payment Terms1. Port of Loading: Shanghai China
2. Samples Lead Time: 3-7 working days
3. Delivery Time: 7-15 working days after payment
4.Payment: T/T, Western Union, Paypal After-sales serviceWe promise to deliver the following after-sales service:
1. Warranty: The warranty period is 12 months starting from the shipping date;
2. Customers will enjoy free repair services for failures found within the warranty due to manufacturing quality;
3. For on-site services not caused by manufacturing quality, we shall charge a certain service fee at our discretion based on actual charges such as travel expense;

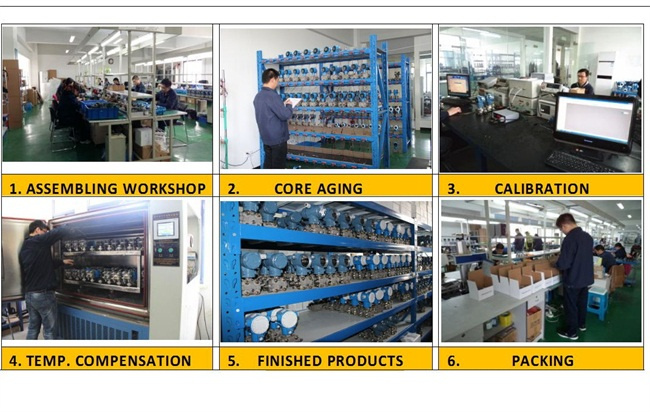

4. We provide paid repair services for meter damages not arising from manufacturing quality issues or meter damages not within the scope of warranty.Production Line
| Prod Model: |
SPS |
| Power Supply: |
12-30VDC |
| Measuring Range: |
-0.1...1MPa to 60MPa |
| Measuring Media: |
Gas, Liquid |
| Working Temperature: |
-30ºC~80ºC |
| Material: |
Stainless Steel |
| Output Signal Type: |
Analog Type |
| Accuracy: |
≤0.5%Fs |
| Long-Term Stability: |
±0.3%Fs/Year |
| Temperature Error: |
±0.02%Fs/°c(Zero / Full Span) |
| Type: |
Diffused Silicon Pressure Sensor Switch |
