4~20mA Output Intelligent Compact Level Transmitter (MPM4700)
Price: |
Negotiable/Piece |
Trade Terms: |
FOB,EXW |
Min Order: |
1/Piece |
Pay Type: |
T/T,Western Union |
4~20mA Output Intelligent Compact Level Transmitter (MPM4700)
Features:
1. 4~20m A
2. 2-wire
3. Digital correction
4. RS485, HART optional
5. IP68
6. RoHS approved
7. Exia explosion-proof
8. OEM
9. Accuracy
Specifications:Basic range(mH2O) | 3.5 | 7 | 10 | 20 | 35 | 70 | 100 | 200 |
Overpressure(mH2O) | 5 | 10 | 15 | 30 | 50 | 100 | 150 | 300 |
Note: The min.shrinked available range is 1/5 of basic range; For the other pressure range between min.range and max.range, but not indicated on the above table, we enlarge the above basic pressure range to produce (overpressure unavailable); |
Total accuracy | ±0.075%FS(min.) ±0.1%FS(typ.) ±0.25%FS(max.) |
Stability | ±0.2%FS/year |
Compensation temp. | (-10~70)ºC |
Operation temp. | (-10~80)ºC |
Storage temp. | (-40~100)ºC |
Power supply | (10~28)VDC(RS485), (12~30)VDC(HARTâ) |
(10~12)VDC(Intrinsic safe version) |
Output | (4~20)mADC |
·RS485 communication interface(Custom or MODBUS protocol) or HARTâcommunication protocol |
Load | (4~20)mADC output,(U-12V)/0.02A(Ω) |
RS485 bus line could connect with 99 transmitter |
Insulation | 100MΩ/50V |
Shock | 20g,(20~5000)Hz |
Impact | 20g,11ms |
Protection | IP68(Transmitter part);IP65(Junction box part) |
Media compatibility | Diaphragm: stainless steel 316L |
Housing: stainless steel 1Cr18Ni9Ti |
O-ring: Viton |
Weight | ~160g |
Total accuracy: including non-linearity, hysteresis, repeatability and thermal error;
For special temperature requirement, please contact with our company;
For pressure range 3.5mH2O ad 7mH2O, after shrinking, the total accuracy is60.5%FS.

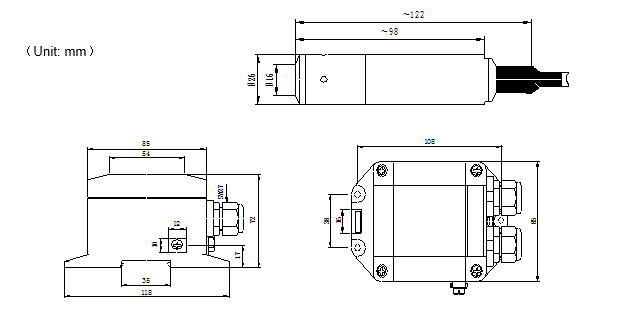

Outline Construction:
Electrci Connection:
Order Information:MPM4700 | HARTâ Intelligent Level Transmitter |
| | Range | Pressure range :0~3.5200mH2O |
[0~XmH2O]L | X=actual pressure range, L=cable length , suggested L-X=(1~2)m |
| | Code | Output signal |
E | 4~20mADC |
R4 | RS485 communication interface, Custom protocol |
R8 | RS485 communication interface, MODBUS communication protocol |
H | HARTâ communication protocol |
| | Code | Construction material |
Diaphragm | Interface | Housing |
22 | SS 316L | SS | SS |
24 | SS 316L | SS 316L | SS 316L |
| | Code | Others |
C1 | M20×1.5 male, face type seal |
C5 | M20×1.5 male, waterline seal |
Yb | Aluminum connection box without display |
Yc | MS200 water-proof connection box(default) |
Yd | PD140 lightening-proof protection device |
F1 | Fixed flange |
i | Intrinsic safe version ExiaIIBT6 Ga |
T | Ship-use |
| |
MPM4700 [0~10mH2O]12 ER4 22 Yc the whole spec |
| | | | | | | | | | | | | |
Prod Model: |
mpm4700 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Measurement Range: |
0~3.5...200m |
Over Pressure: |
300mh2o |
Accuracy: |
0.1%Fs (Typ.) |
Power Supply: |
10~28VDC |
Housing: |
Stainless Steel |
Keywords: |
Accurate Smart Level Transducer |
O-Ring: |
Vition |
Principle: |
Piezoresistive |
Compensation Temperature: |
-10~70c |
Usage: |
Liquid |
