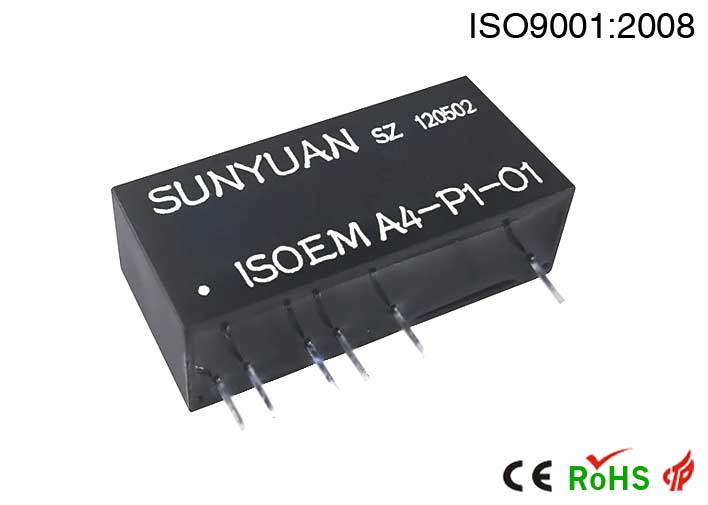

4-20mA to 0-5V Signal Isolated Transmitter with 3KV isolation
General characteristic:
Low cost, small size, SIP 12 anti- fire UL94V-0 package
No external component, need not "ZERO"and "G. Adj" adjustment.
Three-port (power/input/output) isolation: 3000VDC
Assistant power: 5VDC/12VDC/15VDC/24VDC
0-75mV/0-2.5V/0-5V/0-10V/0-± 100mV/0-± 5V/0-± 10Vvoltage signal or 0-10mA/0-20mA/4-20mA/0-± 10mA/0-± 20mA current signal isolation and transfer
Temperature range: -45~+85 centigrade
In EMC(electromagnetism disturb) circumstance need adopt shield measure.
Applications:
DC current/voltage signal isolated/transfer/amplifier
No distortion in long distance signal transmission
Analog signal data acquisition
4-20mA(0-20mA)/0-5V signal isolation and transfer
Equipment and sensor signal acquisition
Signal transmit no-distortion
Electric power, distant control, isolated safe bar
4-20mA sensor analog signal transmission
Ground interference control
Specification:
SUNYUAN ISOEM series is electromagnetic isolation mixed IC, it is made of isolated DC/DC converters and electromagnetic isolation signal amplifier, it is ideally suited for no special need about EMC(electromagnetism disturb) Compare to photoelectrical isolation, it can not be used in strong electromagnetism, so clients need adopt shield measures, it can reach 5000VDC insulated. Sunyuan ISO EM series it is very easy to use, no external components are required.
Products style: Weldable to PCB directly and DIN 35 1x2 or DIN35 2x2 Rail-Mounted 0-5V/0-10V/0-75mV/0-2.5V/0-1mA/0-10mA/0-20mA/4-20mAisolated signal of international standard signal input and output
Accuracy grade: 0.1/0.2, Extremely high linearity in whole process(non-linearity<2%), need not "ZERO"and "G. Adj" adjustment.

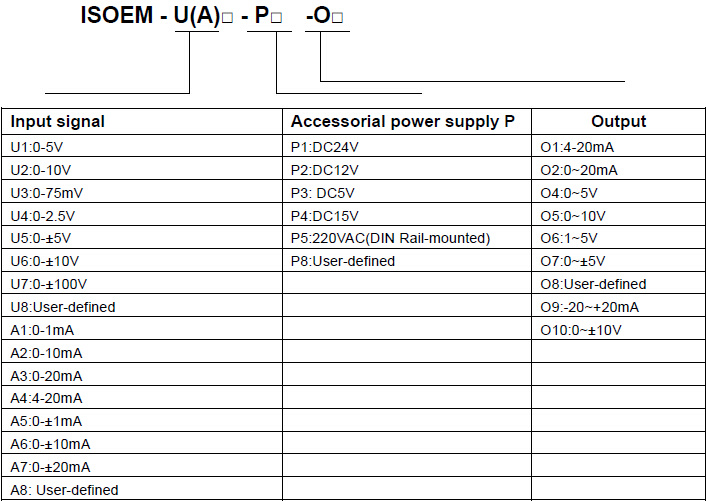

Model Sellection:
Examples:
(1) Input :0-5VDC ,Output: 0-5VDC, Power: 24VDC
Model: ISOEM-U1-P1-O4
(2)Input:4-20mA, Output:4-20mA, Power:24VDC
Model: ISOEM-A4-P1-O1
|
Input signal |
Accessorial power supply P |
Output |
|
U1: 0-5V |
P1: DC24V |
O1: 4-20mA |
|
U2: 0-10V |
P2: DC12V |
O2: 0~20mA |
|
U3: 0-75mV |
P3: DC5V |
O4: 0~5V |
|
U4: 0-2.5V |
P4: DC15V |
O5: 0~10V |
|
U5: 0-± 5V |
P5: 220VAC(DIN Rail-mounted) |
O6: 1~5V |
|
U6: 0-± 10V |
P8: User-defined |
O7: 0~± 5V |
|
U7: 0-± 100V |
|
O8: User-defined |
|
U8: User-defined |
|
O9: -20~+20mA |
|
A1: 0-1mA |
|
O10: 0~± 10V |
|
A2: 0-10mA |
|
|
|
A3: 0-20mA |
|
|
|
A4: 4-20mA |
|
|
|
A5: 0-± 1mA |
|
|
|
A6: 0-± 10mA |
|
|
|
A7: 0-± 20mA |
|
|
|
A8: User-defined |
|
|
| Prod Model: |
ISO EM U(A)-P-O Series |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Input: |
0-5V/0-10V/0-+/5V/0-20mA/4-20mA, etc |
| Output: |
0-5V/0-10V/0-+/5V/0-20mA/4-20mA, etc |
| Isolation Power: |
3000VDC |
| Auxiliary Power Supply: |
5V, 12V, 15V, 24V |
| Package: |
SIP12pin |
| Temperature Range: |
-45~+85 Centigrade |
| Accuracy Grade: |
0.1/0.2 |
