4/6/12 Fibers Sm 9/125 G652 Steel Tape Armoured Fiber Optic Cable for Duct

4/6/12 Fibers SM 9/125 G652  Steel Tape Armoured Fiber Optic Cable For Duct


Description:

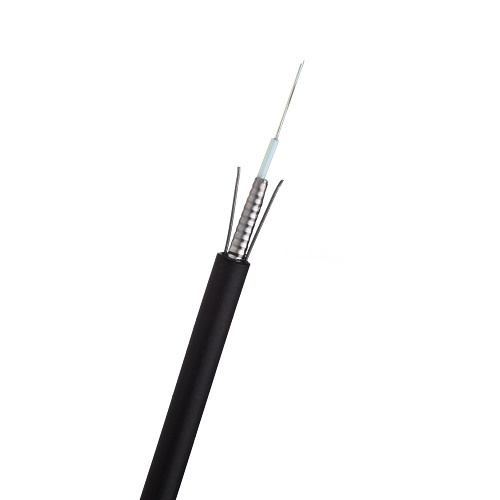

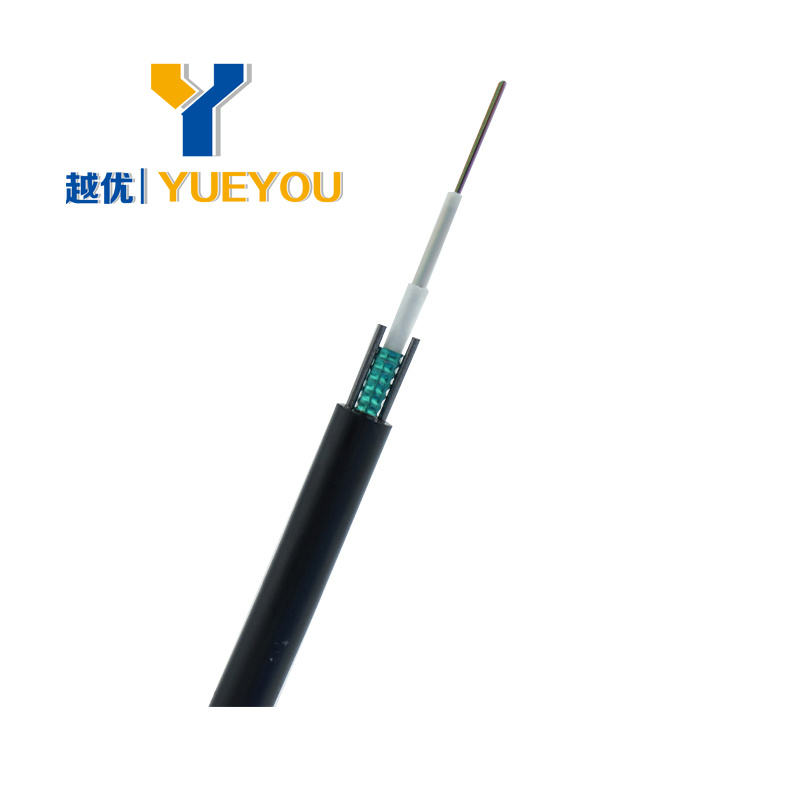

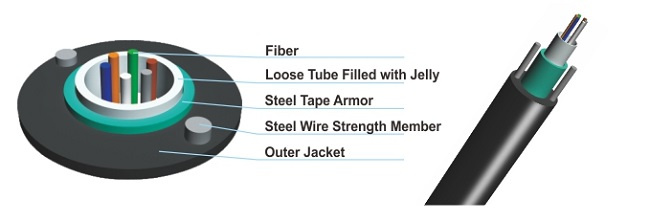

Outdoor Armoured cable is used for Duct ,direct buried.The Singlemode/Multimode fibers are positioned in a loose tube which is made of high modulus plastic,PBT loose tube are filled with water-resistance filling compound.A PSP is longitudinally applied around the loose tube,and water-blocking material are distributed into interstices between them to guarantee the compactness and longitudinal water-blocking performance. The corrugated steel tape is applied which provide for crush resistant.Two parallel steel wires are placed at the two sides of the steel tape.Outer sheath is made of UV resistance PE jacket.




Features:

fiber count: 2-24 Fibers in Gel filled loose tube.

Fiber selection: Single mode or Multimode.

Armored: Steel tape armoured.

Excellent mechanical and temperature performance guaranteed by the accurate excess fiber length.

Excellent crush resistance and flexibility.

Gel filled loose tubes for a critical protection of fiber.

Steel Wire offers desirable tensile strength and crush resistance.

Small diameter, Light, easy installation.

Steel Tape armored enhanced rodent protection and mechanical protection.

Sheath materials suit a variety of installation environments, UV and moisture resistance design.

IEC 60794-1 standard.


Application:

Duct,direct buried.


Fiber datasheets:


Fiber		G.652D	G.655	50/125um	62.5/125um
Attenuation(+20ºC)	@850nm			≤3.0dB/km	≤3.3dB/km
	@1300nm			≤1.0dB/km	≤1.0dB/km
	@1310nm	≤0.36dB/km	≤0.40dB/km
	@1550nm	≤0.22dB/km	≤0.23dB/km
Bandwidth	@850nm			≥500MHz.km	≥200MHz.km
	@1300nm			≥500MHz.km	≥500MHz.km



 Cable datasheets


Fiber count	Cable diameter(mm)	Cable Weight(kg/km)	Allowable Tensile Load (N)	Allowable Crush resistance (N/100mm)	Dynamic and Static Bend (mm)	Installation Temperature Range(ºC)
2-12	7.8±0.2	60±10	1500/600	1000/500	20D/10D	-40~+70
14-24	8.5±0.2	65±10	1500/600	1000/500	20D/10D
