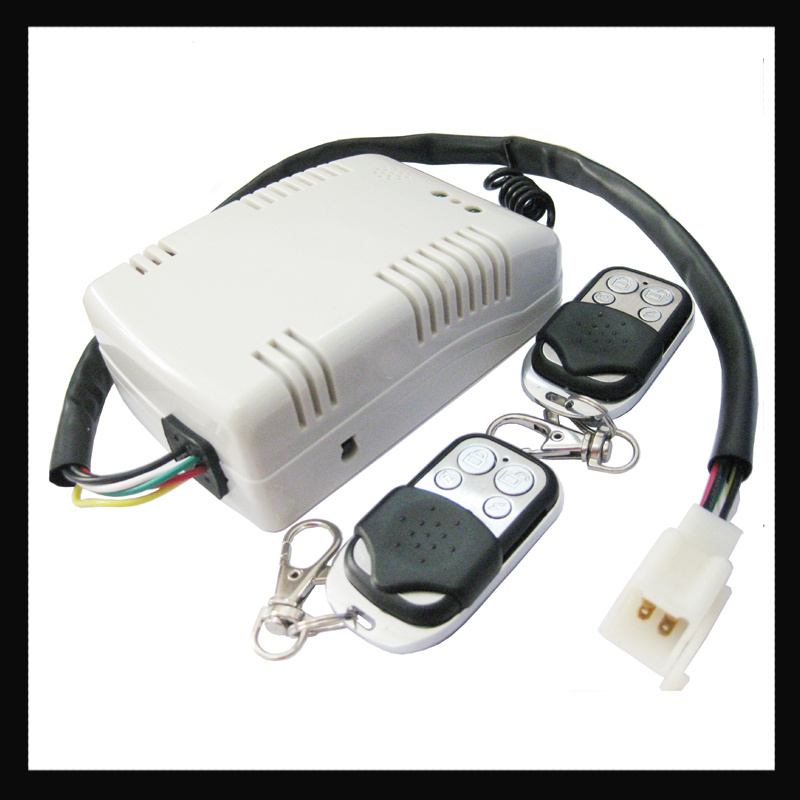

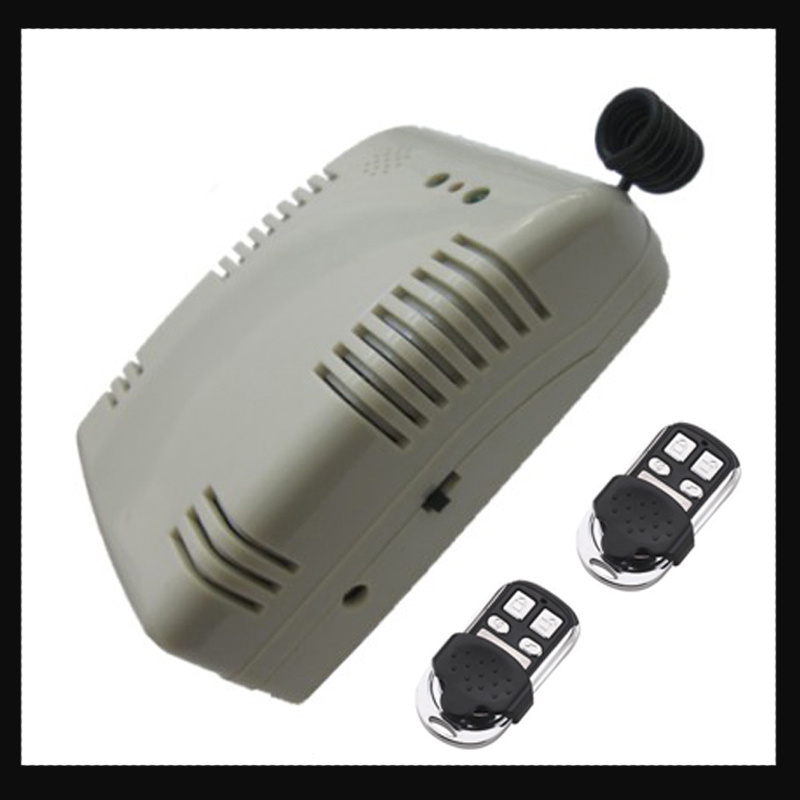

4 Channel Rolling Code Remote Controller for Garage Door

Place of Origin: Fujian China(Mainland)

Brand Name: MARIE

Model Number: ML-KZQ004

Frequency: 315MHz&433MHz(Opition)

Ecode: Rolling Code

Working Voltage: 12V

Static Current: ≤ 6mA

Working temperature: (-40+80)degree celsius

Receiving Sensitivity: ≥ 105dBm

Output current: ≤ 10A

Receiving sensitivity: ≥ 120-130M

Output Voltage: 24VDC/AC (optional)

5. Can store 30pcs remote control.

Application: Home Alarm, Rolling Door, Barrier Gate, Garage door and other electronics
Instruction:

* Delete the code:
1. Press on the learning button for more than 10S, red light will bright 10S.
2. After the buzzer will sound 5 times and red light recover to original slow flash which mean all the code have been deleted successfully.
Learning code:
Press the learning button 2s, the buzzer will sound 2times
Then you press on any button of the remote, buzzer will sound 1time, which mean the remote have been learn into the receiver successful, you can learn into 30pcs remote control at the same time.
3. And after 5-7S, the buzzer will long sound for 2S, please pay more attention on the red light will recover to original slow flash which mean have been exit the mode for learning code. (After the receiver exit the learning mode, then you can use the remote control normally! )
Note:
1. This set controller host we adopt rolling code technology can learn more than 30 pcs remote control only one button learning is ok!
2. If you lose the remote control you can delete the rolling code from the host then learning again another remote control, ensure that lose remote control cannot to use again.
3. If you want to learn more remote control, learning direct is ok, no need delete now available.

Item    No.:	ML-KZQ004
Brand:	MARIE
Size:	110mm*71mm*40mm
Coding    Model:	Rolling Code
Components:	PCB    +    Battery    +    Metal    case    +    silica    gel    pad    +    Screw    +    Keychain
Frequency:	Fixed  Frequency:   315MHZ  or  433MHZ
Voltage:	12V
Static Current	< 6mA
Origin:	Quanzhou    City    ,   Fujian    Province    ,   China.
Delivery    time:	1-25Days
LED    Light:	Green//Bule/White/Yellow/Red    and    etc.       By    Customized
OEM/ODM  Projects:	Yes.
Logo:	Accept    Customized
