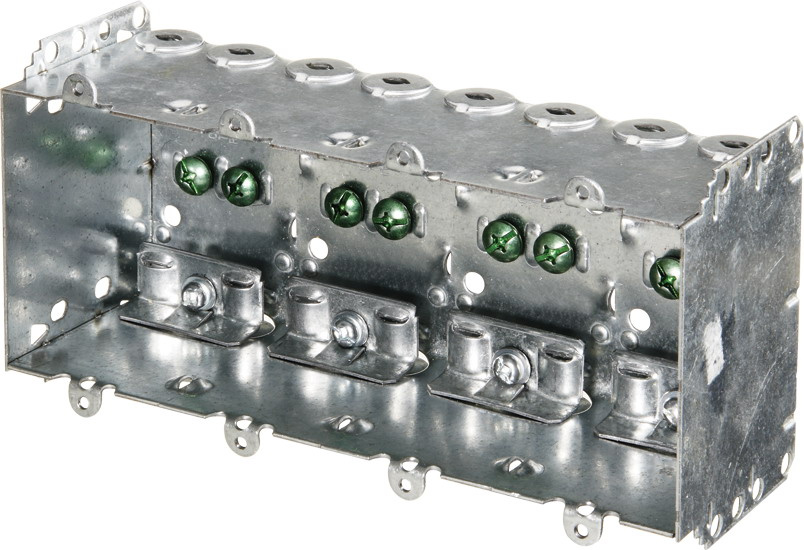

4-Gang Weld Steel Box, UL Listing

Name: 4-Gang Weld Steel Box, UL Listing
Brand: all-electronics-online.com
SKU: 689224912
Availability: InStock
Rating: 4.6 (27 reviews)

Price:	US $ 1.20/Piece
Trade Terms:	FOB
Min Order:	3000/Piece
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

APPLICATION
· Device boxes are used to house wiring devices such as switches or outlets

SPECIFICATIONS
· Part No.: LGH302CH-4
· Description: Non Gangable 4-gang Box, 2-1/2 in. Deep - 3 in. High
· Pryout: 16
· Volume (Cu. In. ): 50
· Manufacturing: Weld
· Standard PKG: 10pcs

CODE COMPLIANCE
· CUL Listed, UL 514A
· ROHS comply

MATERIAL CHARACTERISTICS
· Hot Dipped Galvanized Steel Sheet

FEATURES
· Are used in branch circuit wiring to splice wires
· Accommodate wiring devices, such as switches and receptacles
· Most may also serve as fixture supports
· Provide excellent protection for wiring system or devices
· Narrow back body leaves more room for wires in the box
· Must be closed with a cover, light fixture canopy or wallplate
· Permit access to conductors for maintenance
· Limited Two-Year Warranty

Prod Model:	LGH302CH-4
Markets:	North America,South America,Mid East
Volume (Cu. In. ):	50
Type:	Power
Structure:	Protection

Lumex is a specialized manufacturer of custom and standard electrical wiring devices, Founded in 1997, Lumex offers nearly 18 years of proven performance in producing superior quality products.

Quality is the founding principal of Lumex' manufacturing philosophy. Lumex is certified ISO 9001: 2008, Most of the electrical wiring devices in Lumex are UL, ETL and RoHS approved. All our products are 100% quality guaranteed.

Lumex incorporates the most advanced design and manufacturing technologies. All Lumex's products have been designed and prototyped for sales using the most advanced testing techniques and methods.

In nearly 18 years, Lumex has invested the most modern manufacturing technology and equipments, and as a result, we have consistently provided large OEMs with the most cost effective alternatives globally.

Customer Satisfaction, Design Engineering, Quality, and On-Time Delivery are four key areas we are focusing on to insure high quality electrical wiring devices and total customer satisfaction. Our partner companies rely upon us to create superior quality, budget conscious solutions for complex challenges. At Lumex, we view solutions as the key to our continued growth and success.
