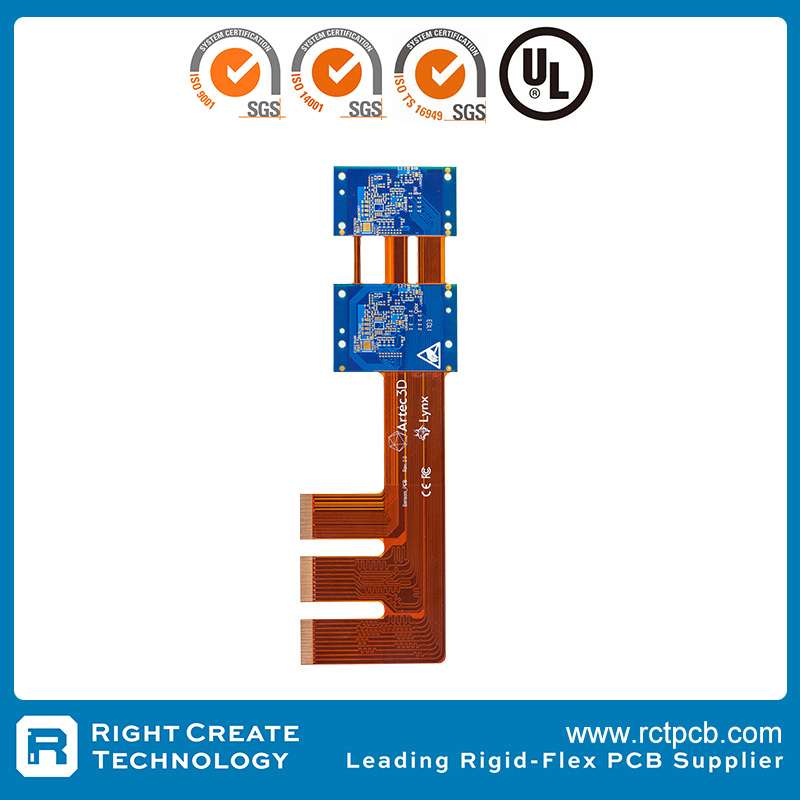

4 Layer Rigid Flex PCB

Name: 4 Layer Rigid Flex PCB
Brand: all-electronics-online.com
SKU: 836055585
Availability: InStock
Rating: 4.6 (47 reviews)

Price:	Negotiable/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Item	Parameter & Description
Layer	1- 36 Layers : Rigid PCB 1-16 Layers: Rigid Flex PCB 1- 2Layers : PTFE, PPO/PPE, Rogers, Aluminum/ Copper Base, TEFLON
Material	FR-4, PI, PTFE, PPO/PPE, Rogers, Aluminum/ Copper Base, TEFLON
Max Board size	1- 2 Layers: 55" x 45" 4- 6 Layers: 32" x 28" >=8 Layers: 30" x 24"
Outline Tolerance	±5mil
Final Thickness	0.008" - 0.275" (0.2mm- 7mm)
Min Thickness	2 layer: 0.008" (0.2mm) 4 layer: 0.016" (0.4mm) 6 layer: 0.024" (0.6mm) 8 layer: 0.032" (0.8mm) 10 layer: 0.04" (1mm) More than 10 layers: 0.5 X number of layers X 0.008"
Thickness Tolerance	±10%
Impendence Control	±10%
Min Trace Width / Min Clearance	Inner Layers 0.5oz: 3/3mil 1oz: 5/5mil 2oz: 5/7mil 3oz: 7/8mil 4oz: 10/10mil 5oz 12/12mil 6oz/ 15/12mil	Outer Layers 1/3oz-Hoz: 4/4mil 1oz: 5/5mil 2oz: 5/7mil 3oz: 7/8mil 4oz: 10/10mil 5oz: 12/12mil 6oz: 15/12mil
Outer Copper	1/3oz, 0.5oz, 1oz, 2oz, 3oz, 4oz, 5oz, 6oz
Inner Copper	1/3oz, 0.5oz, 1oz, 2oz, 3oz, 4oz, 5oz, 6oz
Min Finish Hole	6mil
Min Hole Tolerance	±3mil
Inner Layer Registration	±2mil
Min Hole Ring	Inner: 0.5oz: 5mil 1oz: 6mil 2oz: 8mil 3oz: 12mil 4oz: 15mil 5oz: 18mil 6oz: 20mil	Outer: 1/ 3oz -0.5oz: 4mil 1oz: 5mil 2oz: 7mil 3oz: 10mil 4oz: 16mil 5oz: 18mil 6oz: 20mil
Aspect Ratio	10:1
Silk Screen Color	White, Black, Green
Solder Mask Color	Glossy: Green, White, Blue, Black, Yellow, Red, Matt: Green, Black, Blue
Solder Mask Thickness	>=2mil
Min Solder Mask Dam	4mil
Hole Plug Diameter	10mil - 24mil
Warp and Twist	≤0.75%
Surface Finish	HASL, LF-HASL, ENIG, Imm Tin, Imm Ag, OSP, Gold Finger
Accept Standard	IPC Class II, IPC Class III, ISO/TS16949

Prod Model:	rct_rigid_flex_pcb_001
Type:	Combining Rigid Circuit Board
Material:	Fiberglass Epoxy Resin + Polyimide Resin
Flame Retardant Properties:	V0
Dielectric:	Fr-4, Pi
Brand:	Rct
