Yueqing Jinshenghua Electronic Co., Ltd. >> 4 Pin Double Ple Illuminated Rocker Switch

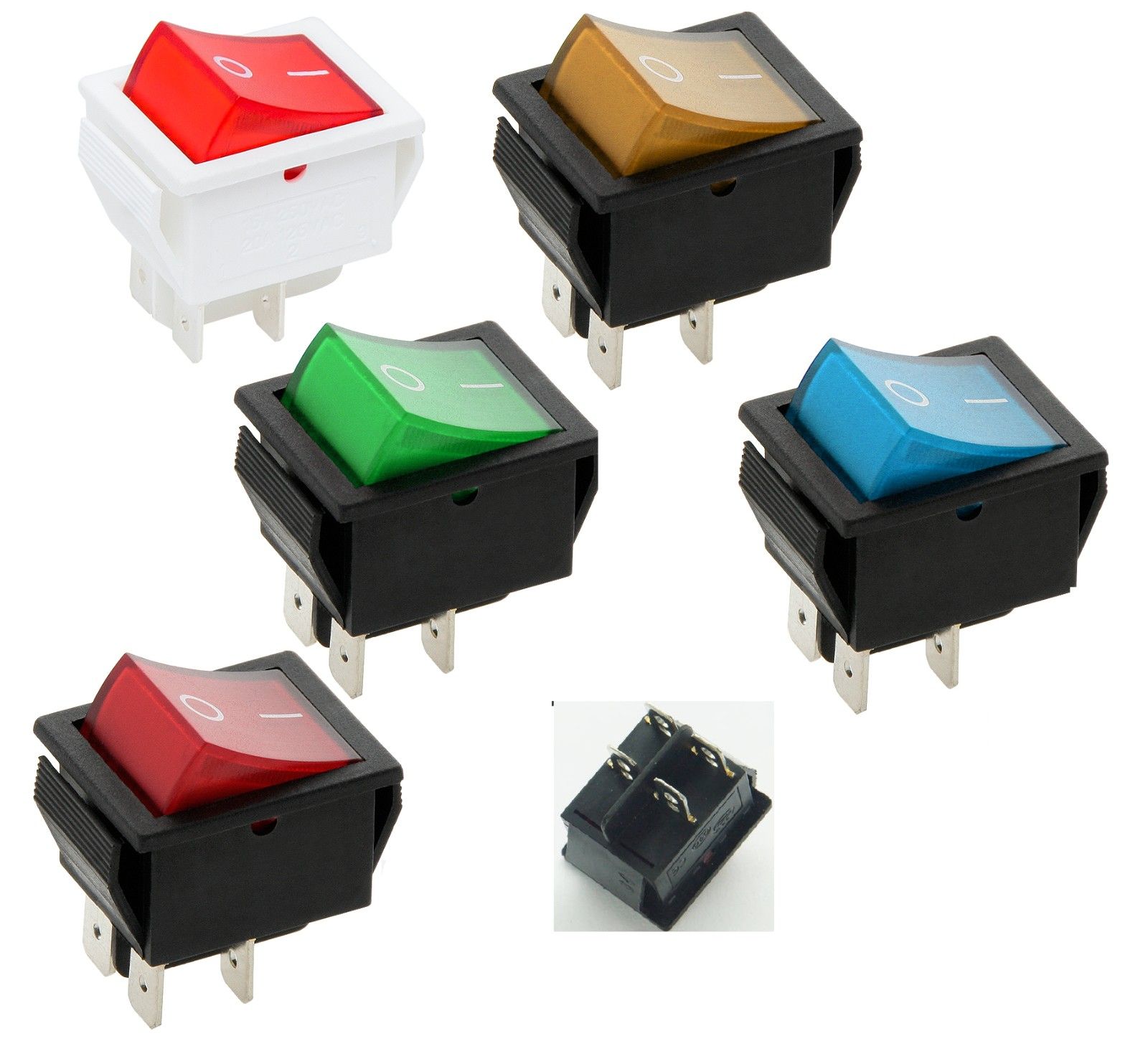

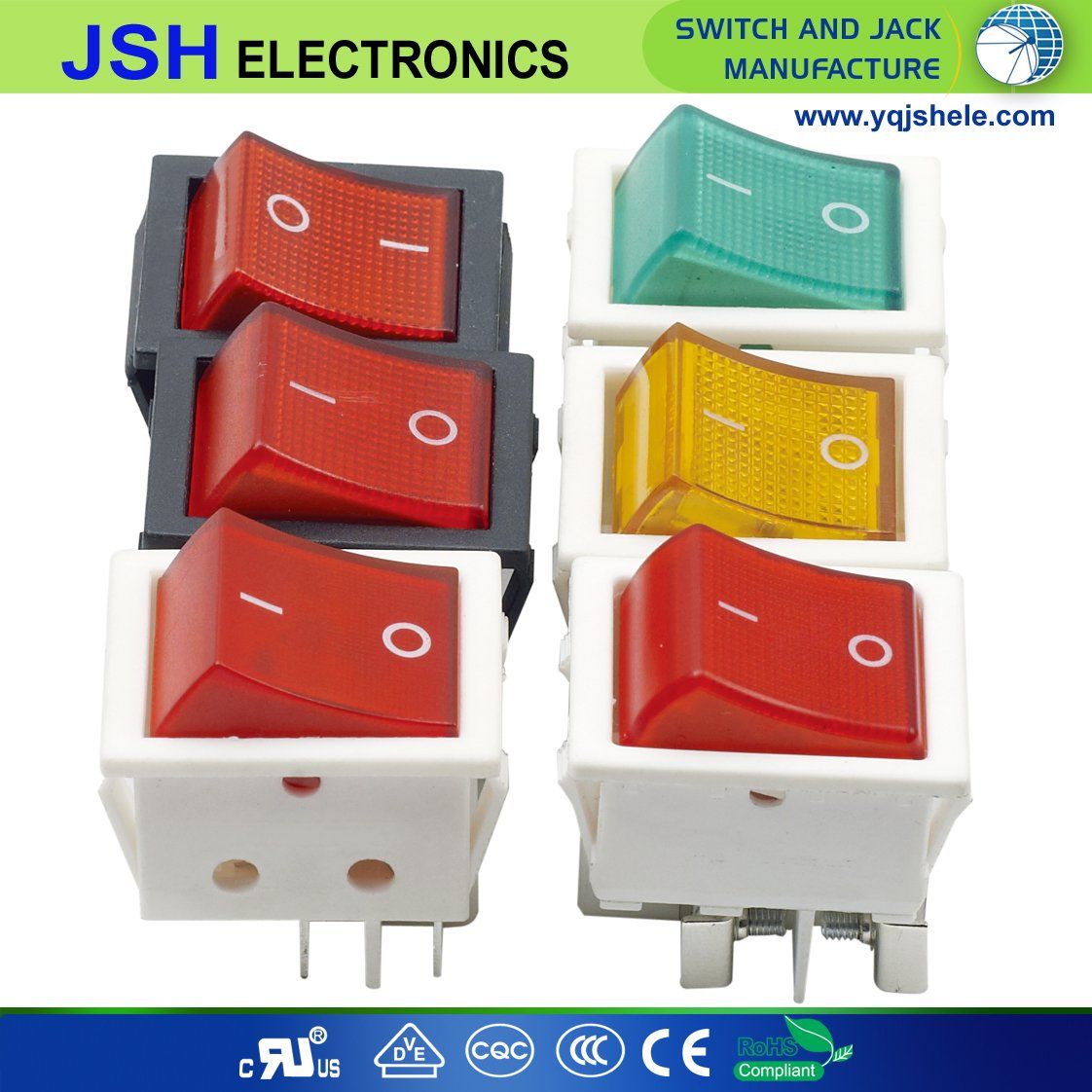

4 Pin Double Ple Illuminated Rocker Switch

4 Pin Double Ple Illuminated Rocker Switch
Price: US $ 0.21-0.25/Piece
Min Order: 500/Piece
Pay Type: L/C,T/T,D/P,Western Union,Paypal

Screw Terminal KCD4 16A Rocker Switch 250V T125

Screw Terminal KCD2 16A Rocker Switch 250V T125
1.funtion : on off
2.20A 125VAC ;
3.16A 250VAC
4.10000cycle
5.color:white ,grey,black

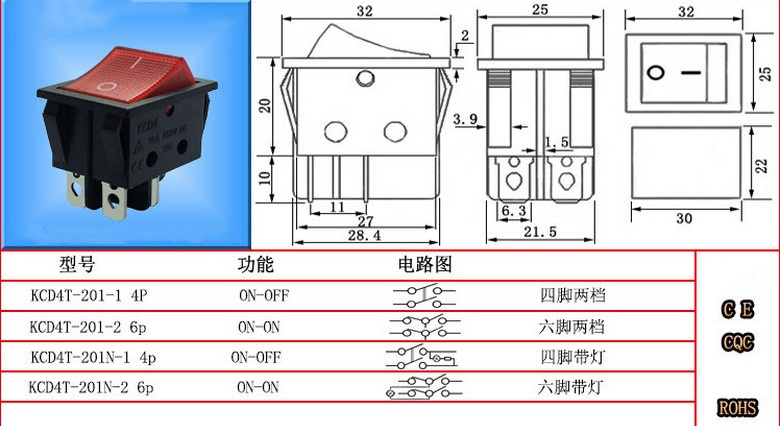

6.dimension:30*25



RATING:

20A 125VAC ,15A 250VAC .

MECHANICAL LIFE:

>50000 CYCLES

ELECTRICAL LIFE

>10000 CYCLES

CONTACT RESISTANCE

< 50MΩ

INSULATION RESISTANCE

>1000MΩ

WITHSTAND VOLTAGE

>1500V/MINUTE

AMBIENT TEMPERATURE

-10°C~+85°C

STORAGE TEMPERATURE

-25°C~+85°C














1000 pcs  for one carton and 50 pcs is one bag
Gross weight for one carton is 15kg


Contact information

Any reqruirement ,pls feel free to contact us And we can give you detailed reply on the first time


MP:13626549673
Welocme to contact us
Best regards
Honey














































Prod Model: KCD4-SNBL
Housing Color: Whtie Grey and Black
Button Color: Red Gree Yellow Blue
Usage: Toys
Standard: Standard
Lamp: With Lamp
Color: White
Certification: Ce CQC TUV
Condition: New
Our company supplies different kinds of products. High quality and favorable price. We're pleased to get your Inquiry and we will come back to as soon as possible. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. To perfect our service, we provide the products with good quality at the reasonable price.
