Shenzhen ZLPOWER Electronics Co., Ltd. >> 400va to 3000va Offline UPS with AVR Technology Backup UPS for Office and PC

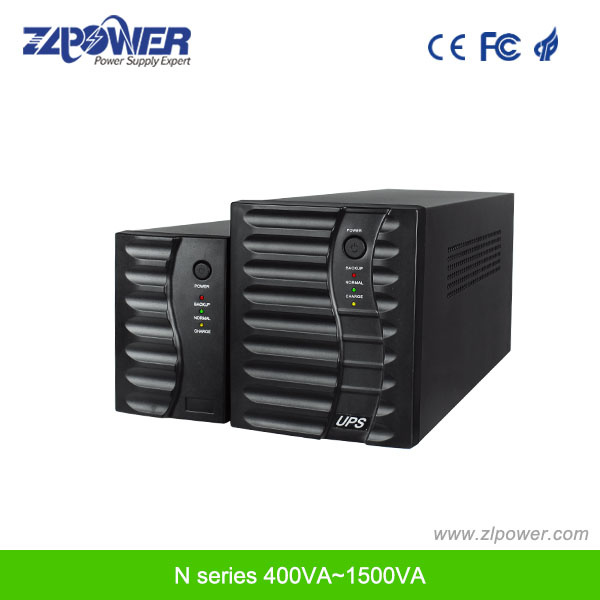

400va to 3000va Offline UPS with AVR Technology Backup UPS for Office and PC

400va to 3000va Offline UPS with AVR Technology Backup UPS for Office and PC
Price: US $ 22-23/Piece
Min Order: 50/Piece
Pay Type: L/C,T/T,Western Union,Money Gram
Prod Model: N Series 400VA~3000VA
Power Factor: 0.6
Voltage Range: 140~290V/70~145V
Frequency: 40~70Hz
Transfer Time: Less Then<10ms
Battery Protection: Auto Protect
Battery Recharge Time: 8hours to 90% of Capacity Full Load Discharge
Noise: <35dB(1meter Distance)
Operating Temperature: 0~40centi-Degree
Operating Humidity: 0~90% Non-Condensing
Control Technology: CPU
Phase: Single Phase
Type: Line Interactive
Protection: Short Circuit
Application: PC and Office
Output Capacity: 400~3000va
Brand: Zlpower

Product Description

400VA to 3000VA Offline UPS with AVR Technology Backup UPS For Office and PC

Application:
       The off-line UPS is the standby status with batteries being charged in normal AC time.When the power supply unexpectedly shuts down,the built-in inverter will in no time convert the battery output into AC to keep stable power supply.The UPS is generally considered high mostly used in comparably stable environment with a small fluctuation of utility power and lower requirement of power supply quality.
      The UPS now is widely usedin protection of PC in govermment offices,education institues ans SMEs.

Key Features:

1.        Advanced CPU control and intelligent battery management.

2.        With Boost and Buck AVR and the full bridge inverter technology to obtain stable and wide input voltage and frequency range.

3.        Off mode charging and auto restart while AC recovery.

4.        Battery mode no-load automatic shutdown after two minutes.

5.        IEC cables connect with PC can match with various generators.

6.        Support RS232 and USB communicationmonitoring accompanied with Modem/Line Surge Protection: RJ11/RJ12/RJ45.

7.        Overload/ Over charge/ Short-circuit/ protection/Low battery automatic alarm.


Specifications:

Model
N400N500N650N800N1000N1200N1500
Nominal Capacity400VA/240W500VA/300W650VA/390W800VA/480W1000VA/600W1200VA/720W1500VA/900W
InputVoltage Range140-290VAC±5v or 70-145VAC±5v
Frequency50/60Hz(40-70Hz)
OutputVoltage Range220/230VAC or 110/120VAC ±10%(AC mode)      220/230VAC or 110/120VAC ±5% (Battery mode)
Frequency50Hz/60Hz ±5%
Output WaveformSine Wave (AC Mode), Square Wave (Battery mode)
Transfer time< 10ms
BatteryTypeSealed free maintenance lead acid battery
Capacity12V,4AH *1PCS12V,7AH *1PCS12V,7AH *1PCS12V,9AH *1PCS12V,7AH *2PCS12V,9AH *2PCS12V,9AH *2PCS
Recharge Time8 hrs to 90% of capacity full load discharge
ProtectionAuto protect
Back-up time(at a PC load with 15"monitor)8 minutes15 minutes15 minutes20 minutes28 minutes35 minutes35 minutes
FunctionAuto voltage output on AC mode, Auto shutoff if short circuit or overload
DB-9 port,communication softwareOptional RS232, RJ11, RJ45, USB
ProtectionAC modeFuse
Short circuitACFuse
Invert modeAuto protect
AlarmAlarmBattery dischargeAlarm beeps every four seconds
Low battery voltageAlarm beeps every second
OverloadAlarm beeps continuously
Indicator lightAuto adjustGreen lighting: AC mode
Battery DischargeRed lighting: Battery mode
EnvironmentOperating temperature0ºC~40ºC
Operating Humidity0-90% non-condensing
Noise<35dB(1 meter distance)
UPS Dimension(L×W×H)mm235*90*145 291*90*145330*90*145345x122x190
Net weight (N.W)(KG)45.86.59.510.511.5

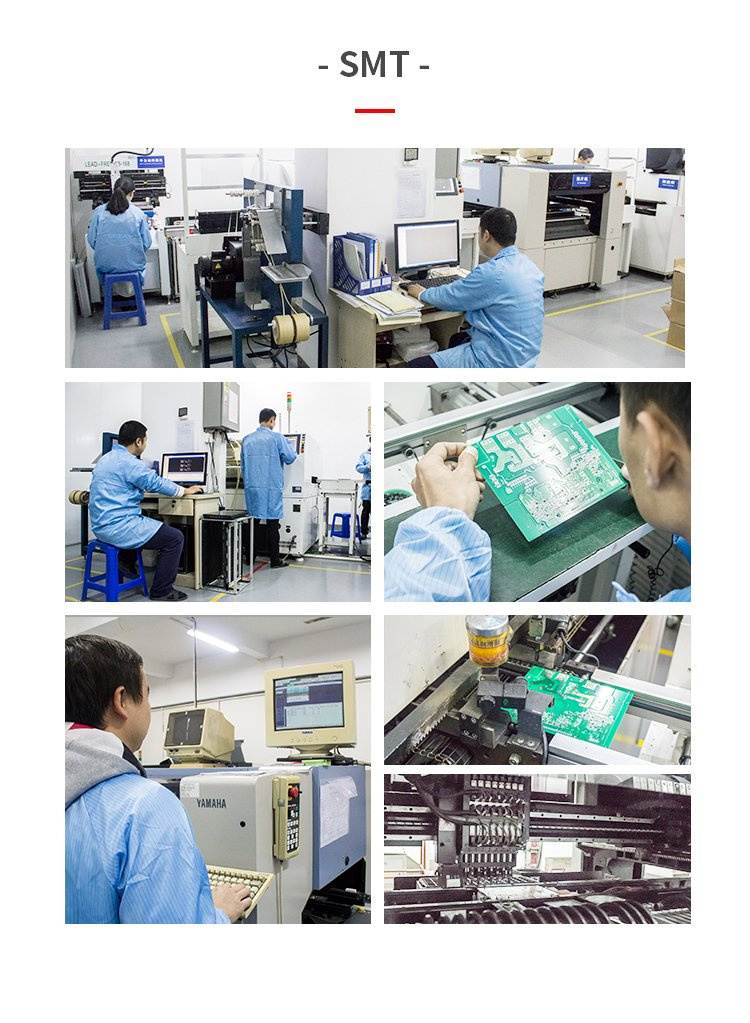

Factory View

About ZLPOWER

Founded in 2007, Shenzhen ZLPOWER Electronics Co., Ltd. (ZLPOWER for short) is a key hi-tech enterprise in state "Torch Plan, " integrating science, industry, trade, and investment into a whole. It has registered capital of RMB 10million, covering a floor area of 2000sq. M, and owning assets of RMB 30 million.

As a large-scale enterprise group with total assets exceeding RMB 30 million, it currently employs more than 300 staff, operates R & D institutions, 10 products lines, and 8 overseas branches and offices for sales and service.

Also as a professional uninterruptible power supply manufacturer in Shenzhen, China, ZLPOWER mainly produce high frequency online UPS, computer PC UPS, rack mount online UPS, low frequency Industry three phase UPS, UPS Inverter, solar inverter, solar charger controller, Solar/UPS Battery and other related products.

In ZLPOWER, we are strictly on quality inspections. We implement strict IOC, IPQC, FQC, OQC, QA, and other quality control measures in every process according to ISO9001, including to raw materials selection, production, package, and shipment.

Thus, we are ISO9001 2008 and SGS certificated, and all our UPS, Inverter power supply products have been approved by CE (LVD/EMC), UL tests. As a result, they are popular among our customers from Italy, Germany, South Africa, Egypt, Mozambique, Nigeria, UAE, Ukraine, Russia, Uzbekistan, Philippines, Chili, Peru, Brazil, Mexico and more.

ZLPOWER is looking for agent worldwide to distribute our quality UPS system, Inverter power and solar products to their local markets. Any interests please welcome to contact us today and look for best power solution.





Our core value is"Survive with high quality, develop with innovation"

1. Your inquiry will be replied in 24hrs.
2. OEM&ODM, any your customized lightings we can help you to design and put into te product.
3. Distributorship is offered for your unique design and some current models.
4. Protection of your sales area, ideas of design and all your private information.
5. Top Quality + Reasonable Price + Responsible After Service = Successful & Win.
