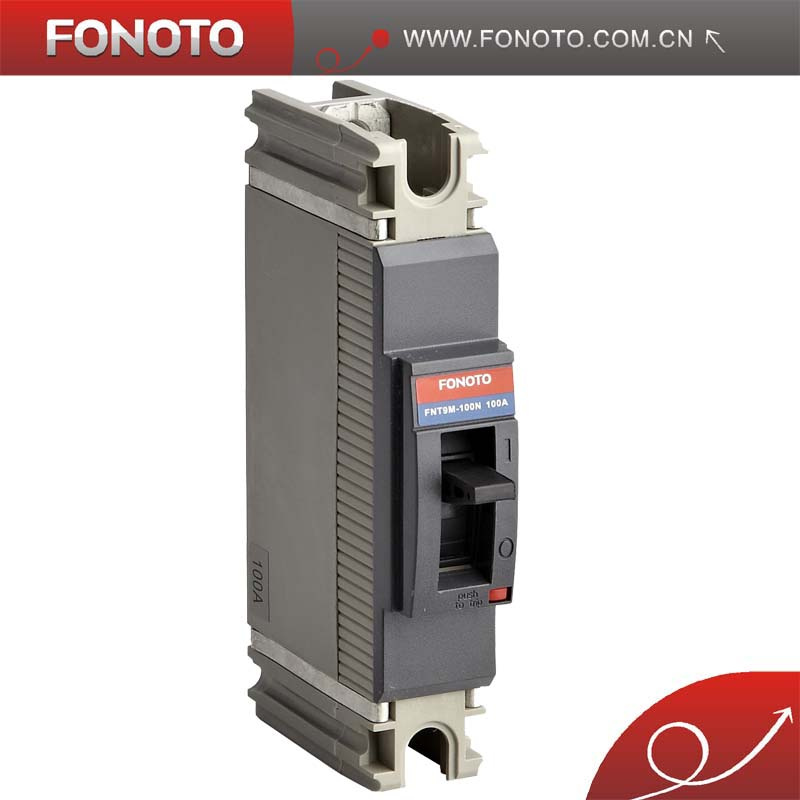

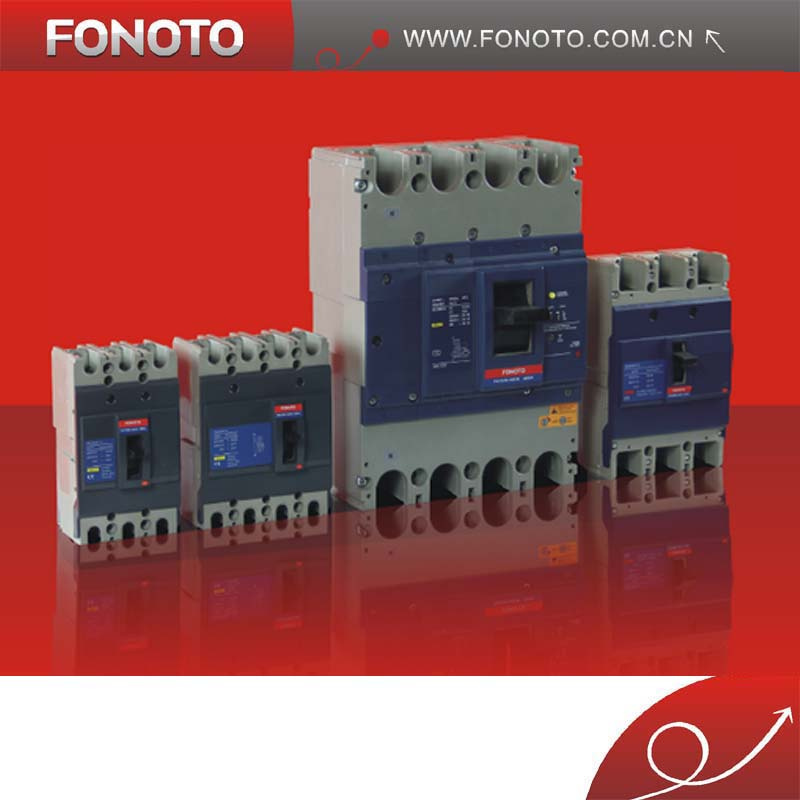

MCCB FNT9M-100H 15-100A 1P1D TMD
Feature:
Most economic MCCB;
More suitable for installation & application;
All parts are made by us, with fresh new materials & moulds.
1. Brand: FONOTO, OEM, ODM
2. HS Code: 8536200000
3. Packing: Export standard Carton
4. Production Capacity: 5000 Per Week
5. Sampls available
6. Certificates: CE(LVD), CCC, ISO9001 etc.
Main Technical data of MCCB FNT9M-100H
Model No.: FNT9M-100H
Circuit breaker application: Distribution
Poles description: 1P
Protected poles description: 1t
Network type:
AC
DC
Network frequency: 50/60 Hz
[In] rated current: 100 A ( 40 °C )
[Ui] rated insulation voltage: 690 V AC 50/60 Hz conforming to IEC60947-2
[Uimp] rated impulse withstand voltage: 6 kV conforming to IEC60947-2
[Ue] rated operational voltage:
125 V DC conforming to IEC 60947-2
415 V AC 50/60 Hz conforming to IEC 60947-2
Circuit breaker rating code: H
Breaking capacity:
Icu 650kA 220/230/240 V AC 50/60 Hz conforming to IEC 60947-2
Icu 30kA 400/415 V AC 50/60 Hz conforming to IEC60947-2
Icu 20kA 440 V AC 50/60 Hz conforming to IEC60947-2
[Ics] rated service breaking capacity:
Ics 30kA 220/230/240 V AC 50/60 Hz conforming to IEC 60947-2
Ics 7kA 400/415 V AC 50/60 Hz conforming to IEC60947-2
Ics 5kA 440 V AC 50/60 Hz conforming to IEC60947-2
Suitability for isolation: Yes conforming to IEC 60947-2
Utilisation category: Category A
Trip unit technology: Thermal-magnetic
Trip unit rating: 100 A ( 50 °C )
Protection type:
Overload protection
Short-circuit protection
Pollution degree:
3 conforming to IEC 947-1
3 conforming to IEC 60664-1
Complementary
Control type: Toggle
Mounting mode: Fixed
Mounting support: Backplate
Upside connection: Front
Downside connection: Front
Mechanical durability: 8500 cycles
Electrical durability: Category A: 1500 cycles 415 V AC 50/60 Hz conforming to IEC 60947-2
Connection pitch: 25 mm
Local signalling: Positive contact indication
Neutral protection setting: Without protection
Earth-leakage protection: Without
Height: 130 mm
Width: 25 mm
Depth: 60 mm
Environment Standards: GB 14048.2, IEC 60947-2, JIS C8201-2-2
NEMA AB1
IP degree of protection: IP20 conforming to IEC 60529
IK degree of protection: IK07 conforming to IEC 62262
Ambient air temperature for operation: -25...70 °C
Ambient air temperature for storage: -35...85 °C
| Compliance with standards: |
| International standards: |
| IEC 947-1: General(GB/T 14048.1); |
| IEC 947-2: Circuit Breaker(GB/T 14048.2); |
| IEC 947-4: Contractors and Motor Starters (GB/T 14048.4); |
| IEC 947-5: Control Devices and Switches; Automatic Control Element(GB/T 14048.5) |
| National Standards: |
| GB 14048.1 General; |
| GB 14048.2 Circuit Breaker. |
| Working condition: |
| Protection: Power distribution system protection, Motor protection |
| Altitude: 2000m (690VAC)... 5000m(440VAC) |
| Payment: |
| 1. We usually use T/T. 30% deposit and 70% before shipping. |
| 2. L/C also acceptable2 |
| Warranty: |
| 1. We provide 18 months warranty. |
Zhejiang FOTONO Technology Co., Ltd. is a high technology company which is member of electric appliance industrial association. It is professional manufacture of low-voltage electrical appliances, especially in Moulded Case Circuit Breaker (MCCB), Temperature Controller, Distribution Box and intelligent household electrical products etc.

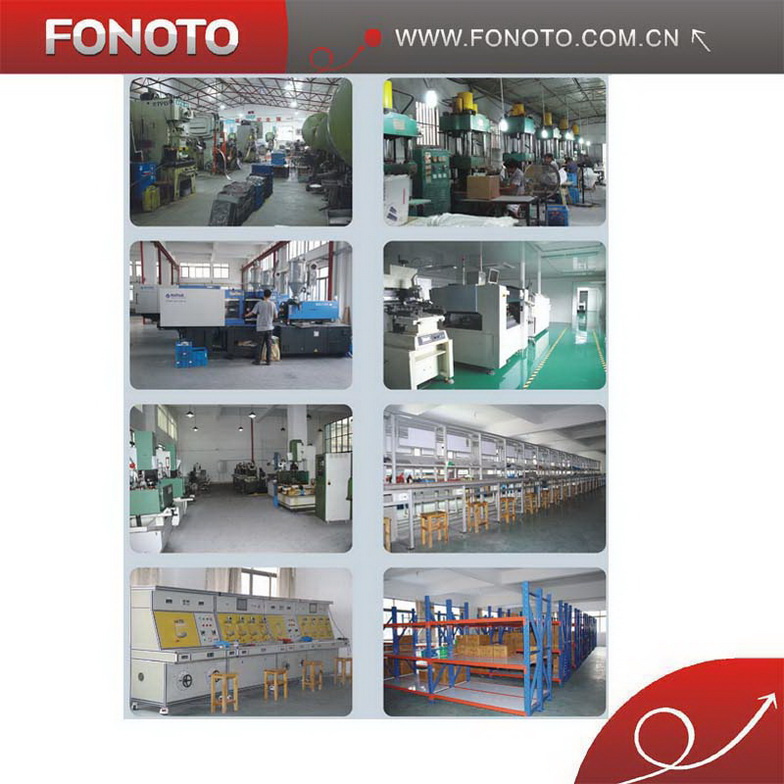

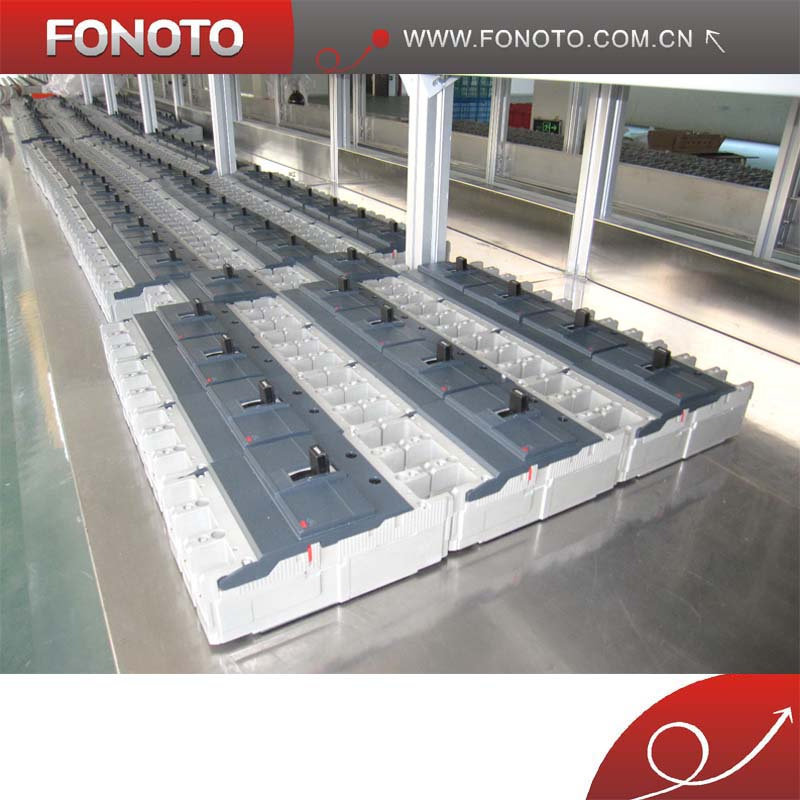

FONOTO covers 30000m2 areas, including 250 staffs and more than 30 professional technicians and engineers. We enjoy completely production lines, advanced production technique and exactly testing equipment. Production lines are divided into R&D of new products, Mould Design Base, Injection Production Base, Stamping production line, Intelligent PCB Base, and production Assembly lines of MCCB, Temperature Controller, Distribution Box etc.
