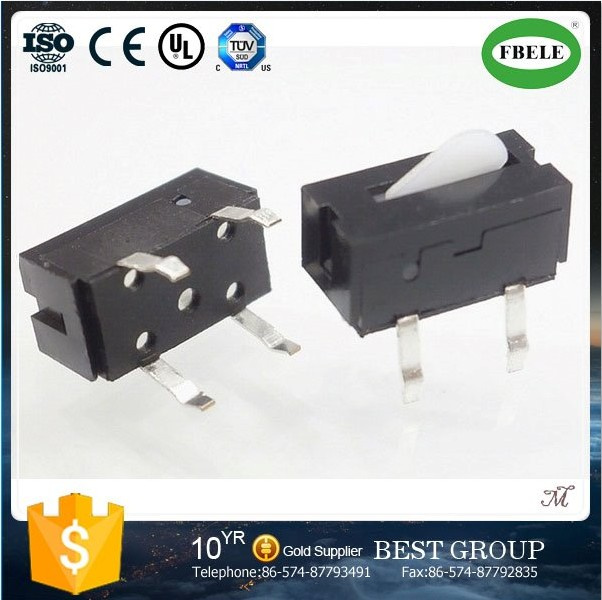

40gf DIP 4.8*10mm Test Tact Switch

Prod Model:	FBTC-4810
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Model Number:	Fbtc-4810
Operating Strength:	40GF+/-10GF

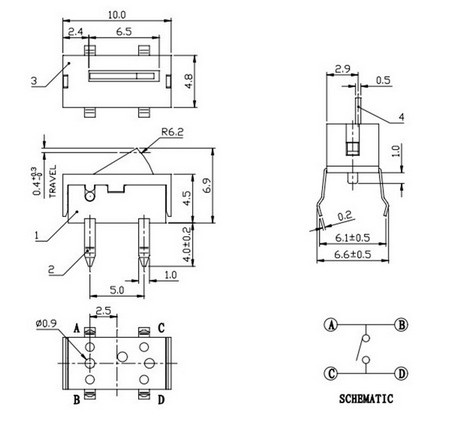

Specifications:	4.8*10.0*4.5*6.9mm
Contact Resistance:	200mohm Max
Insulation Resistance:	100mohm Min.100V DC
Structure:	1-Point Contact
Package:	DIP Plug Taping Package
Application:	Household Appliances
Shrapnel:	Silver
