Janson Controls 2017 New Below Brake Resistor (2000W)
Ceramic Resistor
Power Resistor
Wirewound Resistor
Bellows Resistor
RXHG resistor
---------------------------------------------------------------------------------------------------------

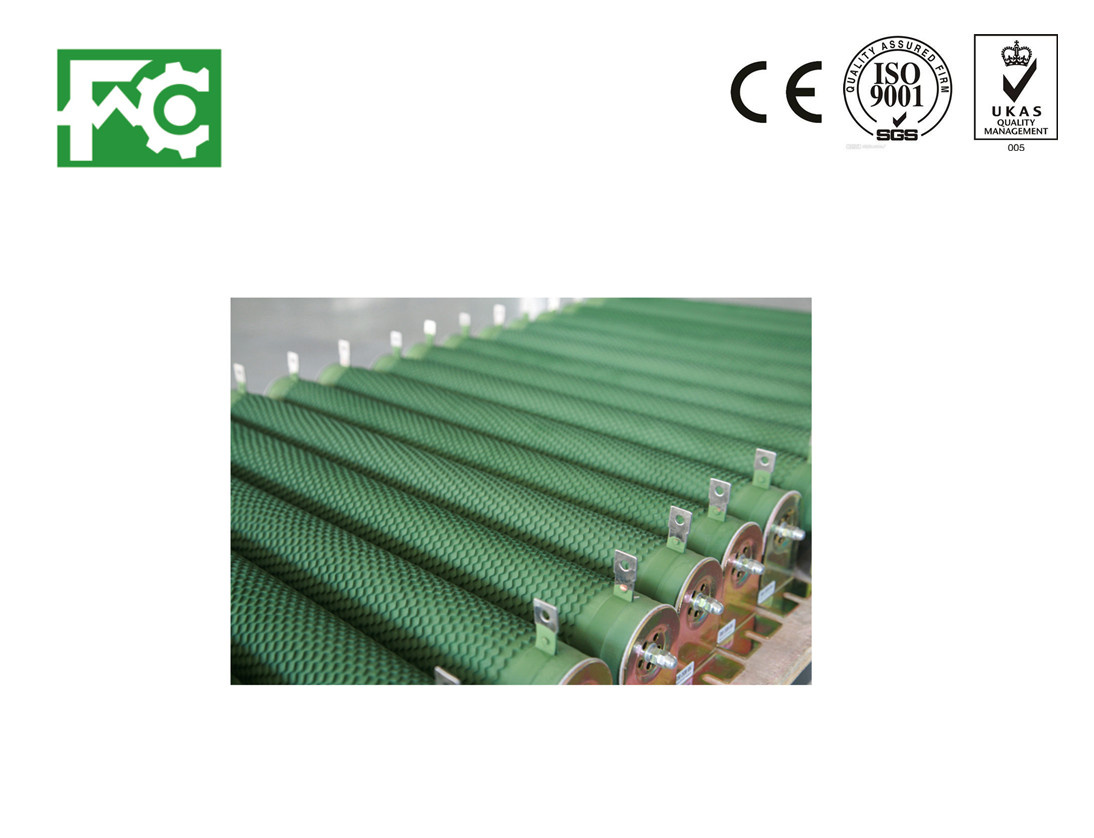

Two terminal extensions are fixed on both ends of a ceramic tube on whose surface winds wave-shaped alloy resistance wire and a high temperature-resistant and fireproof coating are applied. The ceramic tube can function as resistance wire skeleton and heat radiator as well. This product can be customized to special needs of customers and applicable to simulation load test, equipment discharge, automated control and inverter's energy loss brake.
--------------------------------------------------------------------------------------------------------
RXHG
Technical paremeters
power range: 50W-2500W
voltage range: 0.5KV-10KV optional
resistance range: 1R-1KR
pressure: AC2.5KV-20KV/1min 50Hz optional.
IP rating: IP00
vibration: 1g.
rated temperature rise: 375 degrees.
drift: 80-400ppm/degrees
Fluid contained material: 0Cr25AL5/Ni80Cr20 optional.
Advantages: high-voltage work
Disadvantages: less seismic
Packing: carton packaging
Specification
rated power

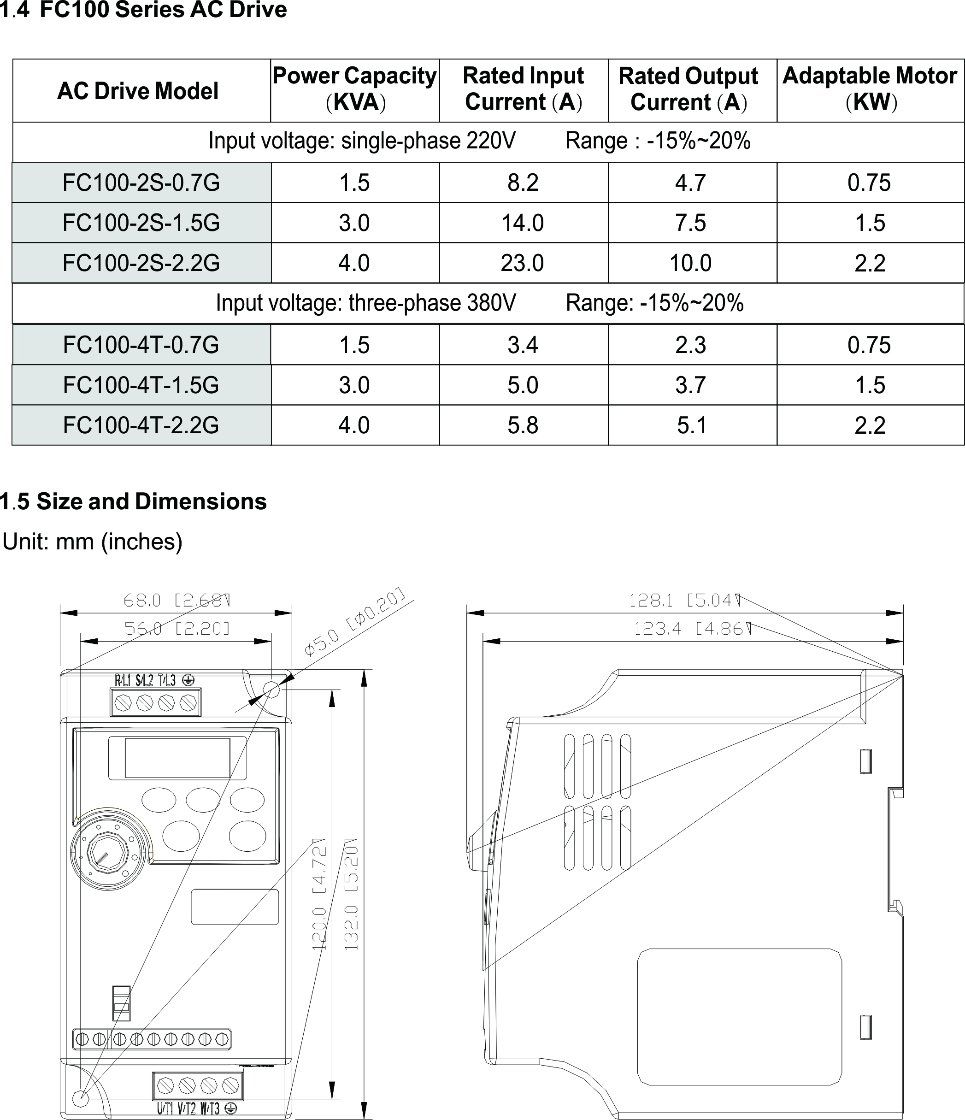

(w) | specification (mm) |
L1(±2) | L2(±5) | L3(±3) | D(±2) | B | B1 | H | H1(±3) | N | d | O |
50 | 102 | 124 | 146 | 28 | 6.5 | 28 | 28 | 61 | 10 | 4.5 | 1.2 |
60 | 102 | 124 | 146 | 28 | 6.5 | 28 | 28 | 61 | 10 | 4.5 | 1.2 |
80 | 152 | 174 | 196 | 28 | 6.5 | 28 | 28 | 61 | 10 | 4.5 | 1.2 |
100 | 182 | 204 | 226 | 28 | 6.5 | 28 | 28 | 61 | 10 | 4.5 | 1.2 |
120 | 182 | 204 | 226 | 28 | 6.5 | 28 | 28 | 61 | 10 | 4.5 | 1.2 |
150 | 195 | 217 | 239 | 40 | 8 | 40 | 41 | 81 | 12 | 5.5 | 2.0 |
200 | 195 | 217 | 239 | 40 | 8 | 40 | 41 | 81 | 12 | 5.5 | 2.0 |
300 | 282 | 304 | 326 | 40 | 8 | 40 | 41 | 81 | 12 | 5.5 | 2.0 |
400 | 282 | 304 | 326 | 40 | 8 | 40 | 41 | 81 | 12 | 5.5 | 2.0 |
500 | 316 | 338 | 360 | 50 | 8 | 50 | 45 | 101 | 16 | 6 | 2.0 |
600 | 345 | 367 | 389 | 40 | 8 | 40 | 41 | 81 | 12 | 5.5 | 2.0 |
750 | 316 | 338 | 360 | 50 | 8 | 50 | 45 | 101 | 16 | 6 | 2.0 |
1000 | 300 | 325 | 350 | 60 | 8.5 | 60 | 60 | 119 | 16 | 6 | 2.0 |
1200 | 415 | 440 | 465 | 60 | 8.5 | 60 | 60 | 119 | 16 | 6 | 2.0 |
1500 | 415 | 440 | 465 | 60 | 8.5 | 60 | 60 | 119 | 16 | 6 | 2.0 |
2000 | 510 | 535 | 560 | 60 | 8.5 | 60 | 60 | 119 | 16 | 6 | 2.0 |
2500 | 600 | 625 | 650 | 60 | 8.5 | 60 | 60 | 119 | 16 | 6 | 2.0 |
| Model | Recommend power of braking resistor | Recommend resistance value of braking resistor | Braking unit | Remarks |
| Single-phase 220V |
| FC155-0R4GS2 | 80W | ≥ 200Ω | Built-in as standard | No special instructions |
| FC155-R75GS2 | 80W | ≥ 150Ω |
| FC155-1R5GS2 | 100W | ≥ 100Ω |
| FC155-2R2GS2 | 100W | ≥ 70Ω |
| Three-phase 220V |
| FC155-0R4GT2 | 150W | ≥ 150Ω | Built-in as standard | No special instructions |
| FC155-R75GT2 | 150W | ≥ 110Ω |
| FC155-1R5GT2 | 250W | ≥ 100Ω |
| FC155-2R2GT2 | 300W | ≥ 65Ω |
| FC155-3R7GT2 | 400W | ≥ 45Ω |
| FC155-5R5GT2 | 800W | ≥ 22Ω |
| FC155-7R5GT2 | 1000W | ≥ 16Ω |
| FC155-011GT2 | 1500W | ≥ 11Ω | Built-in as option | Add "-B" to the model |
| FC155-015GT2 | 2500W | ≥ 8Ω |
| FC155-018GT2 | 3.7 kW | ≥ 8.0Ω |
| FC155-022GT2 | 4.5 kW | ≥ 8Ω |
| FC155-030GT2 | 5.5 kW | ≥ 4Ω |
| FC155-037GT2 | 7.5 kW | ≥ 4Ω |
| FC155-045GT2 | 4.5 kW×2 | ≥ 4Ω×2 | External | - |
| FC155-055GT2 | 5.5 kW×2 | ≥ 4Ω×2 | External | - |
| FC155-075GT2 | 16k W | ≥ 1.2Ω | External | - |
| Three-phase 380V |
| FC155-R75G/1R5PT4 | 150W | ≥ 300Ω | Built-in as standard | No special instructions |
| FC155-1R5G/2R2PT4 | 150W | ≥ 220Ω |
| FC155-2R2G/3R7PT4 | 250W | ≥ 200Ω |
| FC155-3R7G/5R5PT4 | 300W | ≥ 130Ω |
| FC155-5R5G/7R5PT4 | 400W | ≥ 90Ω |
| FC155-7R5G/011PT4 | 500W | ≥ 65Ω |
| FC155-011G/015PT4 | 800W | ≥ 43Ω |
| FC155-015G/018PT4 | 1000W | ≥ 32Ω |
| FC155-018G/022PT4 | 1300W | ≥ 25Ω | Built-in as option | Add "-B" to the model |
| FC155-022G/030PT4 | 1500W | ≥ 22Ω |
| FC155-030G/037PT4 | 2500W | ≥ 16Ω |
| FC155-037G/045PT4 | 3.7 kW | ≥ 16Ω |
| FC155-045G/055PT4 | 4.5 kW | ≥ 16Ω | Built-in as option | Add "-B" to the model |
| FC155-055G/075PT4 | 5.5 kW | ≥ 8Ω |
| FC155-075G/090PT4 | 7.5 kW | ≥ 8Ω |
| FC155-090G/110PT4 | 4.5 kW×2 | ≥ 8Ω×2 | External | |
| FC155-110G/132PT4 | 5.5 kW×2 | ≥ 8Ω×2 |
| FC155-132G/160PT4 | 6.5 kW×2 | ≥ 8Ω×2 |
| FC155-160G/200PT4 | 16kW | ≥ 2.5Ω | External | |
| FC155-200G/220PT4 | 20 kW | ≥ 2.5Ω |
| FC155-220G/250PT4 | 22 kW | ≥ 2.5Ω | External | |
| FC155-250G/280PT4 | 12.5 kW×2 | ≥ 2.5Ω×2 |
| FC155-280G/315PT4 | 14 kW×2 | ≥ 2.5Ω×2 | External | |
| FC155-315G/355PT4 | 16 kW×2 | ≥ 2.5Ω×2 |
| FC155-355G/400PT4 | 17 kW×2 | ≥ 2.5Ω×2 |
| FC155-400G/450PT4 | 14 kW×3 | ≥ 2.5Ω×3 |
