| Prod Model: |
42HS44-1504A |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Step Angle: |
1.8 |
| Frame Size: |
42mm X42mm |
| Current: |
1.5A |
| Resistance: |
2 |
| Inductance: |
3.6mh |
| Holding Torque: |
4kg.Cm |
| Motor Body Length: |
44mm |
| Lead Wires: |
4 |
| Number Of Stator: |
Two-Phase |
| Excitation Mode: |
HB-Hybrid |
| Type: |
Magnetic-Electric |
| Application: |
CNC Machine |
| Operate Mode: |
Driver |
| Certification: |
Ce |
| Brand: |
Jss |
Product Description
Description:

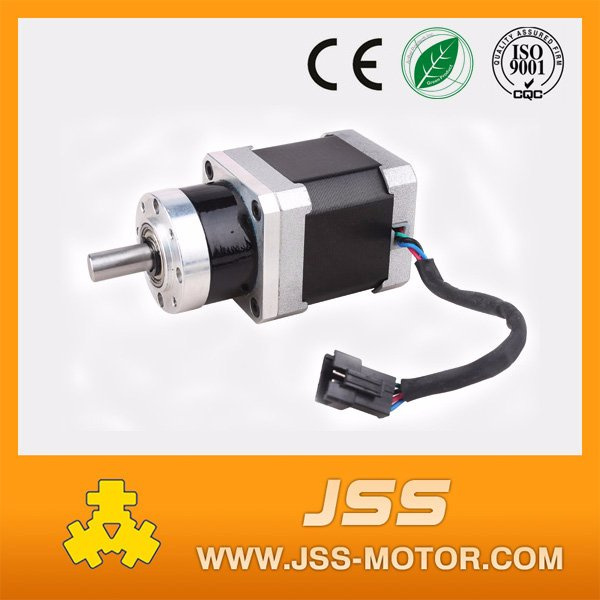

1. NEMA 17 geared stepper motor with gearbox
2. Gear ratio is different, you can choose what you need.
Step Angle Accuracy: ± 5%
Resistance Accuracy: ± 10%
Inductance Accuracy: ± 20%
Temperature Rise: 80° C Max
Ambient Temperature: -20° C~+50° C
Insulation Resistance: 100MΩ Min., 500VDC
Dielectric Strength: 500VAC for one minute
Shaft Radial Play: 0.02Max (450g-load)
Shaft Axial Play: 0.08Max (450g-load)
Standard Gear Ratio:
3.71: 1, 5.18: 1, 14: 1, 19: 1, 27: 1, 51: 1, 71: 1, 100: 1, 139: 1
Precision Gear Ratio:
4: 1, 5: 1, 7: 1, 9: 1, 10: 1, 16: 1, 20: 1, 25: 1, 28: 1, 35: 1, 36: 1, 40: 1, 45: 1, 49: 1, 50: 1, 63: 1, 70: 1, 81: 1, 90: 1, 100: 1
Application:
Our products can be applied to printing equipment, engraving machine textile machine, computer external application equipment, medical instruments, stage light equipment, robot, CNC machine tool and other automatic controlling system.
We also produce linear stepper motor, gearbox stepper motor, stepper motor with brake, drivers for all the motors, and closed loop stepper motors and drivers. We also have accessories such as power supplys, spindles and inverters, breakout board, TB6560 driver board, timing pulleys and so on.
Contact information:
Tel: 86-519-86922120
Welcome to consult! ! ! ! ! ! ! ! ! ! ! ! !
JSS MOTOR YOUR BEST CHOICE!
| TYEP | phase No. | step angle | current (A) | resistance(Ω±10) | inductance (mH±20) | holding torque(kg.cm) | length (mm) | |
| 42HS34-0334 | 2 | 1.8 | 0.33 | 36 | 46 | 2.4 | 34 | 4 |
| 42HS34-0404 | 2 | 1.8 | 0.4 | 30 | 35 | 3.2 | 34 | 4 |
| 42HS34-0606 | 4 | 1.8 | 0.6 | 5 | 3 | 1.2 | 34 | 6 |
| 42HS34-0804 | 2 | 1.8 | 0.8 | 6.5 | 4.6 | 2.3 | 34 | 4 |
| 42HS34-0954 | 2 | 1.8 | 0.95 | 4 | 3 | 1.8 | 34 | 4 |
| 42HS34-1004 | 2 | 1.8 | 1 | 2.6 | 3.2 | 1.8 | 34 | 4 |
| 42HS34-1334 | 2 | 1.8 | 1.33 | 2.1 | 2.5 | 2.2 | 34 | 4 |
| 42HS34-1504 | 2 | 1.8 | 1.5 | 1.9 | 2.5 | 2.5 | 34 | 4 |
| 42HS34-1704 | 2 | 1.8 | 1.7 | 1.3 | 1.8 | 2.8 | 34 | 4 |
| 42HS34-2004 | 2 | 1.8 | 2 | 0.8 | 1.1 | 2.5 | 34 | 4 |
| 42HS35-0504 | 2 | 1.8 | 0.5 | 10 | 20 | 3 | 35 | 4 |
| 42HS40-0306 | 4 | 1.8 | 0.3 | 31 | 24 | 2.5 | 40 | 6 |
| 42HS40-0404 | 2 | 1.8 | 0.4 | 30 | 60 | 4 | 40 | 4 |
| 42HS40-0804 | 2 | 1.8 | 1.2 | 6.5 | 12 | 4 | 40 | 4 |
| 42HS40-0806 | 4 | 1.8 | 0.8 | 7.5 | 7 | 2.6 | 40 | 6 |
| 42HS40-1204 | 2 | 1.8 | 1.2 | 5.5 | 11 | 5.2 | 40 | 4 |
| 42HS40-1206 | 4 | 1.8 | 1.2 | 3.2 | 2.8 | 2.8 | 40 | 6 |
| 42HS40-1304 | 2 | 1.8 | 1.3 | 2.6 | 4.2 | 3.8 | 40 | 4 |
| 42HS40-1504 | 2 | 1.8 | 1.5 | 2.5 | 5 | 4.5 | 40 | 4 |
| 42HS40-1704 | 2 | 1.8 | 1.7 | 2 | 3 | 4.2 | 40 | 4 |
| 42HS44-0804 | 2 | 1.8 | 0.8 | 14 | 33 | 5.2 | 44 | 4 |
| 42HS44-1004 | 2 | 1.8 | 1 | 4.5 | 6 | 3.8 | 44 | 4 |
| 42HS44-1504 | 2 | 1.8 | 1.5 | 2 | 3.6 | 4 | 44 | 4 |
| 42HS44-1704 | 2 | 1.8 | 1.7 | 1.8 | 3.8 | 4.2 | 44 | 4 |
| 42HS48-0354 | 2 | 1.8 | 0.35 | 56 | 94.6 | 5.5 | 48 | 4 |
| 42HS48-0406 | 4 | 1.8 | 0.4 | 30 | 28 | 3.5 | 48 | 6 |
| 42HS48-0606 | 4 | 1.8 | 0.6 | 19.5 | 13.5 | 3.8 | 48 | 6 |
| 42HS48-1004 | 2 | 1.8 | 1 | 4.6 | 4 | 3.5 | 48 | 4 |
| 42HS48-1204 | 2 | 1.8 | 1.2 | 3.2 | 4.2 | 4.2 | 48 | 4 |
| 42HS48-1304 | 2 | 1.8 | 1.3 | 3 | 5.5 | 5.2 | 48 | 4 |
| 42HS48-1504 | 2 | 1.8 | 1.5 | 1.4 | 2.5 | 4.8 | 48 | 4 |
| 42HS48-1504 | 2 | 1.8 | 1.5 | 2.8 | 4.8 | 5.5 | 48 | 4 |
| 42HS48-1684 | 2 | 1.8 | 1.68 | 1.8 | 2.8 | 4.8 | 48 | 4 |
| 42HS48-1804 | 2 | 1.8 | 1.8 | 1.5 | 2.6 | 5.2 | 48 | 4 |
| 42HS48-2504 | 2 | 1.8 | 2.5 | 1.2 | 1.8 | 5.5 | 48 | 4 |
| 42HS54-1504 | 2 | 1.8 | 1.5 | 3 | 6.5 | 6.8 | 54 | 4 |
| 42HS60-0304 | 2 | 1.8 | 0.3 | 45 | 110 | 6 | 60 | 4 |
| 42HS60-1004 | 2 | 1.8 | 1 | 24 | 65 | 7 | 60 | 4 |
| 42HS60-1206 | 4 | 1.8 | 1.2 | 6 | 7 | 6.5 | 60 | 6 |
| 42HS60-1504 | 2 | 1.8 | 1.5 | 2.5 | 6 | 7 | 60 | 4 |
