| Prod Model: |
42BYGH412 Series |
| Motor Series: |
42 Bygh |
| Step Angle: |
1.8 Degree |
| Shaft End Length: |
141mm (5.55 in) |
| Shaft: |
Screw Shaft, Customized Shaft Length |
| Connectors: |
Connectors, Lead Wires |
| Motor Length: |
40mm (1.57 in) |
| Holding Torque: |
420mnm (59.47oz-in) |
| Rated Current: |
1.0 a DC |
| Payment Term: |
30% Deposit, 70% Balance Before Shipment |
| Number Of Stator: |
Two-Phase |
| Excitation Mode: |
HB-Hybrid |
| Type: |
Magnetic-Electric |
| Operate Mode: |
Two-Phase Eight-Parts |
| Brand: |
Shengyang |
Product Description

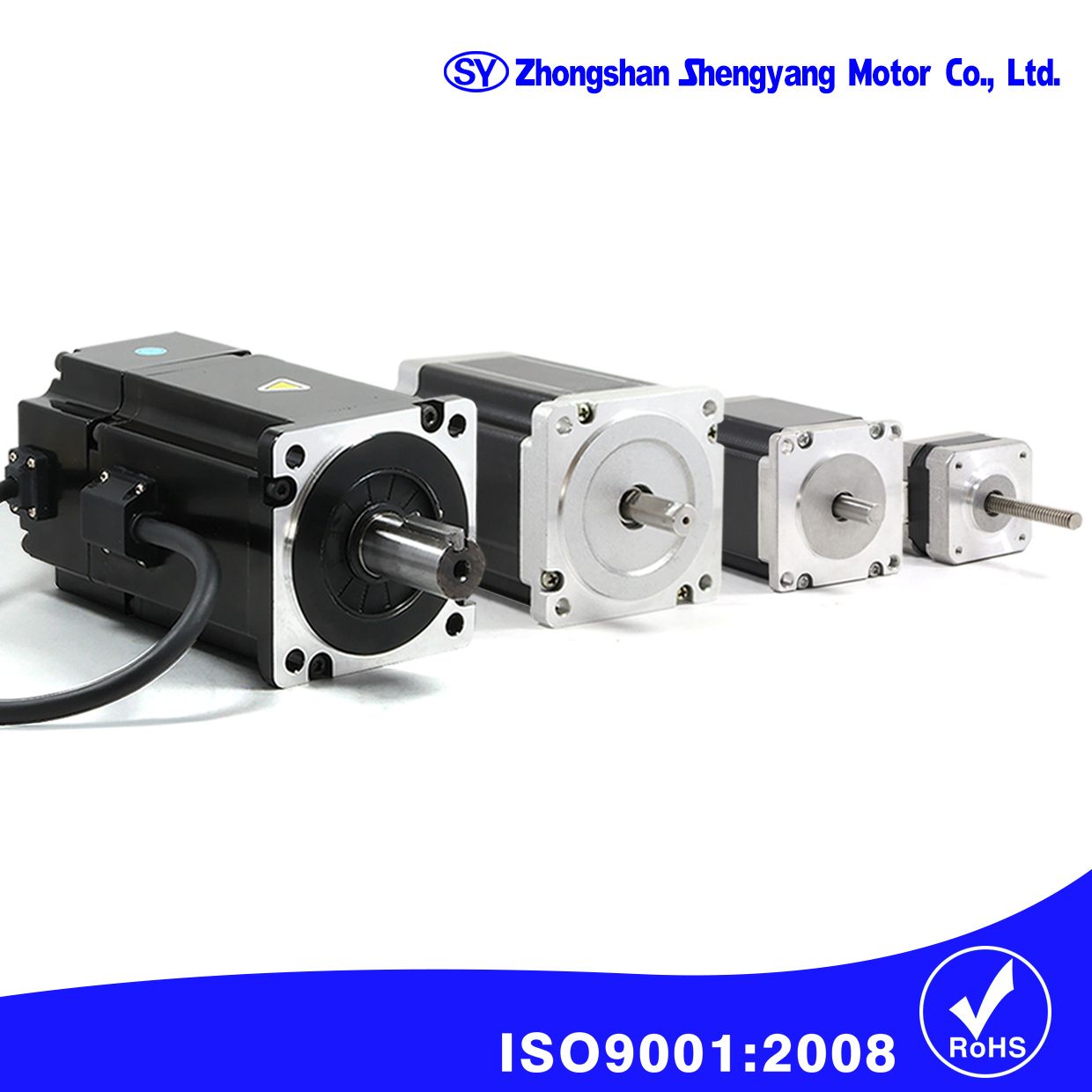

0.42 Nm 42mm (NEMA 17) Schrittmotor
Features: High torque
Low noise
Smallsize
Product Description:
1. Specifications:
Step Angle: 1.8°± 5% full step, no load
Shaft End Length: 141mm (5.55in)
Shaft: Screw Shaft, Customized Shaft Length
Connectors: Connectors, Lead Wires
Motor Length: 40mm (1.57in)
Holding Torque: 420mNm (59.47oz-in)
Rated Current: 1.0 A DC
Resistance per Phase: 6.7ohm
Inductance per Phase: 9.8mH
Ambient Temperature: -24ºC- +60ºC
Relative humidity: 90% MAX
Resistance Accuracy: ± 10%
Insulation Resistance: Larger than 100MΩ 500V DC
Dielectric Strength: 600V AC for 1S, leakage current less than 1mA
2. Note:
Performance and parameters can be customized, just simply send your motor diagram or samples to us, the competitive price will be sent to you soon for your reference.
Prices is decided by the motor's holding torque, Body length and other data, contact us and get the latest the price list.
3.Payment term:
T/T in advance, 30% deposit, 70% balance before shipment.
About Zhongshan Shengyang Motor Co., Ltd.:
Zhongshan Shengyang Motor Co., Ltd., established in 2011, has anual production capability of more than 3 million pieces for stepper motor and micro motor. We passed ISO9001:2008 quality system, all products can be customized, welcome to contact us for more details.
Contacts: Kanix Ik
Mobile: (+86) 1552 1524 907
Homepage: shengyangmotor.en.made-in-china.com
Series
&
Length | Model
Number | Holding
Torque | Rated
Current | Resistance
per Phase | Inductance
per Phase |
| mNm oz-in | A | ohm | Mh |
42BYGH0
26mm
(1.02 in.) | 42BYGH001 | 120 17 | 0.3 | 42 | 48 |
| 42BYGH007 | 160 22.66 | 0.4 | 10.4 | 14 |
42BYGH1
33mm
(1.30 in.) | 42BYGH104 | 275 38.94 | 0.4 | 40 | 35 |
| 42BYGH107 | 250 35.40 | 0.4 | 22 | 30 |
42BYGH2
34mm
(1.34 in.) | 42BYGH202 | 220 31.15 | 0.5 | 30 | 37 |
42BYGH3
40mm
(1.57in) | 42BYGH312 | 530 75.05 | 0.6 | 26 | 48 |
42BYGH4
40mm
(1.57 in.) | 42BYGH412 | 420 59.47 | 1 | 6.7 | 9.8 |
| 42BYGH413 | 300 42.48 | 1 | 3.5 | 5 |
42BYGH11
34mm
(1.34 in.) | 42BYGH1101 | 240 33.98 | 0.4 | 30 | 45 |
| 42BYGH1102 | 280 39.65 | 0.84 | 5.75 | 9.3
|
