42mm Stepper Motor for Embroidery Machine Part
| Price: |
US $ 29.5-34/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union |
42mm Stepper Motor For Embroidery Machine Part

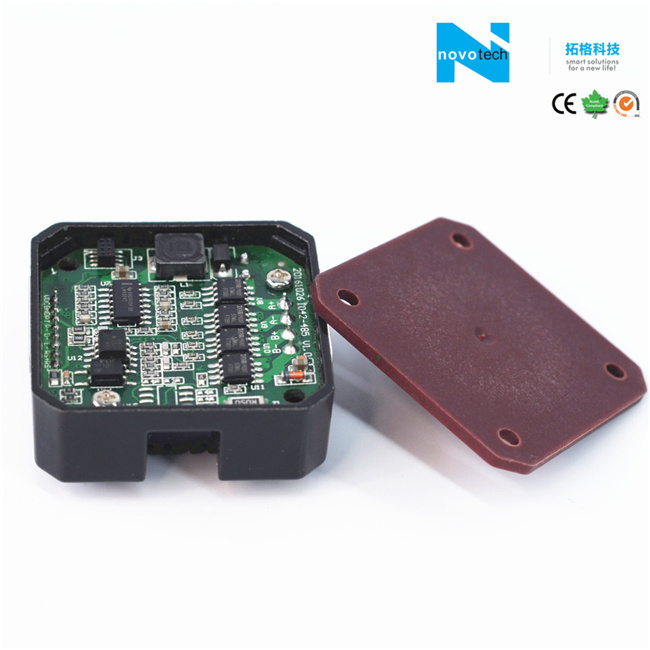

Novotech's stepper driver represents the highest level in domestic.,with 32-bit DSP technology, parameter auto adjustment function, automatic optimization of operating parameters for different motors, to maximize motor performance. Built-in Micro-sub-technology, in the low micro-step conditions, the motor can run smoothly, temperature rise and noise are 30% to 50% lower than traditional driver,and the high speed torque increases 20%.Model Guide| Motor type | 42IO03 | 42IO06 | 42IO08 |
| Holding torque | 0.3N•M | 0.68N•M | 0.8N•M |
| Motor current | 1.0A | 1.5A | 2.0A |
| Driver combined with motor | Free combination, can be split drive, or integrate drive |
| Step angle / motor pole pair | 1.8°/50 pairs pole |
| Recommended application | Installation volume is limited, running smoothly, low heat |
| Operation voltage | 12-32Vdc,typical voltage 24Vdc |
| Overvoltage protection | 38V±2V |
| Voltage control method | 32-bit DSP control technology |
| Pulse limit frequency | 500KHz(factory default 200KHz) |
| Protection | overcurrent, overvoltage and undervoltage alarm |

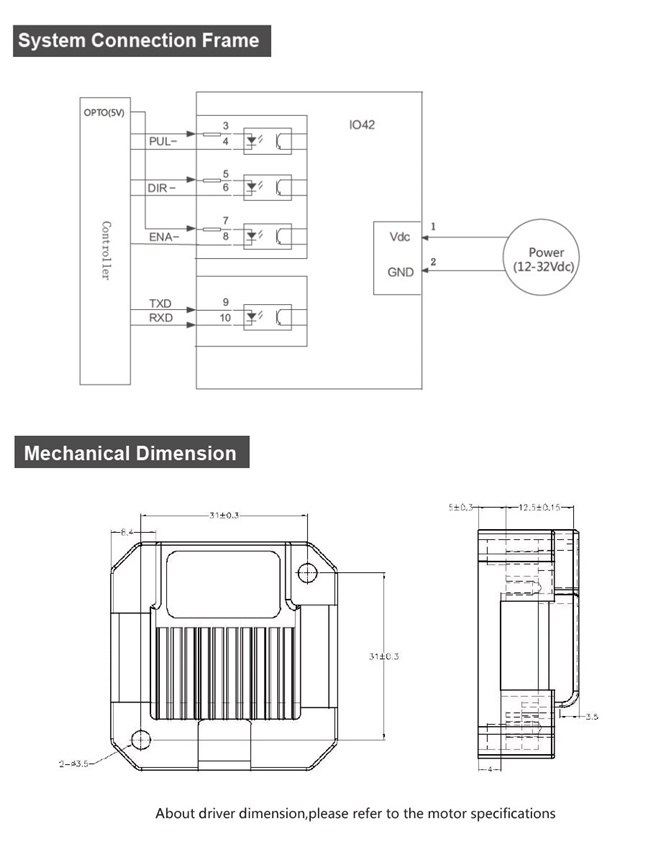

| Input signal | Pulse, direction and enable signal are single-end signal input,interface level is 5 Vdc,
other levels need to connect external current limiting resistor. |
| Subdivision | Default 1600 / rev, through the DIP switch or debugging software to set the subdivision
(200-51200) |

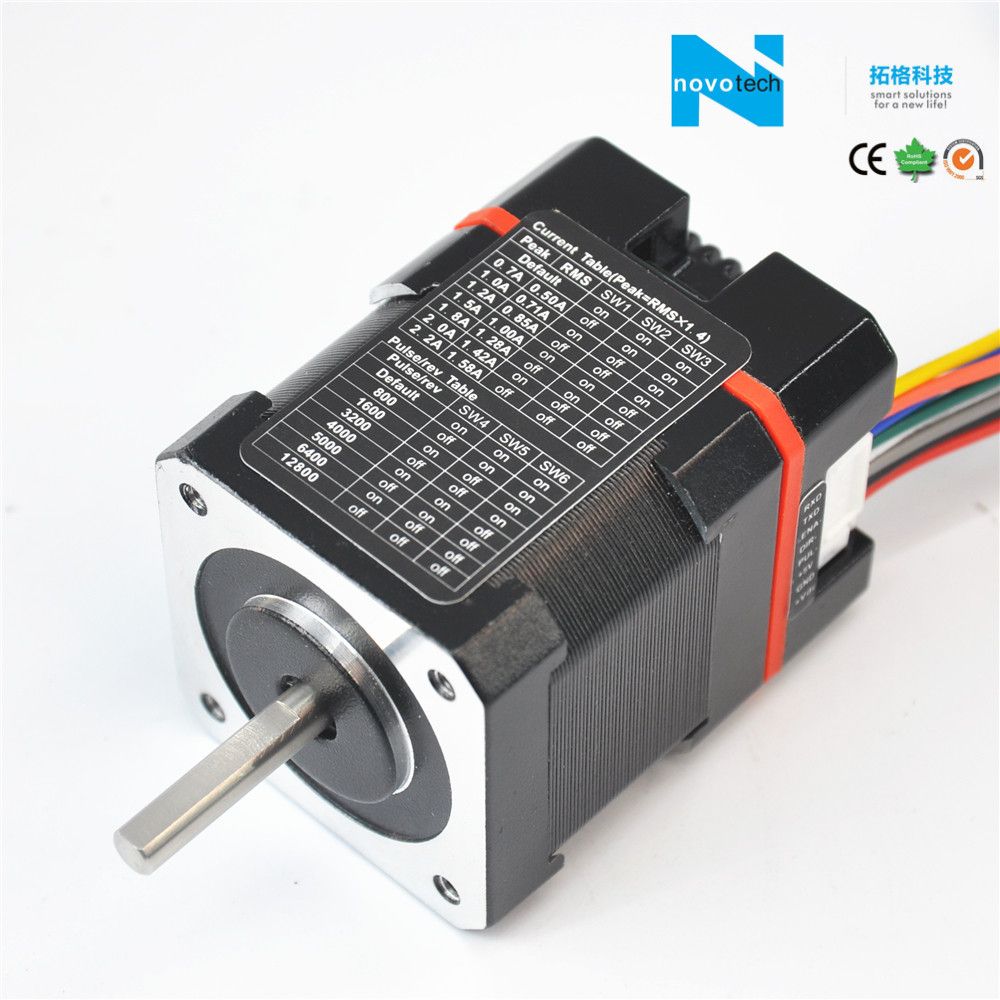

Subdivision Setting| Step/Rev. | SW1 | SW2 | SW3 |
| De4fault[400] | ON | ON | ON |
| 800 | OFF | ON | ON |
| 1600 | ON | OFF | ON |
| 3200 | OFF | OFF | ON |
| 4000 | ON | ON | OFF |
| 5000 | OFF | ON | OFF |
| 6400 | ON | OFF | OFF |
| 12800 | OFF | OFF | OFF |
Current setting| Output peak current | Output RMS current | SW1 | SW2 | SW3 |
| Default 1.5A[PK] | ON | ON | ON |
| 0.7A | 0.50A | OFF | ON | ON |
| 1.0A | 0.71A | ON | OFF | ON |
| 1.2A | 0.85A | OFF | OFF | ON |
| 1.5A | 1.00A | ON | ON | OFF |
| 1.8A | 1.28A | OFF | ON | OFF |
| 2.0A | 1.42A | ON | OFF | OFF |
| 2.2A | 1.58A | OFF | OFF | OFF |
Note : All above is normally used, and we can customize according to your request or choose the suitable model for you, please tell us following parameters: current, voltage, holding torque, body length,the application area. ApplicationOur products are widely used in 3d and inject printers, CNC routers, Engraving Machines, Stage Lighting Control, Security Surveillance, Video Equipment, Laser workstation, Carving Machine, Office Automation,Smart Toy, Digital Controlled Machinery,Analytical and Medical Instruments, Textile Equipment, Embroidery Machine, Precision Telescope Positioning Systems, High Speed Dome Camera,Robotic and other automatic equipment.Packaging and shipping1.Outer packing: Standard export carton with required shipping marks
2.Inner packing: Waterproof packing with shock absorbing EPE and cardboard surrounded
3.As per the clients requirementsOur service1.Working time : 8:00 a.m - 10:00 p.m .Any questions, please tell us freely, we will be reply you asap.
2.Lead time : For samples, 2 to 5 days will be OK. For mass production, the lead time depend on the quantities you need.
3.Warrantity period : 18 months and Life-long maintenance service for the product.
4.We accept products customize.FAQQ1: How to choose the suitable stepper or servo motor?
A1: There are serveral important items: size, length, holding torque, voltage, current etc.After confirm them and told us, we can choose the suitable one for you.
Q2: Any other methods to finalize the model?
A2: Sure, you can send us the model you are using, we can help you find the suitable one.
Q3:How to guarantee the Quality of Industrial Parts?
A3: We have the integrated system for industrial parts quality control. We have IQC (incoming quality control), IPQCS (in process quality control section), FQC (final quality control) and OQC (out-going quality control) to control each process of industrial parts prodution.
Q4:What's the Advantage of Your Parts for Industry Products?
A4:1.The advantage of our products is the competitive prices, fast delivery and high quality. Our
employees are responsible-oriented, friendly-oriented,and diligent-oriented. Our products are featured by strict tolerance, smooth finish and long service time.2.Before we send out the goods,we check them more than three times.Contact

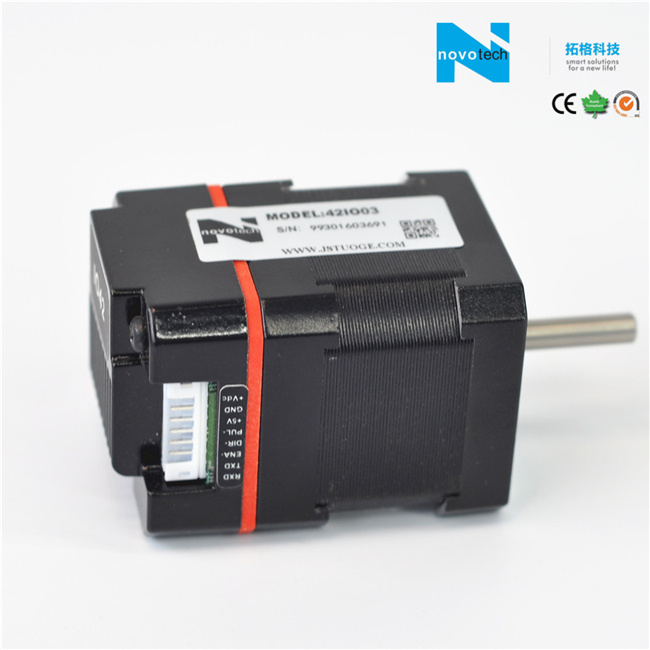

| Prod Model: |
42IO03 |
| Name: |
42mm Stepper Motor for Embroidery Machine Part |
| Number Of Stator: |
Two-Phase |
| Excitation Mode: |
HB-Hybrid |
| Type: |
Magnetic-Electric |
| Operate Mode: |
Driving |
| Certification: |
Ce,RoHS |
| Brand: |
Novotech |
