| Prod Model: |
RVVP |
| Rated Voltage: |
450/750V |
| Type: |
Insulated |
| Conductor Type: |
Solid |
| Application: |
Underground |
| Conductor Material: |
Copper |
| Insulation Material: |
PVC |
| Certification: |
RoHS |
| Brand: |
Sansen |
Product Description

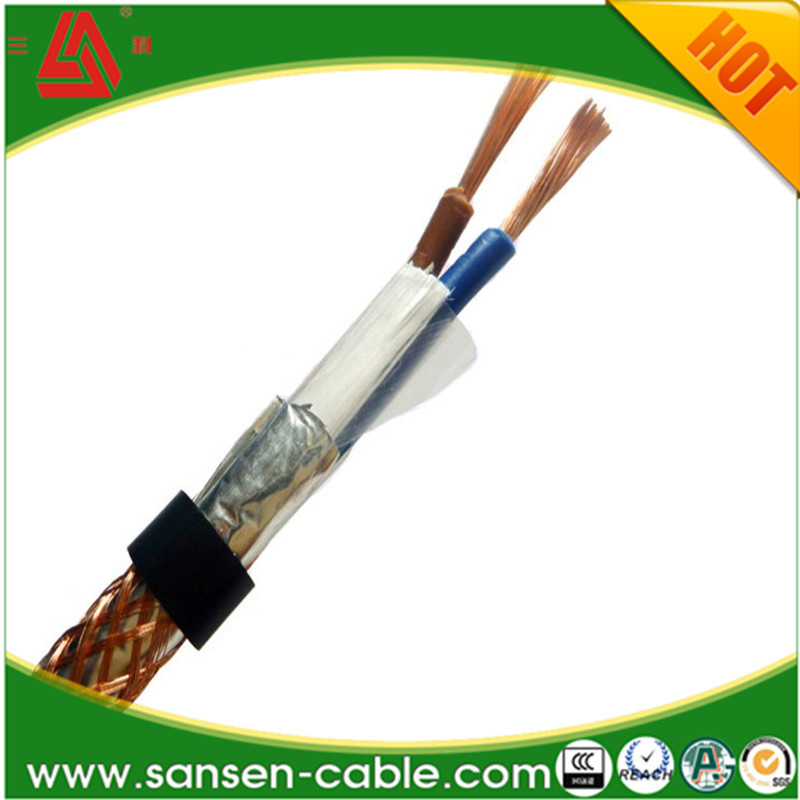

power cable with PVC Sheathed Screen Flexible Cable( Rvvp Cable)
Specification:
Conductor: stranded bare copper
Cores: 2cores, 3cores, 3+1 cores, 3+2 cores, 4 cores, 5 cores, 5+1 cores;
PVC insulated, PVC jacket.
Other details:
1.Standard: ISO9001,CE, ROHS,SGS,CCC;
2.Application: General purpose indoor and outdoor, electrical tools, washing machines and vaccum cleaners etc.;

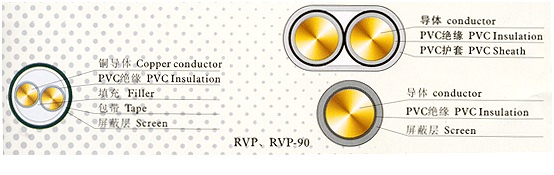

3.Construction: Flexible annealed copper conductor, PVC insulated and PVC sheathed;
4.Voltage: 300/500v;
5.Core color: Red, black, blue, white, green, yellow, brown;
6.Sheath color: Black, white, orange,grey .
Product show:
| Synthetic data of 300/300V RVVP model PVC insulated flexible cable with PVC sheath and copper core shielding |
| Core number*nominal cross section of conductor | Maximum diameter of conductor in a line | Rated value of insulator thickness | Shielded wire diameter | Rated value of sheath thickness | Upper Value of average overall diameter | Minimum insulation resistance |
| mm2 | mm | mm | mm | mm | mm | MΩ.km |
| 1×0.3 | 0.16 | 0.5 | 0.1 | 0.4 | 3.5 | 0.014 |
| 1×0.4 | 0.16 | 0.5 | 0.1 | 0.4 | 3.7 | 0.013 |
| 1×0.5 | 0.21 | 0.5 | 0.1 | 0.4 | 3.8 | 0.012 |
| 1×0.75 | 0.21 | 0.5 | 0.1 | 0.4 | 4.1 | 0.01 |
| 1×1.0 | 0.21 | 0.6 | 0.1 | 0.6 | 4.9 | 0.01 |
| 1×1.5 | 0.26 | 0.6 | 0.1 | 0.6 | 5.2 | 0.009 |
| 1×1.25 | 0.26 | 0.7 | 0.15 | 0.6 | 6 | 0.008 |
| *1×4 | 0.31 | 0.8 | 0.15 | 0.8 | 7.1 | - |
| *1×6 | 0.31 | 0.8 | 0.15 | 0.8 | 8.2 | - |
| 2×0.3 | 0.16 | 0.5 | 0.15 | 0.6 | 6.2 | 0.014 |
| 4.2×6.2 | - |
| 2×0.4 | 0.16 | 0.5 | 0.15 | 0.6 | 6.6 | 0.013 |
| 4.4×6.6 | - |
| 2×0.5 | 0.21 | 0.5 | 0.15 | 0.6 | 6.8 | 0.012 |
| 4.5×6.8 | - |
| 2×0.75 | 0.21 | 0.5 | 0.15 | 0.6 | 7.4 | 0.01 |
| 4.8×7.4 | - |
| 2×1.0 | 0.21 | 0.6 | 0.15 | 0.6 | 8.2 | 0.01 |
| 5.2×8.3 | - |
| 2×1.5 | 0.26 | 0.6 | 0.15 | 0.8 | 9.2 | 0.009 |
| 6.0×9.3 | - |
| *2×2.5 | 0.26 | 0.7 | 0.15 | 1 | 10.9 | 0.008 |
| 7.1×11.0 | - |
| *2×4 | 0.31 | 0.8 | 0.15 | 1 | 11.5 | - |
| 8.2×11.6 | - |
| 3×0.3 | 0.16 | 0.5 | 0.15 | 0.6 | 6.5 | 0.014 |
| 3×0.4 | 0.16 | 0.5 | 0.15 | 0.6 | 6.9 | 0.013 |
| 3×0.5 | 0.21 | 0.5 | 0.15 | 0.6 | 7.1 | 0.012 |
| 3×0.75 | 0.21 | 0.5 | 0.15 | 0.6 | 7.8 | 0.01 |
| 3×1.0 | 0.21 | 0.6 | 0.15 | 0.8 | 9.1 | 0.01 |
| 3×1.5 | 0.26 | 0.6 | 0.2 | 0.8 | 10 | 0.009 |
| *3×2.5 | 0.26 | 0.7 | 0.2 | 1 | 11.9 | 0.008 |
| 4×0.3 | 0.16 | 0.5 | 0.15 | 0.6 | 7 | 0.014 |
| 4×0.4 | 0.16 | 0.5 | 0.15 | 0.6 | 7.5 | 0.013 |
| *4×0.5 | 0.21 | 0.5 | 0.15 | 0.8 | 8.2 | 0.012 |
| *4×0.75 | 0.21 | 0.5 | 0.15 | 0.8 | 8.7 | 0.01 |
| *4×1 | 0.21 | 0.6 | 0.15 | 0.8 | 9.7 | 0.01 |
| *4×1.5 | 0.26 | 0.6 | 0.2 | 1 | 11.1 | 0.009 |
| *4×2.5 | 0.26 | 0.7 | 0.2 | 1 | 12.8 | 0.008 |
| 5×0.3 | 0.16 | 0.5 | 0.15 | 0.6 | 7.6 | 0.014 |
| 5×0.4 | 0.16 | 0.5 | 0.15 | 0.6 | 8.1 | 0.013 |
| *5×0.5 | 0.21 | 0.5 | 0.15 | 0.8 | 8.7 | 0.012 |
| *5×0.75 | 0.21 | 0.5 | 0.15 | 0.8 | 9.4 | 0.01 |
| *5×1 | 0.21 | 0.6 | 0.15 | 1 | 11.1 | 0.01 |
| *5×1.5 | 0.26 | 0.6 | 0.2 | 1 | 11.9 | 0.009 |
| *5×2.5 | 0.26 | 0.7 | 0.2 | 1 | 13.8 | 0.008 |
| 6×0.3 | 0.16 | 0.5 | 0.15 | 0.6 | 8.2 | 0.014 |
| 6×0.4 | 0.16 | 0.5 | 0.15 | 0.8 | 9.2 | 0.013 |
| *6×0.5 | 0.21 | 0.5 | 0.15 | 0.8 | 9.3 | 0.012 |
| *6×0.75 | 0.21 | 0.5 | 0.15 | 0.8 | 10 | 0.01 |
| *6×1 | 0.21 | 0.6 | 0.15 | 1 | 11.8 | 0.01 |
| *6×1.5 | 0.26 | 0.6 | 0.2 | 1 | 12.7 | 0.009 |
| *6×2.5 | 0.26 | 0.7 | 0.2 | 1 | 14.8 | 0.008 |
| 7×0.3 | 0.16 | 0.5 | 0.15 | 0.6 | 8.2 | 0.014 |
| 7×0.4 | 0.16 | 0.5 | 0.15 | 0.8 | 9.2 | 0.013 |
| *7×0.5 | 0.21 | 0.5 | 0.15 | 0.8 | 9.3 | 0.012 |
| *7×0.75 | 0.21 | 0.5 | 0.15 | 0.8 | 10 | 0.01 |
| *7×1 | 0.21 | 0.6 | 0.15 | 1 | 11.8 | 0.01 |
| *7×1.5 | 0.26 | 0.6 | 0.2 | 1 | 12.7 | 0.009 |
| *7×2.5 | 0.26 | 0.7 | 0.2 | 1 | 14.8 | 0.008 |
| 8×0.3 | 0.16 | 0.5 | 0.15 | 0.6 | 8.7 | 0.014 |
| 8×0.4 | 0.16 | 0.5 | 0.15 | 0.8 | 9.6 | 0.013 |
| *8×0.5 | 0.21 | 0.5 | 0.15 | 0.8 | 10.1 | 0.012 |
| *8×0.75 | 0.21 | 0.5 | 0.15 | 0.8 | 1.8 | 0.01 |
| *8×1 | 0.21 | 0.6 | 0.15 | 1.2 | 13.2 | 0.01 |
| *8×1.5 | 0.26 | 0.6 | 0.2 | 1.2 | 14.2 | 0.009 |
| *8×2.5 | 0.26 | 0.7 | 0.2 | 1.2 | 16.4 | 0.008 |
| 10×0.3 | 0.16 | 0.5 | 0.2 | 0.8 | 10.9 | 0.014 |
| 10×0.4 | 0.16 | 0.5 | 0.2 | 0.8 | 11.6 | 0.013 |
| *10×0.5 | 0.21 | 0.5 | 0.2 | 1 | 12.4 | 0.012 |
| *10×0.75 | 0.21 | 0.5 | 0.2 | 1 | 13.2 | 0.01 |
| *10×1 | 0.21 | 0.6 | 0.2 | 1.2 | 15.1 | 0.01 |
| 12×0.3 | 0.16 | 0.5 | 0.2 | 0.8 | 11.2 | 0.014 |
| 12×0.4 | 0.16 | 0.5 | 0.2 | 0.8 | 11.9 | 0.013 |
| *12×0.5 | 0.21 | 0.5 | 0.2 | 1 | 12.7 | 0.012 |
| *12×0.75 | 0.21 | 0.5 | 0.2 | 1 | 13.5 | 0.01 |
| *12×1 | 0.2 | 0.6 | 0.2 | 1.2 | 15.5 | 0.01 |
| 14×0.3 | 0.16 | 0.5 | 0.2 | 0.8 | 11.7 | 0.014 |
| 14×0.4 | 0.16 | 0.5 | 0.2 | 0.8 | 12.5 | 0.013 |
| *14×0.5 | 0.21 | 0.5 | 0.2 | 1 | 13.3 | 0.012 |
| *14×0.75 | 0.21 | 0.5 | 0.2 | 1 | 14.2 | 0.01 |
| *14×1 | 0.21 | 0.6 | 0.2 | 1.2 | 16.2 | 0.01 |
| 16×0.3 | 0.16 | 0.5 | 0.2 | 0.8 | 12.3 | 0.014 |
| 16×0.4 | 0.16 | 0.5 | 0.2 | 0.8 | 13.1 | 0.013 |
| *16×0.5 | 0.21 | 0.5 | 0.2 | 1 | 14 | 0.012 |
| *16×0.75 | 0.21 | 0.5 | 0.2 | 1 | 14.9 | 0.01 |
| *16×1 | 0.21 | 0.6 | 0.2 | 1.2 | 17.1 | 0.01 |
| 19×0.3 | 0.16 | 0.5 | 0.2 | 0.8 | 12.9 | 0.014 |
| 19×0.4 | 0.16 | 0.5 | 0.2 | 1 | 14.2 | 0.013 |
| *19×0.5 | 0.21 | 0.5 | 0.2 | 1.2 | 15.1 | 0.012 |
| *19×0.75 | 0.21 | 0.5 | 0.2 | 1.2 | 16.1 | 0.01 |
| *19×1 | 0.21 | 0.6 | 0.2 | 1.2 | 17.9 | 0.01 |
| 24×0.3 | 0.16 | 0.5 | 0.2 | 1 | 14.4 | 0.014 |
| 24×0.4 | 0.16 | 0.5 | 0.2 | 1 | 16.4 | 0.013 |
| *24×0.5 | 0.21 | 0.5 | 0.2 | 1.2 | 17.4 | 0.012 |
| *24×0.75 | 0.21 | 0.5 | 0.2 | 1.2 | 18.6 | 0.01 |
| *24×1 | 0.21 | 0.6 | 0.2 | 1.2 | 21 | 0.01 |
ADP main products:
lan cable, fiber optical, patch cord, telephone cable, alarm/security cable, electric cable...
Once we have your order, cost may be reduced while maintain the quality.
FAQ:Q1. What kind of products can your company supply? A: We specialize in supplying network cable, coaxial cable, power cable ,control cable , telephone cable, speaker cable and ect. Q2. What's your MOQ?A: The MOQ of long meter cable is 50 km, or we can negociate. Q3. What's your delivery time? A: Our delivery time is about 15-20 days after comfriming the deposite, it is based on the quantity of the order. Q4. What are your payment terms?A: Normally, we accept T/T in advance, as for other payment term, we can negociate with you. Q5. What's your trade term ? A: We can accept FOB, CIF, EXW term. Q6. What's your conventional packing ? A: 100m/plastic or wooden drum, 305m/wooden drum or color box. However, we can produce according your demand. Q7. Can your factory customize cables based on clients' samples or data sheet ? A: Yes, we can. Q8. Can you offer me a free sample?
A: Yes, we do, that is a start of business I think, and you will only pay the cost of delivery, which we will return it to you when you put the order.
We are specialized in manufacturing of cables for more than 20 years. Can product Building cable, Electrical equipment cable, Automobile cable, Control cable, Coaxial cable, Network communication cable, Audio cable, Monitor cable and the like. We also offer OEM and ODM services.
Located in Huzhou, Zhejiang Province, where is between Shanghai and Hangzhou, we enjoy convenient transportation, thus we can ship goods in Shanghai Port as well as Ningbo Port. Our factory totally covers an area of 3, 000 square meters. High skilled staffs and technical engineers have been dedicated to cable techniques since our company was founded.
At the present, most of our customers are domestic trading companies, and 90% products are exported to all over the word via them; Meanwhile we are developing oversea market by ourselves.
We are keen on building long-term solid relationship with all serious buyers, with sincerity, we welcome you to China to visit our factory and office.
