45mm 24V 30W 6500rpm DC Brushless External Rotor Motor
| Price: |
US $ 39/Piece |
| Min Order: |
100/Piece |
| Pay Type: |
L/C,T/T,D/P,Paypal |
| Prod Model: |
EF045AS200 |
| Application: |
Power Tools |
| Operating Speed: |
Adjust Speed |
| Excitation Mode: |
Excited |
| Structure And Working Principle: |
Brushless |
| Number Of Poles: |
16 |
| Certification: |
UL/Ce |
| Brand: |
Exmek |
Product Description
General information- 16 poles with three phases external rotor
- Low torque ripple
- High inertia torque
- Compact design
- Insulation class B
- Application: Medical, Automation
Specifications| Specification | EF045AS200 |
| Nominal Voltage | 24 V |
| No Load Speed | 6500 rpm |
| No Load Current (max.) | 300 mA |
| Nominal Speed | 5000 rpm |
| Nominal torque (max. continuous torque) | 50 mNm |
| Nominal current (max. continuous current) | 1.58 A |
| Nominal Power | 30 W |
| Stall Torque | 440 mNm |
| Stall Current | 4.8 A |
| Max. Efficiency | 72 % |
| Terminal Resistance Phase to Phase | 1.47 Ω |
| Terminal Inductance Phase to Phase | 0.61 mH |
| Torque Constant | 35.5 mNm/A |
| Rotor Inertia | 99 gcm² |
| Insulation Class | B |
| Weight of Motor | 80 g |
Mechanical

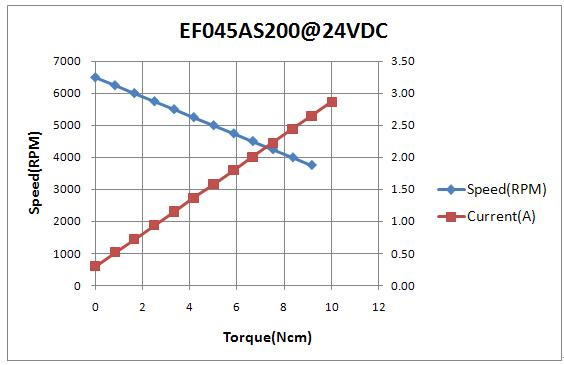

Characteristic diagram
Packaging & Shipping
1, Waterproof plastic bag packed in foam box and carton as outer packing.
2, Export wooden box packaging for products.
Company Profile- Originally motor division of CMEC WUXI- China National Machinery & Equipment Imp & Exp Wuxi Co.,Ltd., one of TOP 20 stated owned Machinery Group
- Privately owned Ltd company since 2000: Wuxi Junhong Automation Technology Co. Ltd.
- Exmek Electric ---Registered Brand Name
- Business: Design and manufacture of motion control products and components
- Highly qualified personnel
- UL, CE, RoHS certification
- ISO 9001, ISO 14000
Company Capabilities- Modern Motor Design and Manufacture
- Part Set Design and Manufacture
- Magnetic Design Software-Motorsolver
- Molding
- Shipping world wide
Why Exmek Electric- Open for general discussion and questions
- Time to market or theatre of operations can be substantially reduced
- Talented team of engineers providing innovative technical solutions
- One stop "supplier" and complete sub-system
- Quality products provided at competitive low cost
- Ability to ship world wide
- On time delivery
- Training at Customer locations
- Fast service on return and repair results
- Many repeated customers
Applications:Use for swimming pool, automotive, semiconductor, chemical & medical, industrial automation, power tool, instrument, measuring equipment, office automation, various OEM application.We are open for general discussion and questions. Contact us now!
