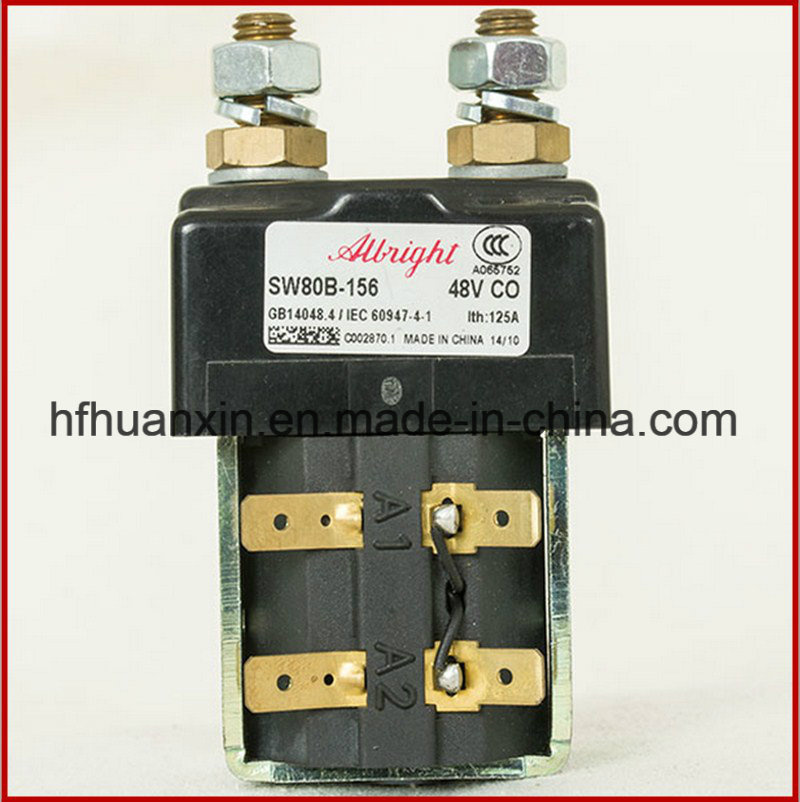

48V-125A Equivalent Reversing Single Pole Albright Contactor DC SW80B-156 For Electric VehiclesProduct DescriptionSpecifications:
- Model: SW80B-156 (ZAPI B4SW11 / B4SW12)
- Working voltage: 48V (other voltage options 12V, 24V, 36V, 60V or 72V are available for SW80 & SW80B series DC contactors, for more details, please contact us )
- Ambient temperature: -40˚C to +60˚C
- Net weight: 0.35 kg
Notice: SW80B-156 is a Single Pole Single Throw contactor.
Click to download the Albright DC Contactor Model List (PDF format).
Overview
The SW80 has been designed for direct current loads, including motors as used on electric vehicles such as industrial trucks, and telecom and power distribution applications. Developed for both interrupted and uninterrupted loads, the SW80 is suitable for switching Resistive, Capacitive and Inductive loads.
- Interrupted current: opening and closing on load with frequent switching (results in increased contact resistance)
- Uninterrupted current: no or infrequent load switching requirements (maintains a lower contact resistance)

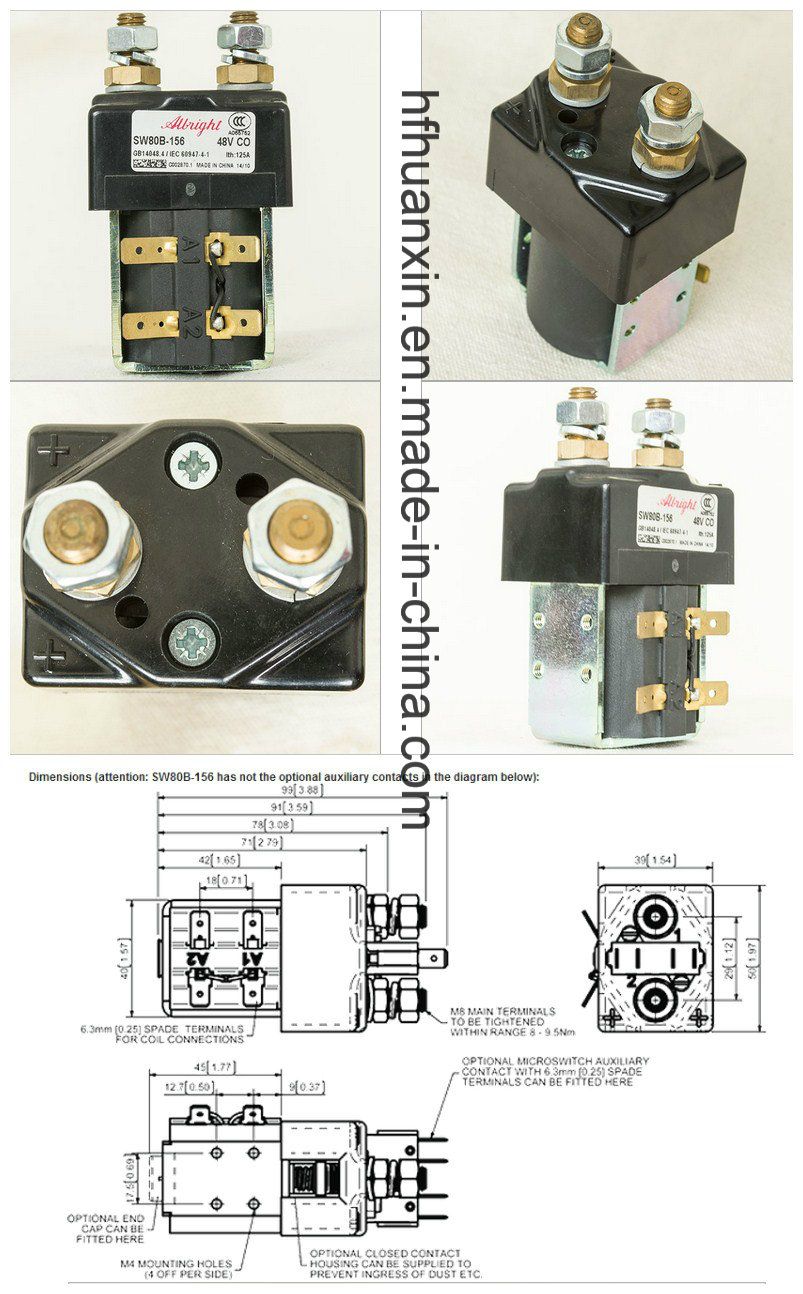

The SW80 features single pole double breaking main contacts with silver alloy tips, which are weld resistant, hard wearing and have excellent conductivity. The SW80 has M8 stud main terminals and 6.3mm spade coil connections. Mounting is via M4 tapped holes or mounting brackets, either supplied fitted, or as separate items. Mounting can be horizontal or vertical, when vertical the M8 contact studs should point upwards. If the requirement is for downwards orientation we can adjust the contactor to compensate for this.

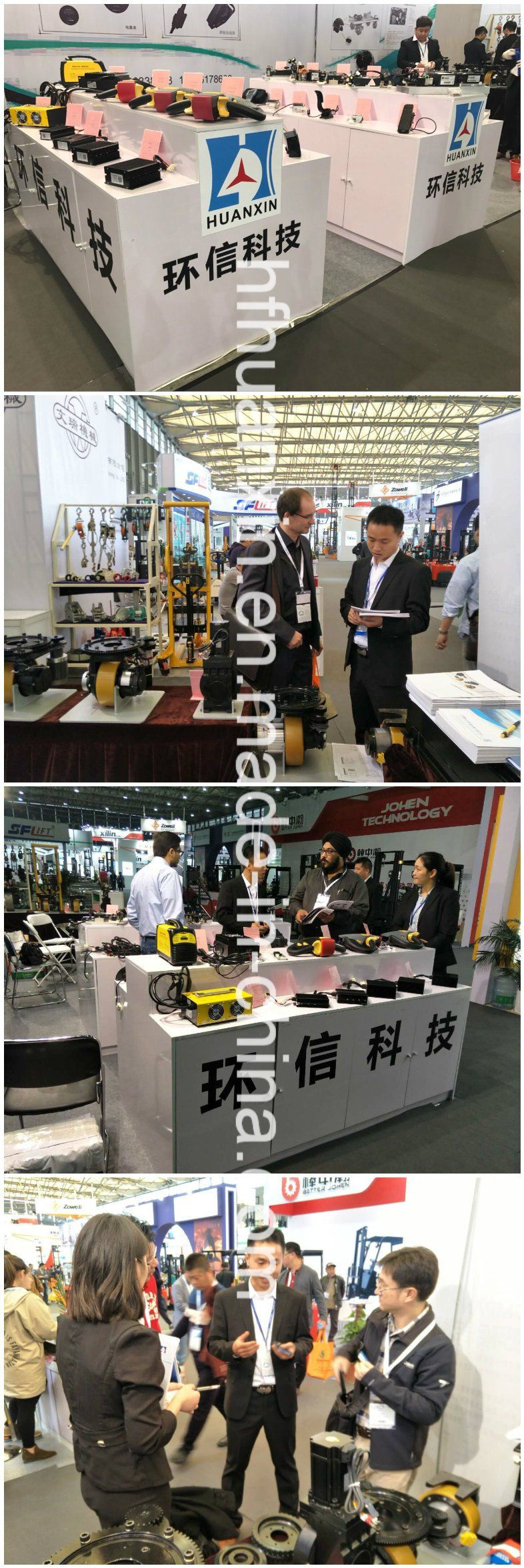

On Exhibition

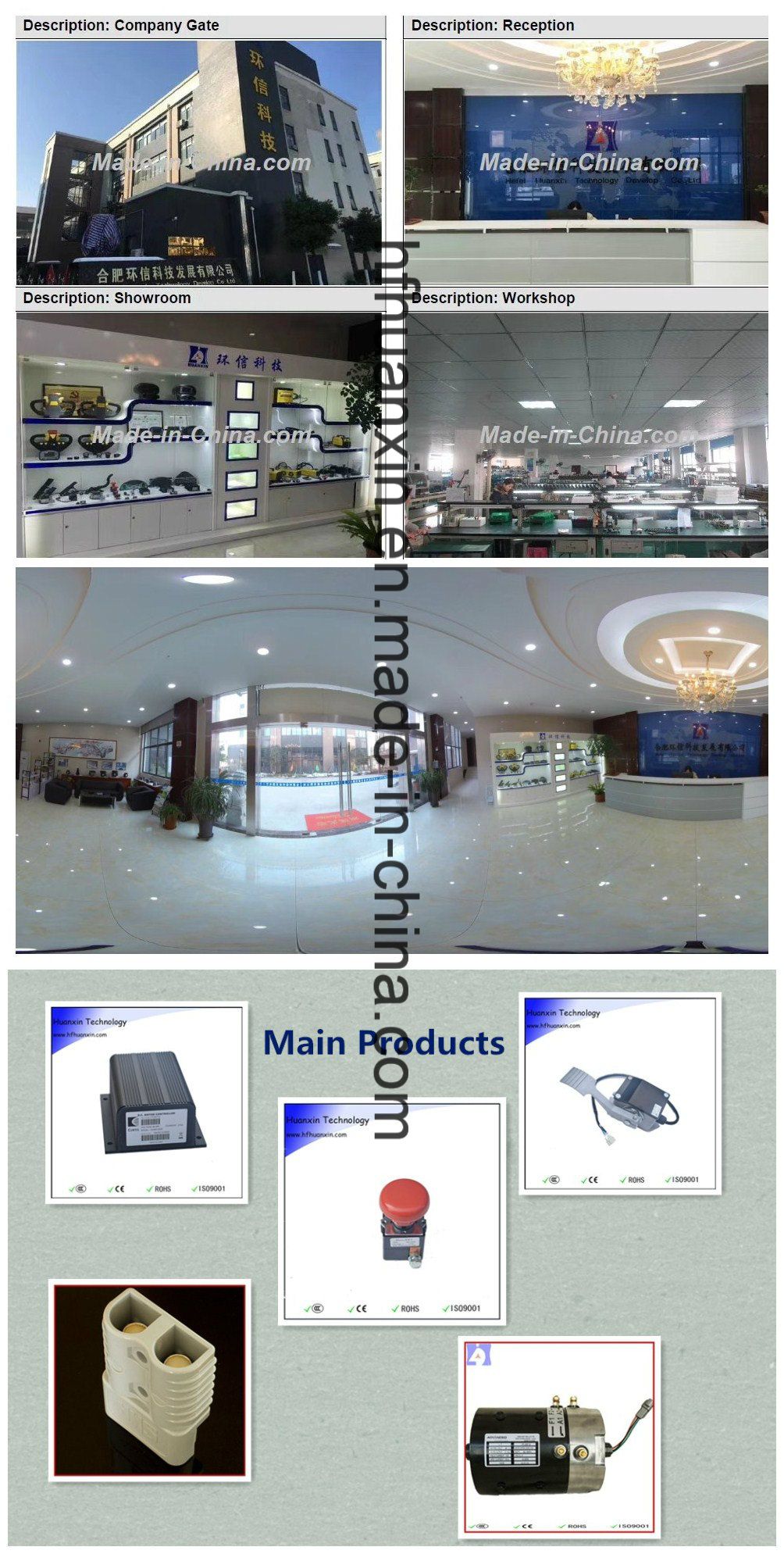

Our Company
Hefei Huanxin Technology Development Co., Ltd. has been devoting ourselves to developing and manufacturing and other since 2004. We are located in Hefei, Anhui Province, with convenient transportation access. We employ over 101 - 200 People staff members. We have achieved great improvement since our company was founded in 2004. We abide by the motto of Firstclass quality, Reasonable price, Best service and Professional product support.
Certifications
Package:Normally we use the standard exporting parcel. We also can package the item according to clients' request .
Shipping :
1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperating
2. By Air: Delivery from the Shanghai airport to customer's destination city air port.
3. By Sea: Delivery from the Shanghai/Guangzhou/Ningbo sea port .
FAQQ1. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality.
Q2. What about the lead time?
A: Sample needs 3-5 days.
Q3. Do you have any MOQ limit?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on the product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 1 year warranty to our products.
Q8: How to deal with the faulty?
A: Our products are produced in strict quality control system and the defective rate will be less than 0.2%.Contact Us
Hefei Huanxin Technology Development Co., Ltd, established in 2004, is a professional manufacturer engaged in the research, development, production, sales and service of electric vehicle controller, handle, meter, electronic accelerator and so on. Our company specialized in various kind of pallet trucks parts and forklift parts for both domestic and international markets.
Also our company is the first-level agent of CURTIS BRAND and appointed of Britain Albright Contactor. In addition we have obtained ISO9001 and CE Certificates.
Whether selecting a current product from our catalog or seeking engineering assistance for your application, you can talk to our customer service center about your souring requirement.
We welcome new and old customers from all walks of life to contact us for future business relationships and mutual success.
