48V High-Power Passive Poe Injector-48V1.25A Poe Adapter

Name: 48V High-Power Passive Poe Injector-48V1.25A Poe Adapter
Brand: all-electronics-online.com
SKU: 836243115
Availability: InStock
Rating: 5 (93 reviews)

Price:	US $ 6.5-8.5/Piece
Min Order:	100/Piece
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

48V1.25A 10M/100Mbps passive PoE injector

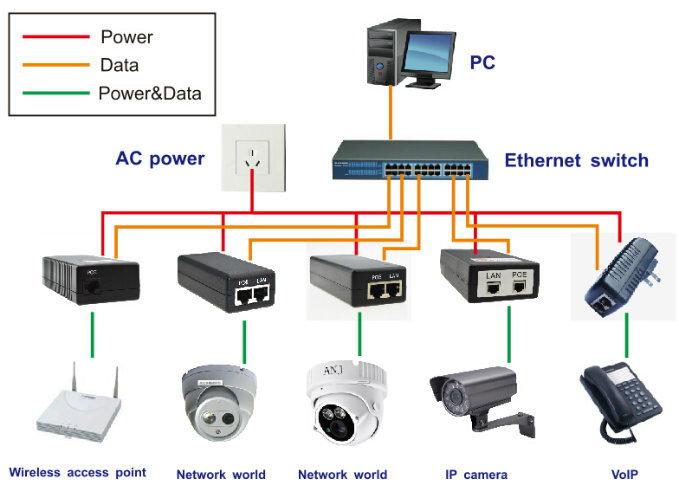

The PoE injector can realize simultaneous delivery of device network data and power via one Ethernet cable (Cat.5 or better). The output power of the PoE port is up to 60W, which is a single port Midspan (PoE injector) offers a cost effective, compliant solution for IP phones, WLAN access points, network cameras and other IP terminal installations.So, it is a perfect choice for you to reduce the installation cost and improve the network performance.

Product Features:

Delivers power and data through one Ethernet cable for easy network extension

Plug and Play, no configuration required

CE/FCC and RoHS Certified

Power Over Ethernet

One PoE port to power connected devices for flexible network deployment

Plug and Play

Plastic case & power plug integrated design

Easy setup, no configuration required

60W power output

Product Specifications:

Data Rate:	10/100Mbps
DC Output Voltage:	48VDC
DC Output Current:	1250mA
Interface:	2 X RJ-45 (Data-In LAN+PoE Out)
Power Out Pins:	Midspan 4, 5(+); 7, 8(-)
Operating Temp:	0 to 40°C
Power Input:	100/240VAC
Output voltage regulation precision:	48VDC±5%
Loading regulation:	48VDC±1%
AC Input Current:	1.5A Max
Standard:	IEEE802.3af/at non-compatible
UL and CE/FCC Certified

Product Applications:

IP Surveillance Industy:IP Network Camera
IP Phone:Desktop IP Phone &Wireless IP Phone
WLAN Devices: Wireless APS
Other Ethernet Devices

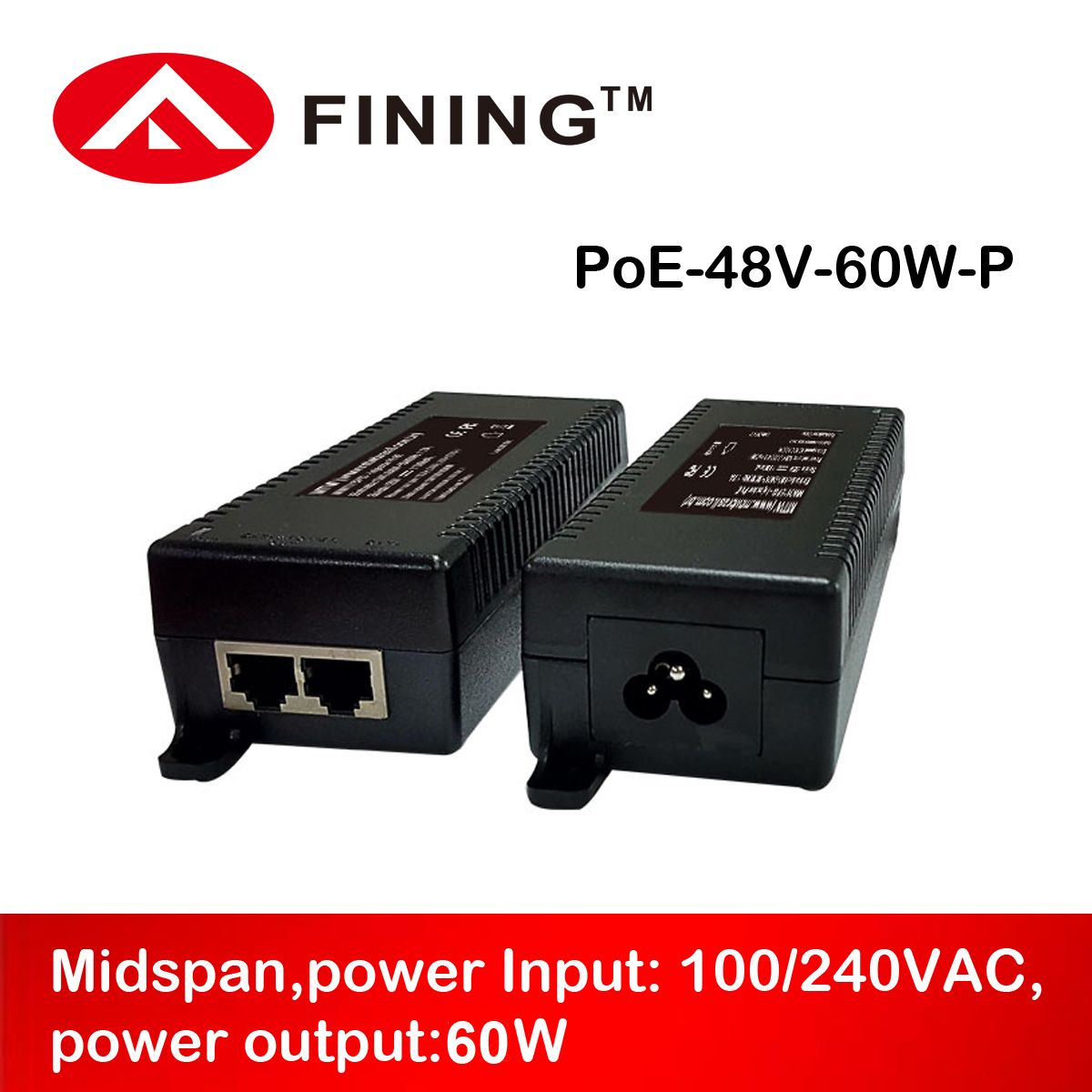

Prod Model:	PoE-48V-60W-P
DC Output Voltage:	48V
DC Output Current:	1250mA
Data Rate:	10/100Mbps
Interface:	2 X Rj-45 (Data-in LAN+Poe out)
Power Out Pins:	Midspan 4, 5(+);7, 8(-)
Operating Temp:	0 to 40°c
Power Input:	100/240VAC
AC Input Current:	1.5A Max
Standard:	IEEE802.3af Non-Compatible
Output Type:	DC
Connection:	Desktop
Usage:	IP Camera, Wireless Ap, IP Phone
Bluetooth Standard:	N/a
Brand:	Fining

Our company supplies different kinds of power adapter products to global market with good quality and reasonable price, and very familiar with CE, FCC, UL, ETL standrads.

We have the following advantages:

1. Have cooperated with a lot of importers for more than 6 years.

2. Experenced in handling OEM orders.

3. Qiuck delivery time for decent orders.

4. Own designing team for new products development.

5. Factory audited by SGS, INTERTEK&WEINSPCTION.

6. Free samples could be provided.

We are power adapter manufacture and focusing on providing high efficiency and reliability power supplies. Our main products include PoE(Power over ehternet)products, custom AC/DC power adapters and LED Driver power supply. We can afford custom service according to your requirements.
