4k 4X1 HDMI Switcher with Remote Control

4k 4X1 HDMI Switcher with Remote Control
Price: Negotiable/Piece
Min Order: 10/Piece
Pay Type: T/T,Western Union,Paypal
Prod Model: YL0104H
OEM: Avaliable

Product Description

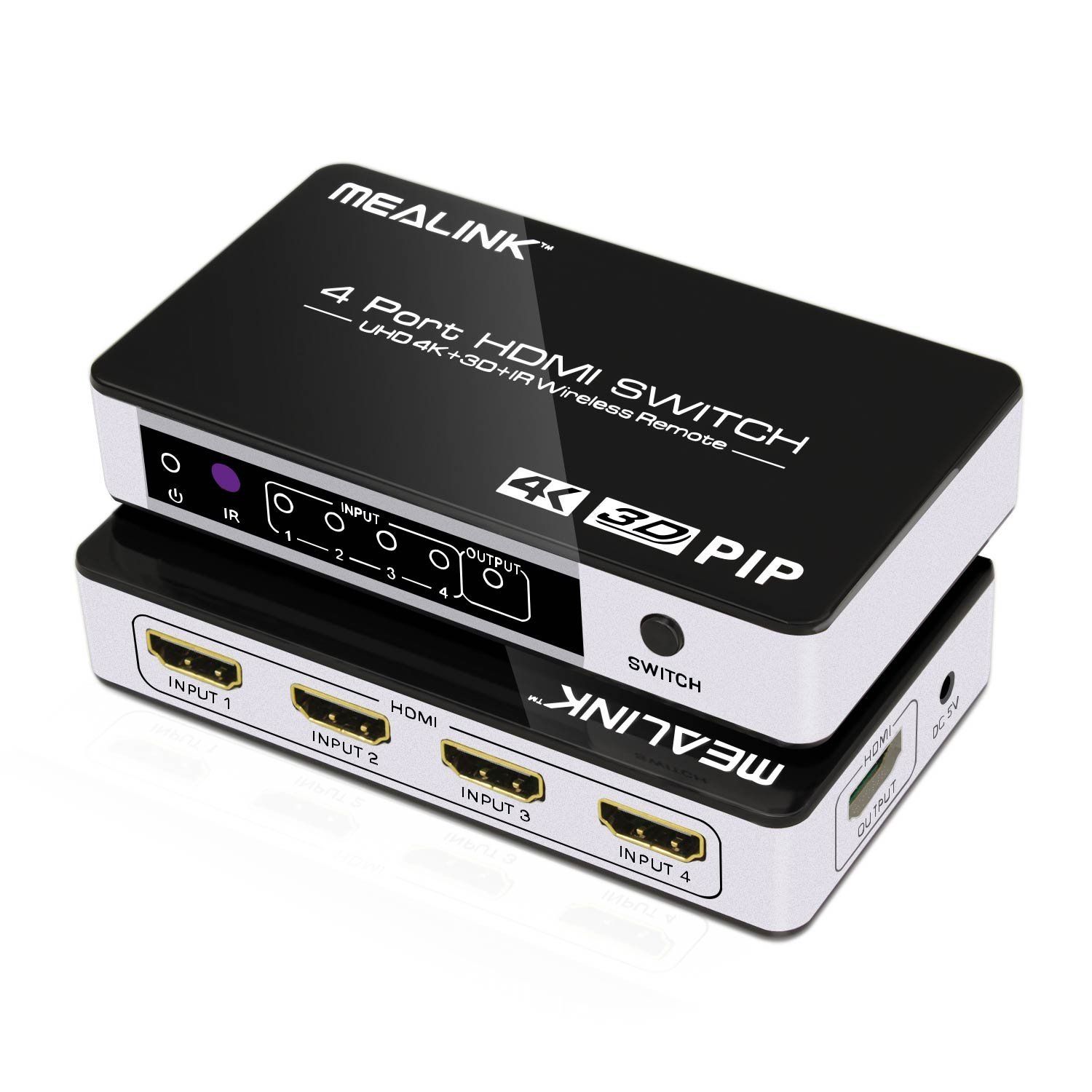

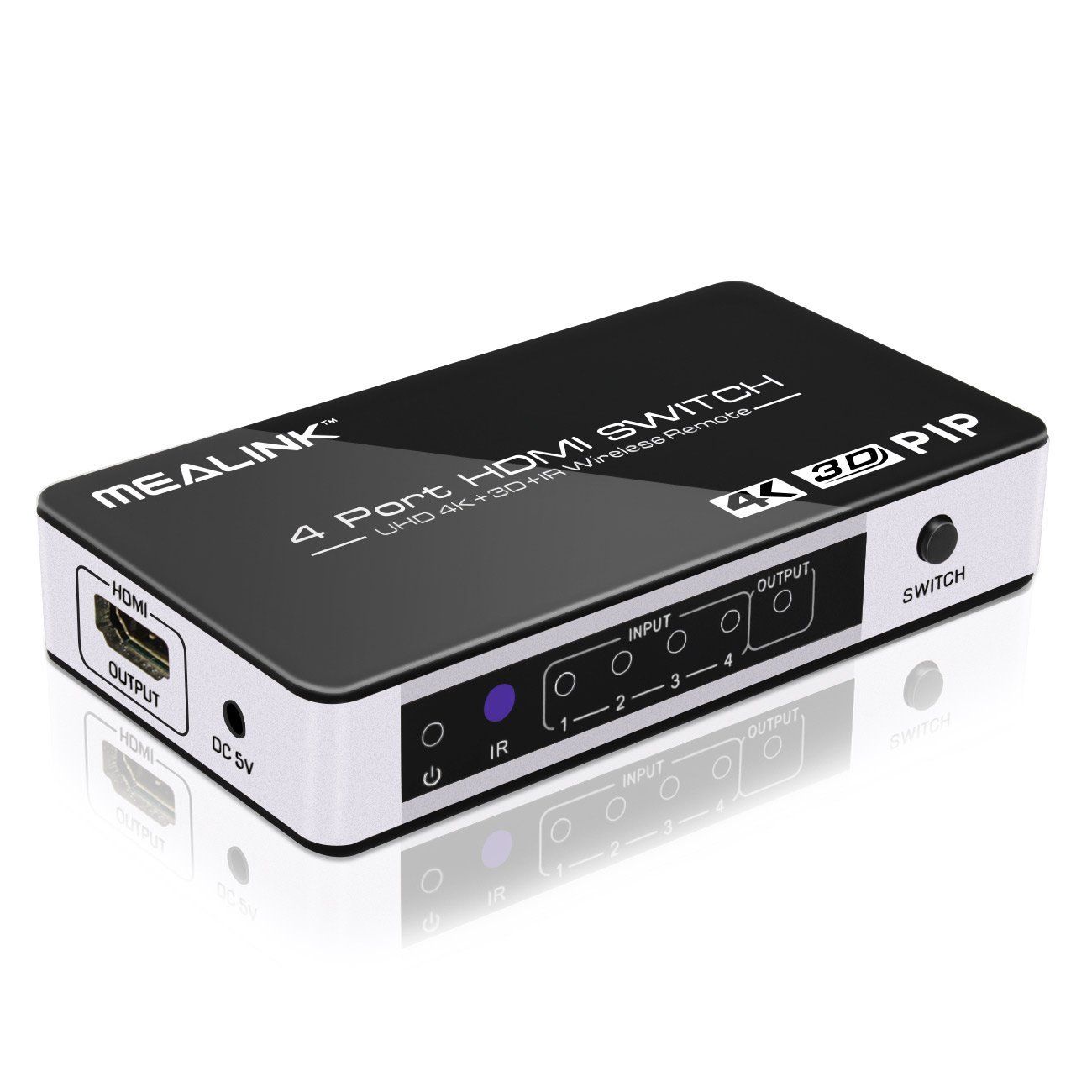

4K 4x1 HDMI Switcher with Remote Control

Features:

1.Input: 4 x HDMI input port
2.Output: 1 x HDMI output port
3.Support HDMI 1.4b(3840x2160@30HZ)
4.Support deep color 30bit, 36bit
5.Support Blue-Ray 24/50/60fps/HD-DVD/xvYCC.
6.Digital audio format,as DTS-HD/Dolby-true HD/LPCM7. 1/DTS/Dolby-AC3/DSD.
7.Supports signal retiming.
8.Supports Equalizer TMDS Output:25MHz-297MHz TMDS clock.
9.Supports up to 297MHz TMDS clock rate(4k x 2k) for HDMI input.
10.Supports CEC and EDID RAM.
11.Supports 1080P input up to 15meteres AWG26 HDMI standard cable length,output up to 20 meters AWG26 cable length
12.Inputs can be switched with the IR remote control,also can be controlled by button


Specifications:
Maximum Single Link Range: 24/25/30fps/4K x 2K
HDMI resolution:24/50/60fps/480i/480p/576p/720p/1080i/1080p/2160P
Support video color format:24bit/deep color 30bit,36bit
Vertical Frequency Range:1080P@60HZ,4Kx2K@30Hz
Support audio format:DTS-HD/Dolby-AC3/DSD
Max bandwidth:297MHz
Max band rate:8.91Gbps
Input:Output TMDS signal:0.5-1.5Volts
1080P input cable distance: 15m AWG26 HDMI standard cable
1080P Output cable distance: 20m AWG26 HDMI standard cable
4K x 2K Input cable distance: 5m AWG26/AWG28 HDMI standard cable

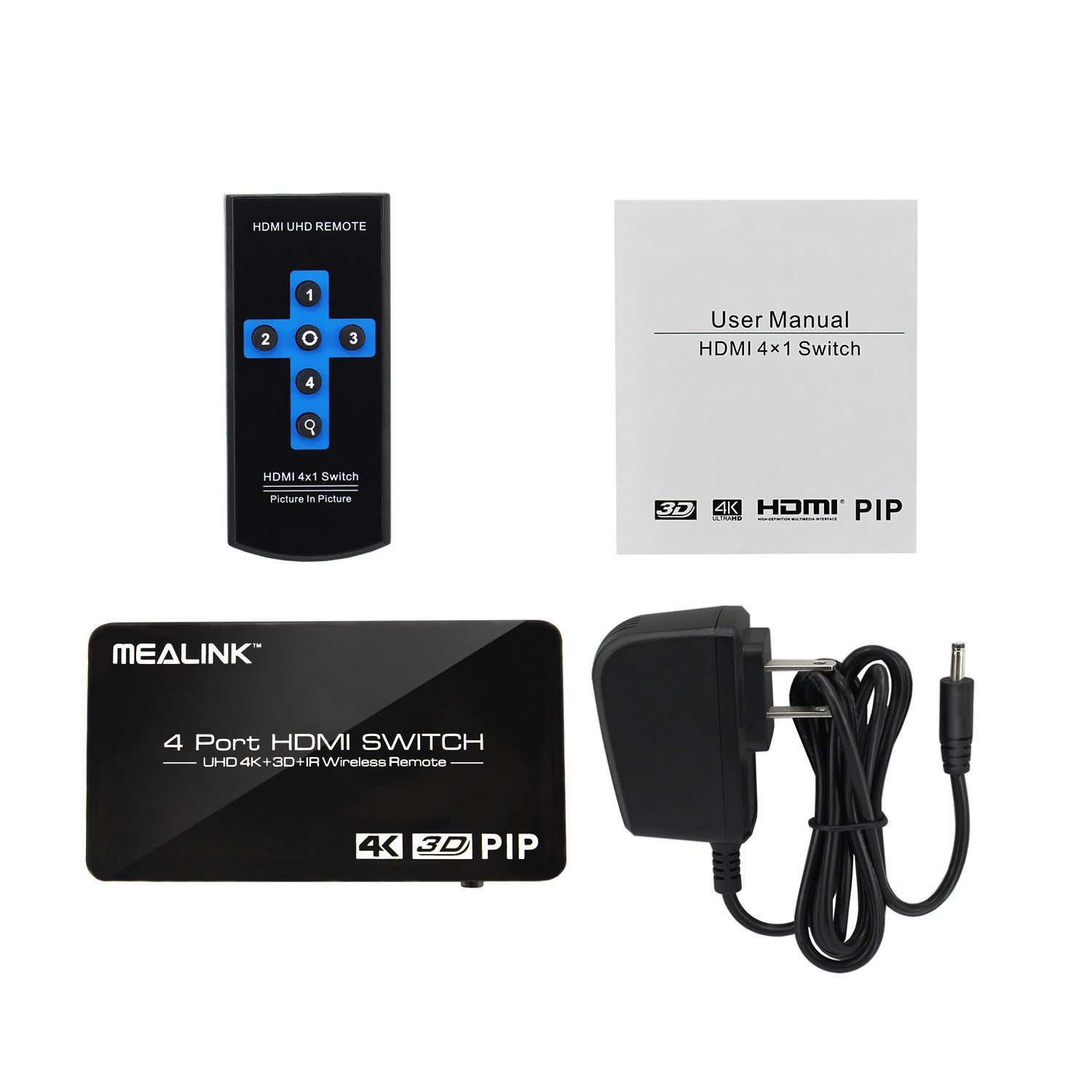

Packaging content:
1.HDMI Switch x 1
2.DC 5V Power Adapter x 1
3.Remote controller x 1
4.Button Battery x 1
5.User Manual x 1
