| Prod Model: |
QW-4KVA4850 |
| Rated Power: |
4000va/3200W |
| Waveform: |
Pure Sine Wave |
| Solar Controller: |
50A PWM |
| Input: |
230VAC |
| Selectable Voltage Range: |
170-280 VAC (for Computers) 90-280 VAC |
| Transfer Time: |
10 Ms / 20 Ms |
| Maximum PV Array Open Circuit Voltage: |
60 VDC |
| Keyword: |
Solar Inverter |
| Maximum Solar Charge Current: |
50A |
| Maximum AC Charge Current: |
60A |
Product Description

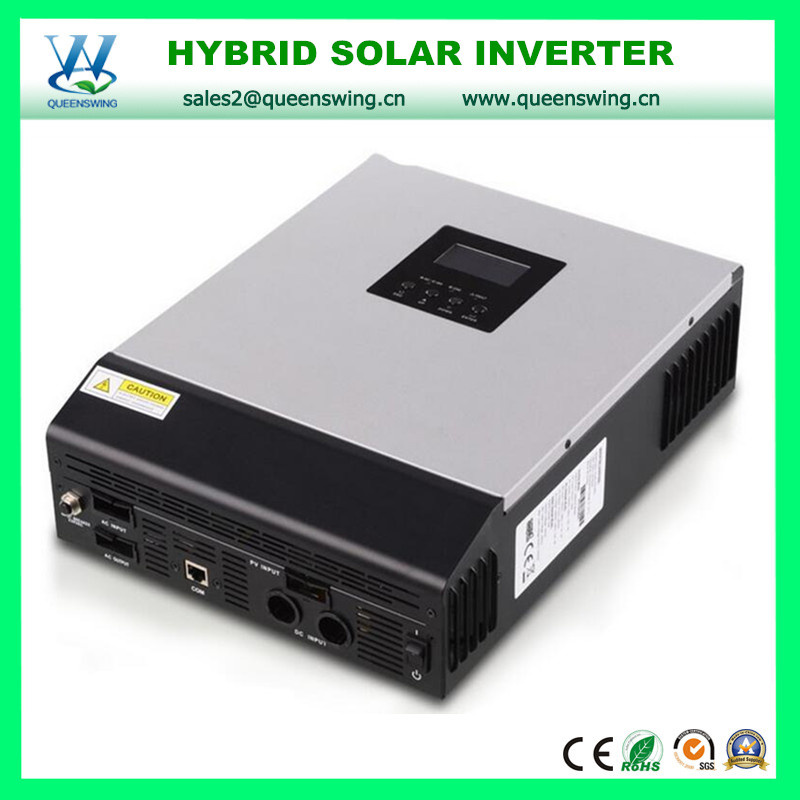

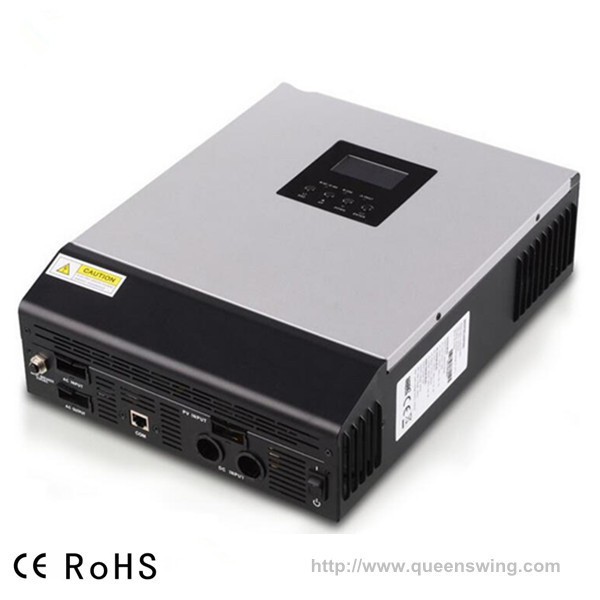

4KVA Pure Sine Wave Hybrid Solar Power Inverter with 50A PWM Solar Charger Controller(QW-4KVA4850)
Product snapshot:Model : 1-5KVA
Nominal Voltage : 220/230VAC
Nominal Frequency : 50/60HZ
Output Power Factor: 0.8
Fulll Protection:Protection for low battery voltage,over load,output short circuit and over- temperature Restrain surge interference,eliminate noise,protection for thunder striking,provide the reliable power to the home appliances.Key Features:Pure sine wave inverter
Cold start function
Auto restart while AC is recovering
Overload and short circuit protection
Optional remote panel available
Selectable charging current based on applications
Configurable AC/Solar input priority via LCD setting
Compatible to mains voltage or generator power
Smart battery charger design for optimized battery performance

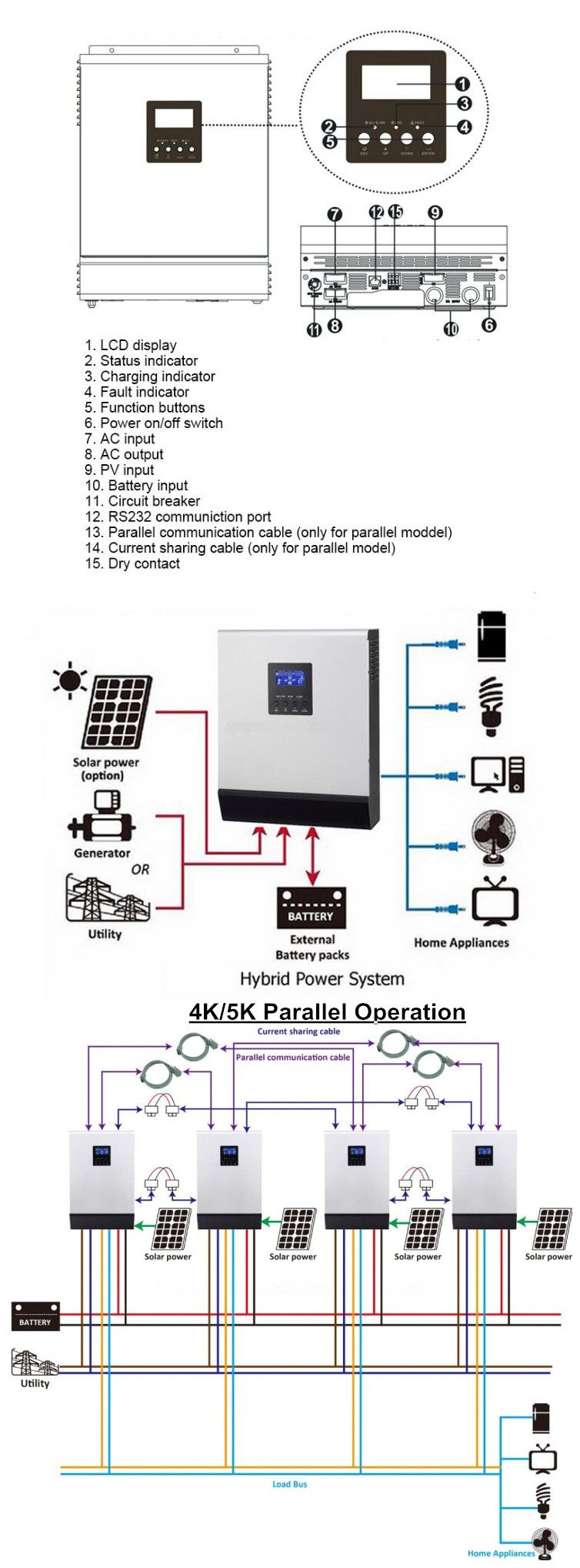

Parallel operation with up to 6 units only available for 4KVA/5KVA
Selectable input voltage range for home appliances and personal computers
4KVA 5KVA Single phase output up to 24kw using 6 units
Technical Data| 1-5KVA HYBRID SOLAR INVERTER BUILT IN PWM SOLAR CHARGE CONTROLLER |
| Model | 1K-12V | 2K-24V | 3K-24V | 4K-48V | 5K-48V |
| Rated Power | 1000VA/800W | 2000VA/1600W | 3000VA/2400W | 4000VA/3200W | 5000VA/4000W |
| INPUT |
| Voltage | 230VAC |
| Selectable Voltage Range | 170-280 VAC(For Personal Computers)
90-280 VAC(For Home Appliances) |
| Frequency Range | 50 / 60Hz (optional) |
| OUTPUT |
| AC Voltage Regulation(Batt. Mode) | 230 VAC ± 5% |
| Surge Power | 2000VA | 4000VA | 6000VA | 8000VA | 10000VA |
| Efficiency(Peak) | 93% |
| Transfer Time | 10 ms (For Personal Computer)
20 ms (For Home Appliances) |
| Waveform | Pure Sine Wave |
| BATTERY & AC CHARGER |
| Battery Voltage | 12 VDC | 24 VDC | 24 VDC | 48 VDC | 48 VDC |
| Floating Charge Voltage | 13.5 VDC | 27 VDC | 27 VDC | 54 VDC | 54 VDC |
| Overcharge Protection | 15 VDC | 30 VDC | 30 VDC | 60 VDC | 60 VDC |
| Maximum Charge Current | 10A/20A | 20A or 30A | 20A or 30A | 60A | 60A |
| SOLAR CHARGER(OPTION) |
| Charging Current | 50A |
| Maximum PV Array Open Circuit Voltage | 40 VDC | 60 VDC | 60 VDC | 105 VDC | 105 VDC |
| Standby Power Consumption | 1W | 2W | 2W | 2W | 2W |
| PHYSICAL |
| Dimension, D x W x H(mm) | 420x350x180 | 420x350x180 | 420x350x180 | 540x400x210 | 540x400x210 |
| Gross Weight(kg) | 6.5 | 8.35 | 8.85 | 11.0 | 12.0 |
| OPERATING ENVIRONMENT | |
| Humidity | 5% to 95% Relative Humidity(Non-condensing) |
| Operating Temperature | 0ºC - 55°C |
| Storage Temperature | -15ºC - 60°C |
| Product specifications are subject to change without further notice |

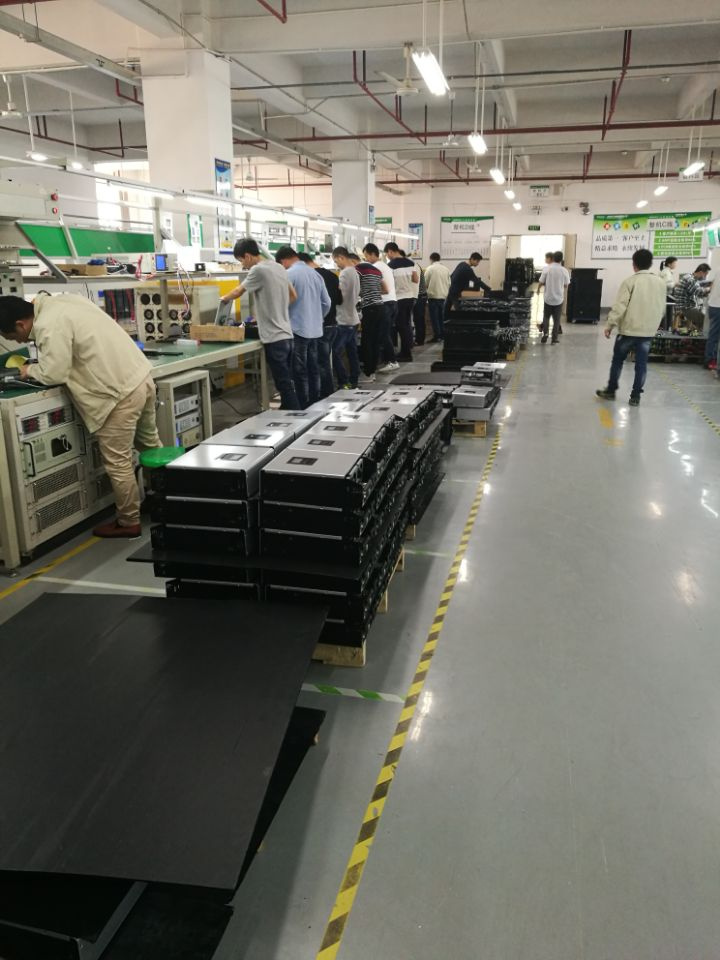

About us:Guangzhou Queenswing Solar Energy Co. Ltd. Is a professional manufacturer and exporter of solar products including power inverter, solar charge controller, solar panel and solar battery in China. To provide high-quality product and considerate service is always our basic policy. We believe high quality creates business and progress is from improvement.Main products:Pure sine wave power inverterModified sine wave power inverterUPS power inverter with chargerCar power inverterSolar charge controllerBattery ChargerSolar batteryOur power inverter and solar products are exported to most global coutries and get good reputation because of our favorable quality and stable performance.Payment Terms:T/T, Western Union, Money GramProduction arranged after receipt of payment.Lead Time:Sample order will be delivered within 7 working days.Order quantity below 100PCS, delivery time is 7-15 working days.Container order will be delivered within 15-30 working days.Shipment:Courier: FedEx, DHL, TNT, UPS, Aramex, EMS ect.Forwarder: By sea / air or Customer designatedContact us:86-13433933395
