4s 20A BMS/PCM for 2-4s Battery Pack with Smbus Bq2060

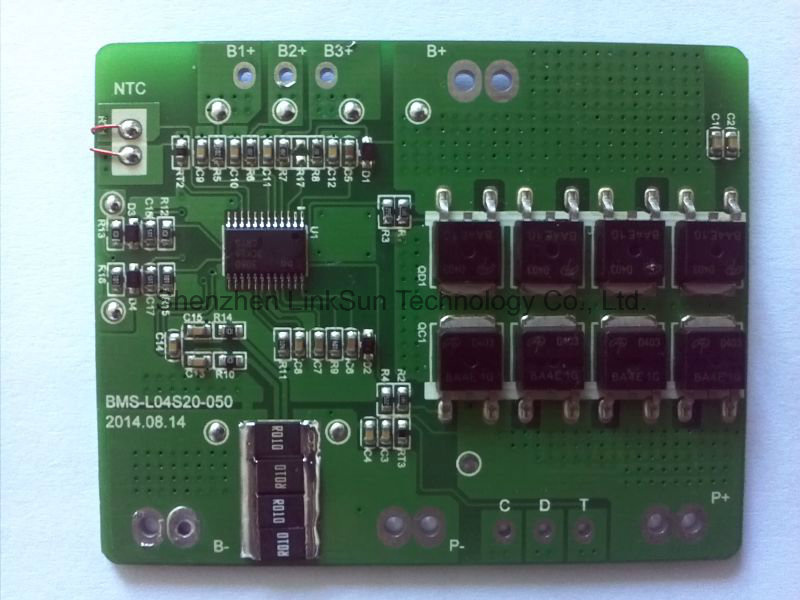

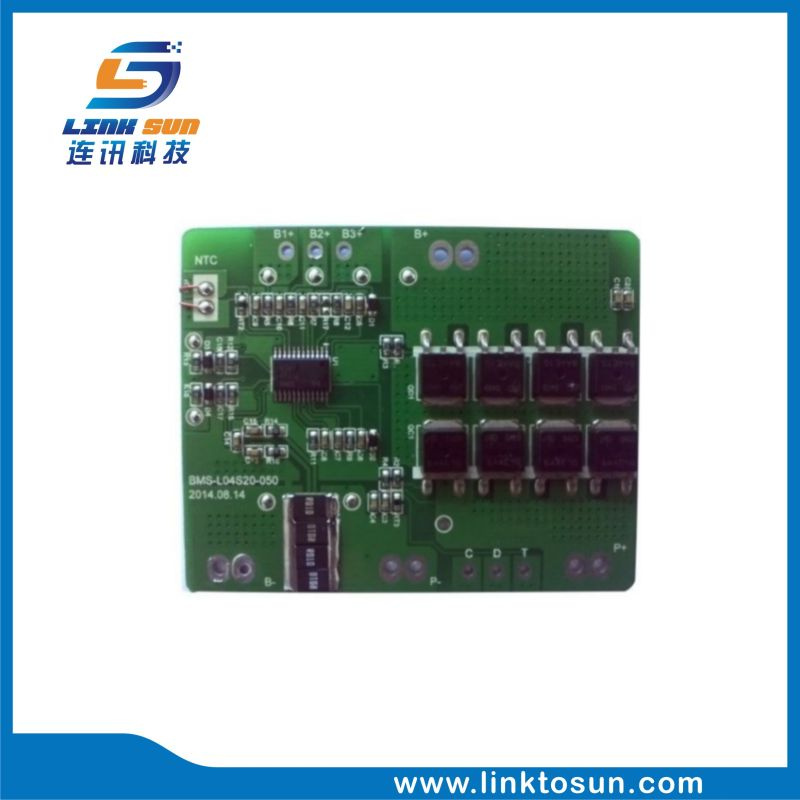

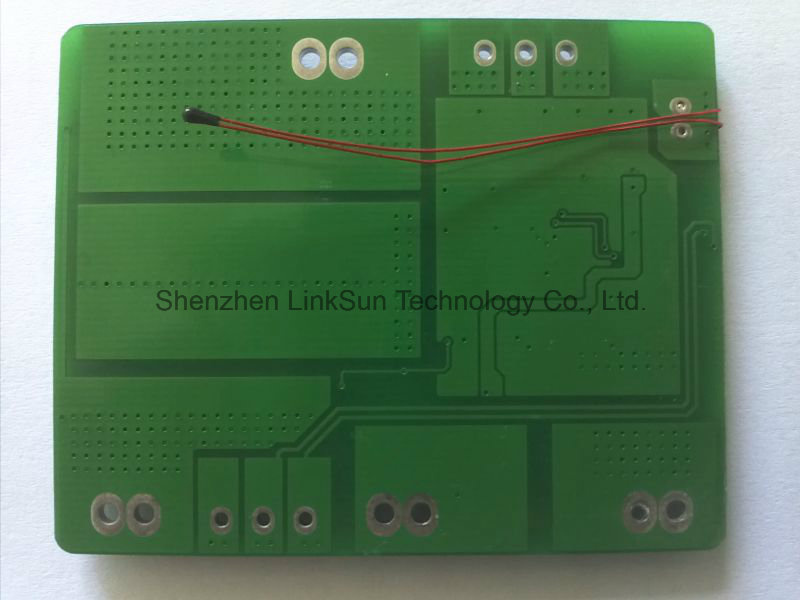

Name: 4s 20A BMS/PCM for 2-4s Battery Pack with Smbus Bq2060
Brand: all-electronics-online.com
SKU: 811178285
Availability: InStock
Rating: 4.8 (124 reviews)

Price:	Negotiable/Piece
Min Order:	5/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	BMS-L04S20-050
Metal Coating:	Copper
Mode Of Production:	SMT
Layers:	Single-Layer
Base Material:	FR-4

Product Description

We have over six hundreds of PCM/BMS series products for your choice, most of them widely used for Li-ion battery pack, Li-Polymer battery pack, LiFePO4 battery pack and so on.

Our main PCB/BMS normally adopt imported raw material for reliable quality, IC from Japan, MOS from USA, Components from Sumsang, Almost Zero RMA.we can customize the BMS for you as per your requirements.

The BMS was designed for 2-4S battery pack,use TI BQ2060, suitable for different chemical properties battery, such as Li-ion, Li-Po and Lifepo4, it reserves the standard SMBUS port, support smart battery data transfer protocol SBS V1.1.

BMS-L04S20-050 Features

-2-4S battery charge and discharge protection function
-Max continous discharge current 20A
-Over current,short circuit protection function
-Standard SMBUS port
-Reserve external LED connection feature
-Wide working temperature
-Lower consumption
-Size:65*52mm

Lianxun is a subsidiary of Link-Sun International (Hong Kong)Limited. Founded in 2006, is a high-tech enterprise which devotes to develop, design and produce general specifications power supply, such as battery pack, battery chargers, battery boards, LED strip light driver and so on.

We have successfully designed and produced more than 200types of professional PCM/BMS to battery pack, more than 10 models of themwith SMBUS, CANBUS. Thse high quality PCM matched with the high power battery pack were widely used in many digital products. Such as E-Bike, LEV, E-car, E-tooling, LED strips etc.

We have establised good relationship with advanced power chip developing companies, customers all over the world. We also offer specialized design and solution to you to shorten your design construction. To ensure best quality, we are not only equipped with advanced manufacturing facilities, but also with in house strict QC management system, employed well experienced engineering team and skillful workers, so Link Sun can guarantee all the safety of all the products.
