5.0mm 5.08mm Pitch Green Black Screw Terminal Block Wire Connector

5.0mm 5.08mm Pitch Green Black Screw Terminal Block Wire Connector
Price: US $ 0.03-1/Piece
Min Order: 100/Piece
Pay Type: L/C,T/T,Western Union,Paypal

Description

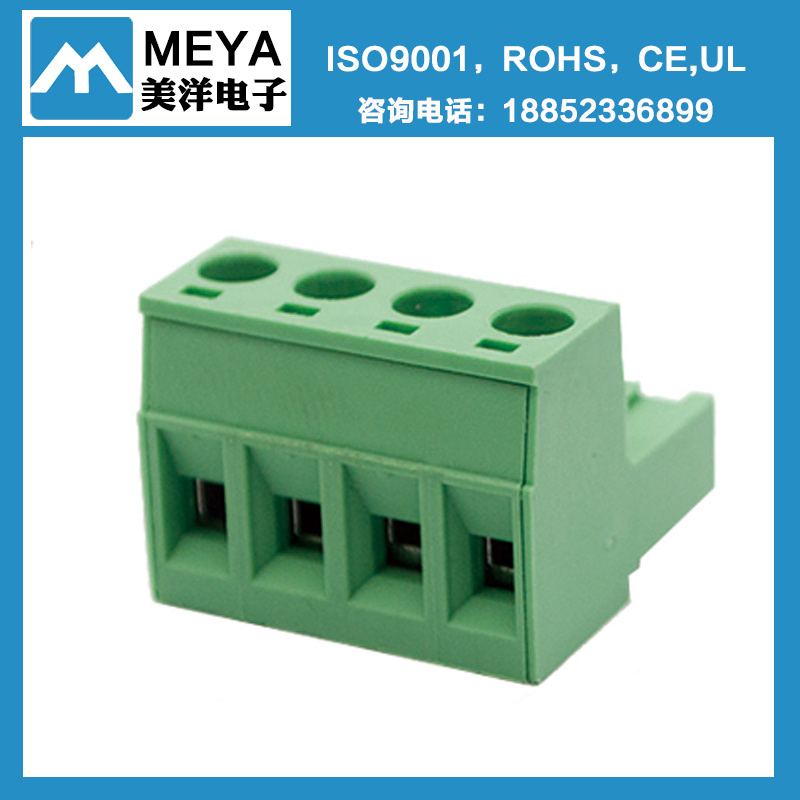

Plug-in Terminal Block

pitch: 3.5mm, 3.81mm
Clamp: Brass, Ni plated
Housing: PA66, UL94V-0


Plug-in Terminal Block

Material
Screws: M2 steel Zinc plated
Wire guard:Phosphor bronze, Ni plated
Clamp: Brass, Ni plated
Housing: PA66, UL94V-0

Electrical
Rated voltage: 125V
Rated current: 8A
Contact resistance: 20mΩ
Insulation resistance: 5000MΩ/1000V
Withstanding voltage: AC 2000V/1 Min
Wire range: 26-16AWG 1.5MM2

Mechanical
Temp. Range: -40~ +105
MAX Soldering: +250  , for 5 Sec.
Torque: 0.2Nm(1.7lb.in)
Strip length: 6-7mm

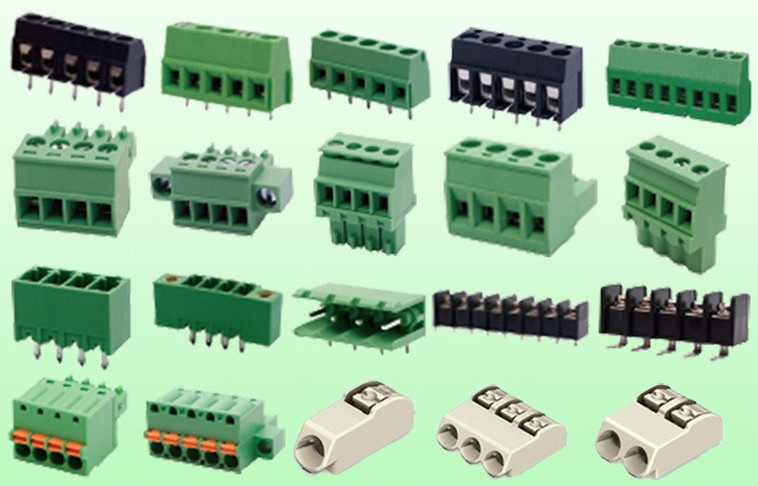

Other photo

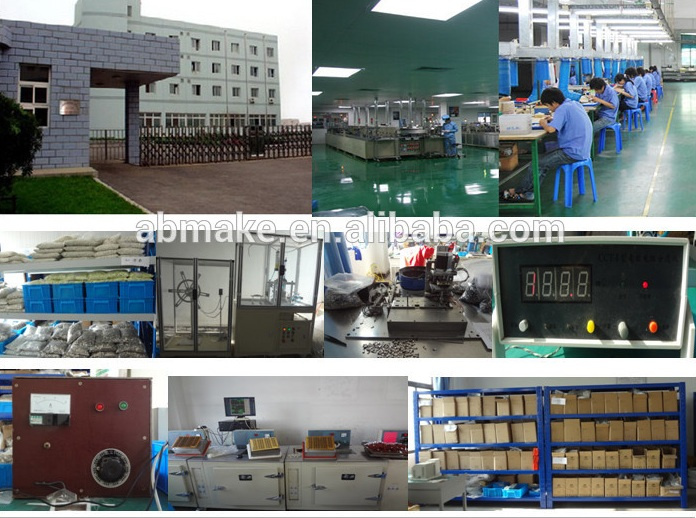

Factory photo









Prod Model: 15EDGK
Application: Power,Adapter,Motor
Environmental Protection: General
Connection Mode: Push-Pull Connection
Contact Termination Form: Screws Fixed
Shape: Square
Type: Pluggable Terminal Block
Character: 15A
Brand: My
We are Ningbo Meiyang Electronics Co., Ltd. Located on the South Coast of Hangzhou Bay in Yangtze Delta, where is very close to Shanghai. We are professional in manufacturing terminal block and connector that are widely used in appliance, anti-theft devices, electric power industry automation, instrument and other equipment. We have our own research and development team, and our fine manufacturing system is subdivided into plastic molding, punching molding, hardware manufacturing, injection molding and assembling. We consistently develop in improving quality at same time to reducing cost by lean-production, standardization and increasing production, which make us more competitive and obtain more support and confidence from our customers.

Sincerely we hope our products could be suitable to you and we could provide you with better quality, cheaper price and best service in our cooperation.
