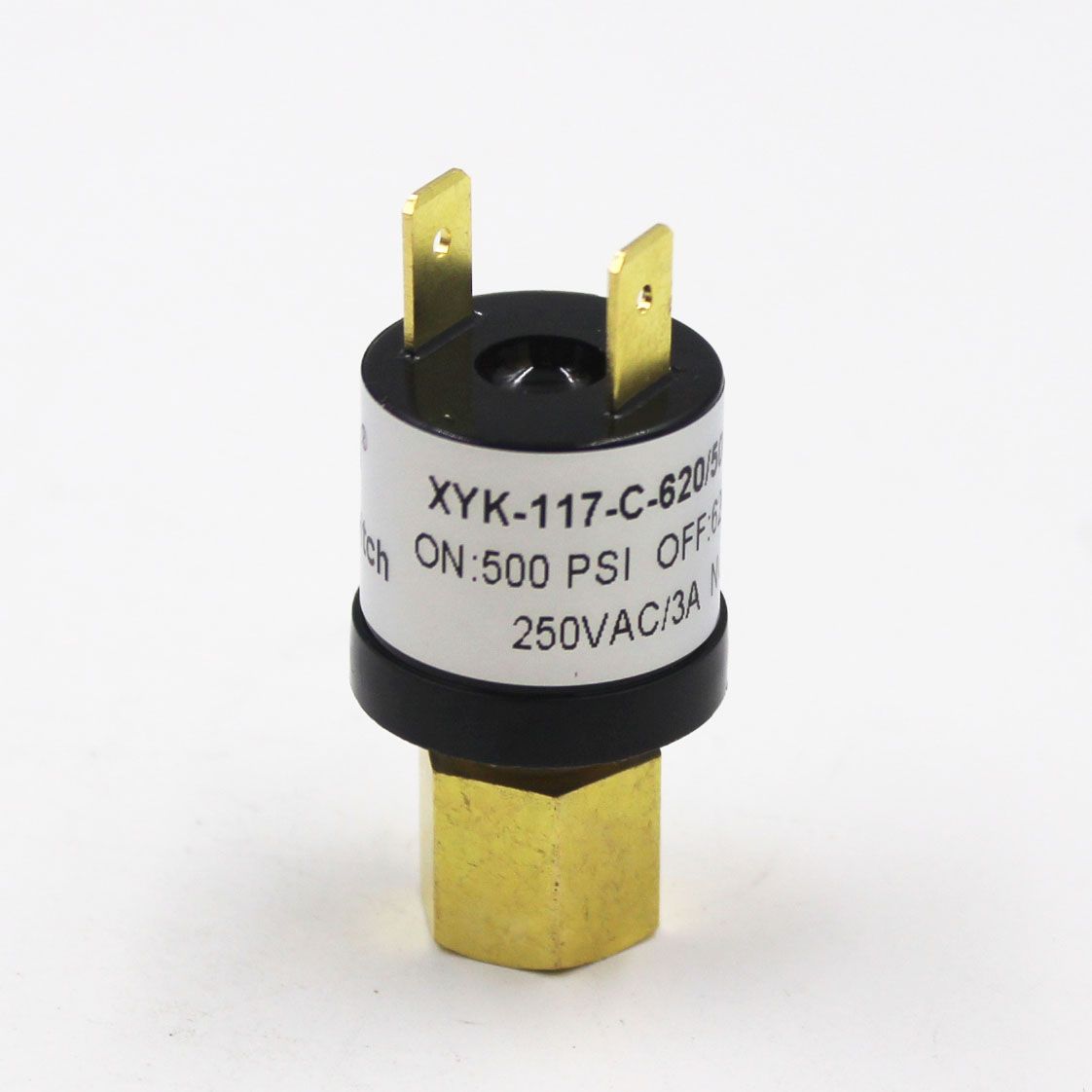

5-650psi(Factory Calibrated) blade type pressure switch for air compressor
Feature & BenfitsAutomatic Reset
Single-Pole,single throw switch
normally open or normally close
Factory calibrated set point from 5 PSI to 650PSI
High cycle life-Proven reliability
Custom engineered solutions
Applications: Comperssors & Pumps,Hydraulics
Pneumatics,Engine Controls
Construction Equipment
Agricultural Equipment
| Model | XYK-117 |
| Media | Air, Water, motor oils, transmission oils, Hydrocarbon Media, Refrigeration fluid |
| Pressure Set Point | actuation from 0.2 to 20 Bar |
| Max Operating Pressure | 25 Bar for actuation up to 10 Bar
35 Bar for actuation from 10-20 Bar
|
| Proof Pressure | 35 Bar for actuation up to 10 Bar
55 Bar for actuation from 10-20 Bar
|
| Operating Temperature Range | -30? C to ~ 80? C |
| Switch Type | Direct action, blade contact, SPST NC, NO |
| Electric Rating | 120/240VAC, 375VA 24VAC/DC, 2A |
| Dielectric Strength | 750 Vrms across open contacts 1550 Vrms terminals to fitting |
| Terminals | 1/4? blade |
| Life at Related Load | 100,000 cycles |
| Connection | 1/8NPT, G1/8", 1/4NPT, G1/4" |
| Options | various connector thread sizes |
