5.8GHz Dimmable Microwave Radar Sensor Motion Detector

Name: 5.8GHz Dimmable Microwave Radar Sensor Motion Detector
Brand: all-electronics-online.com
SKU: 733307372
Availability: InStock
Rating: 4.4 (21 reviews)

Price:	Negotiable/Piece
Min Order:	10/Piece
Pay Type:	L/C,T/T,Western Union,Money Gram

Contact Supplier

Showroom Product Company Profile

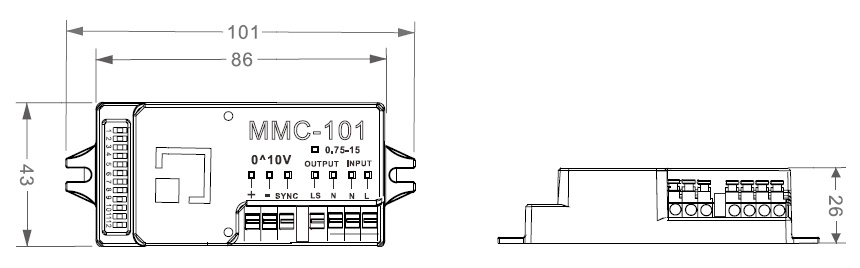

Size and Dimension:

L*W*H: 101mmx43mmx26mm

Specifications:

*Operating Voltage*	110-277V AC 50/60Hz
Rated Load	400W@220V AC (Inductive) 800W @220V AC (Capacitive) 2400W@220V AC (Resistive)
HF System	5.8G±75MHz, ISM Wave Band
Transmitting Power	<0.3mW
Power Consumption	<0.5W(standby)
Initial Starting Hold Time	10S
Detection Area (Radius)	2-9Meters
Detection Angles	150°
Mounting Height	3-10Meters
Sensing Distance Level	100%/75%/50%/10%
100% luminance Hold Time	5S/30S/1Min/5Min/10Min/20Min/30Min
Darken Period	0/10S/1Min/5Min/10Min/30Min/1H,+∞
Standby DIM level	10%,20%,30%,50%
Daylight Sensor	2lux/10Lux/50Lux/Disable
Operating Temperature	-20ºC ^ 80ºC

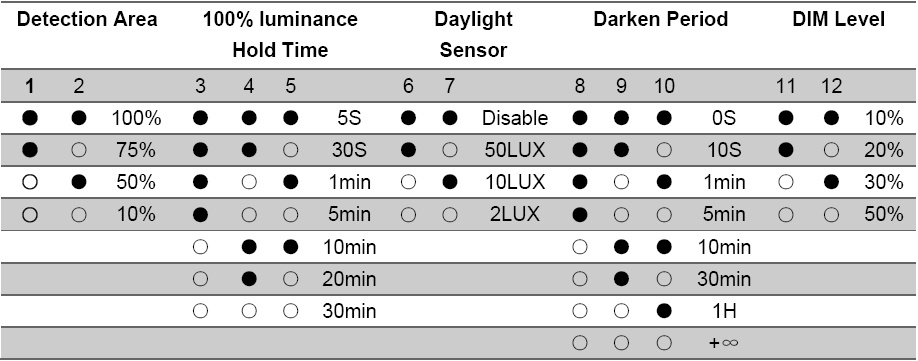

DIP Configuration:

12Pin DIP switch, ○=OFF

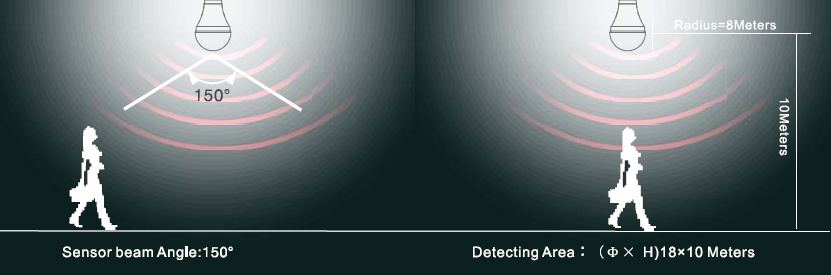

Detection Pattern:

Group Control Wiring:

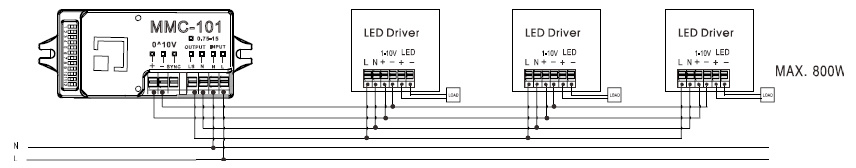

- 1/1 gang control wiring:

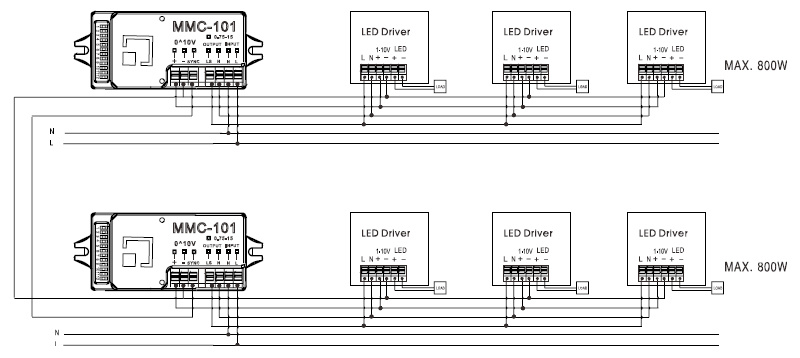

- Slave/Master Control Wiring:

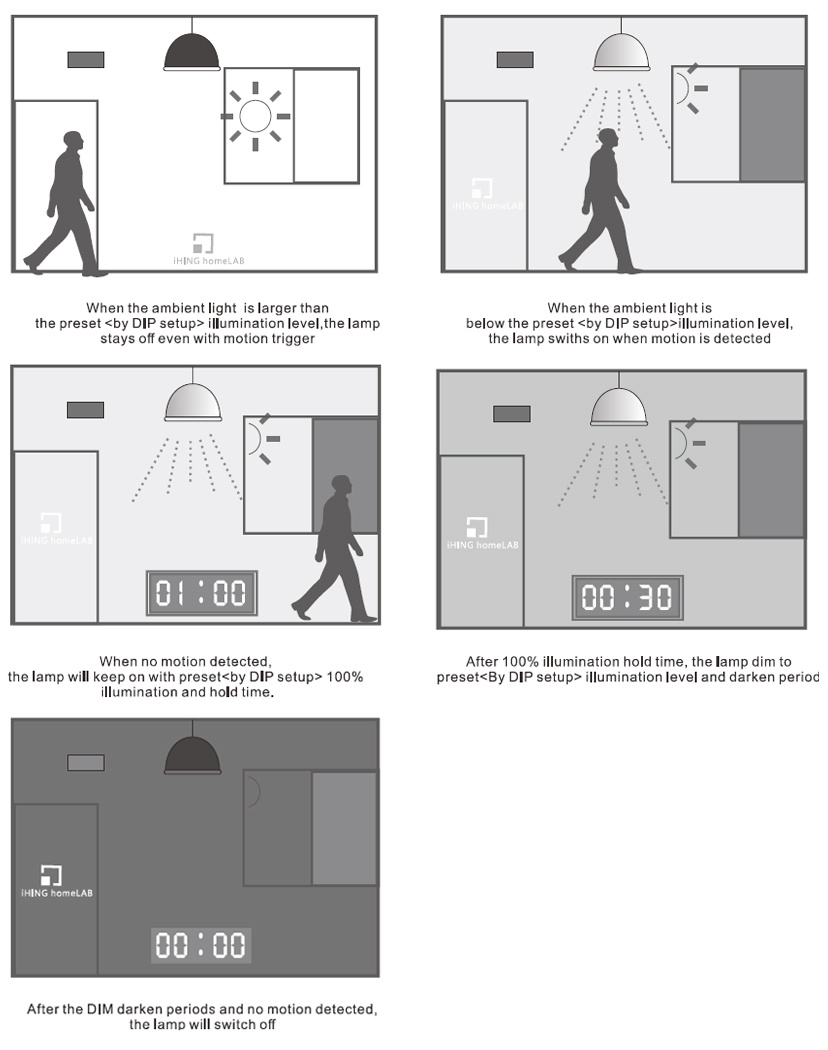

How it works?

Prod Model:	MMC-101
Operating Voltage:	110-277V AC 50/60Hz
Detection Area (Radius):	2-9meters
Type:	Microwave Sensor Switch
Principle:	Electromagnetic Wave
Application:	Lighting
