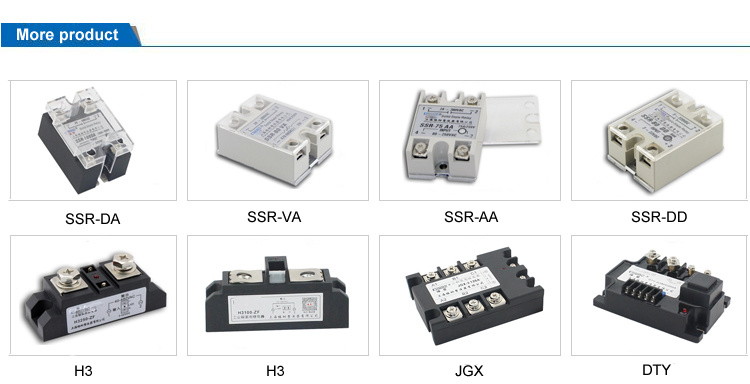

5 amp to 120 amp DC to DA , AC to AC , DC to DC SSR Single phase solid state relay
Features:
1. A bi-directional controlled silicon ouput, zero voltage open, zero current switching;
2. Between input circuit and output circuit have optical isolation;
3. Solation voltage between input and output is 2500V;
4. Output of the power metal-oxide field effect transistor is very low on-resistance;
5. Input signal compatible with TTL logic circuits;
6. Between input circuit and output circuit have Transformer isolation;
7. LED indicated the working state;

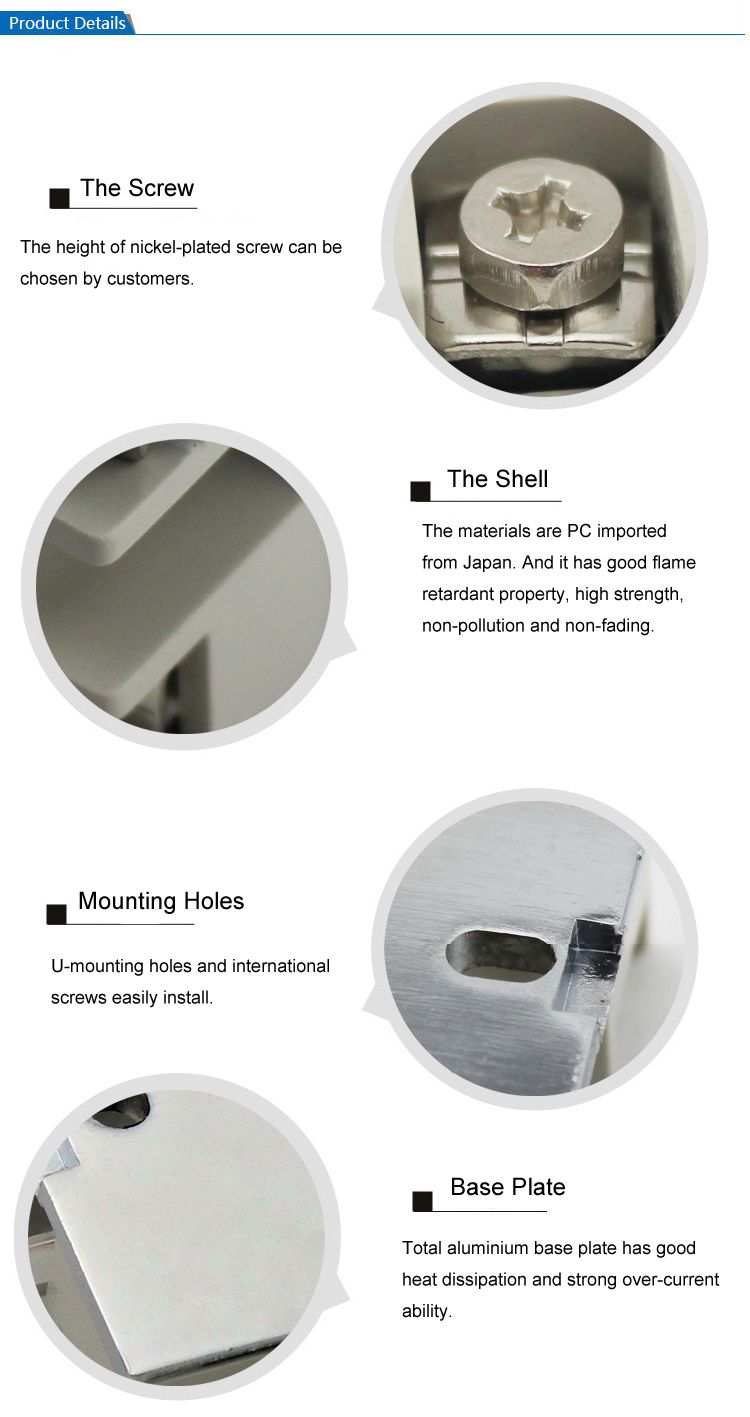

8. With security cover.

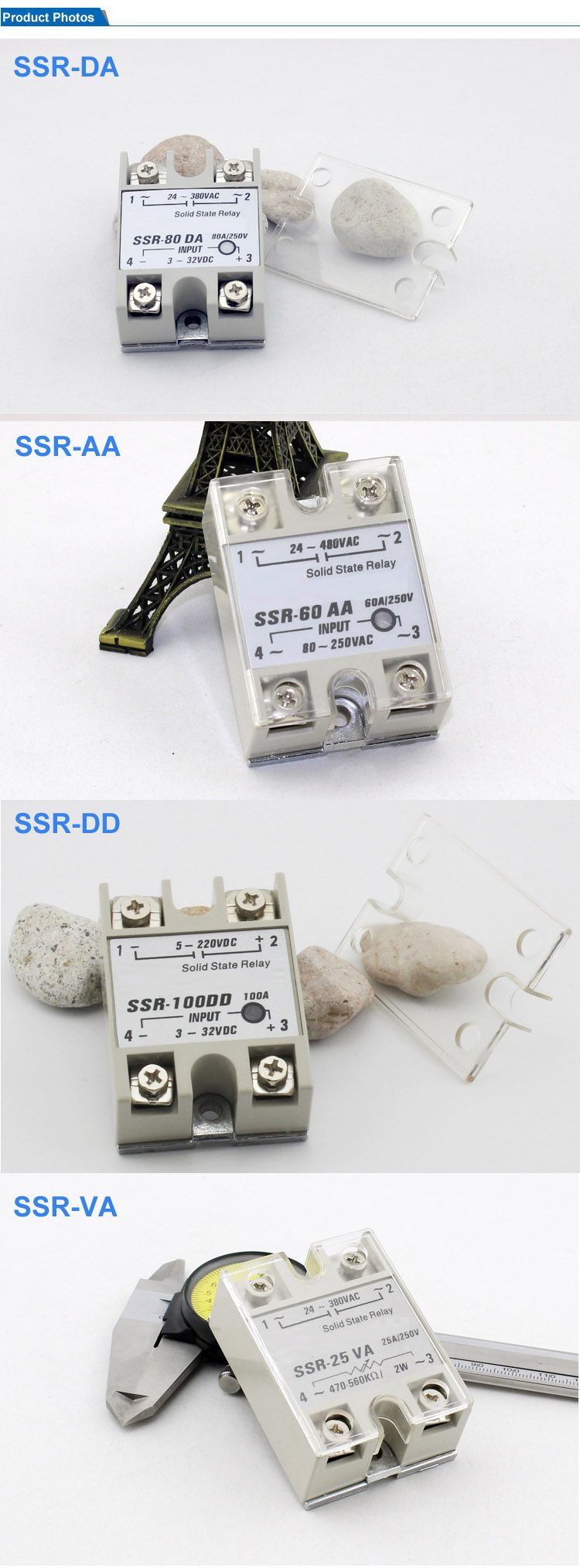

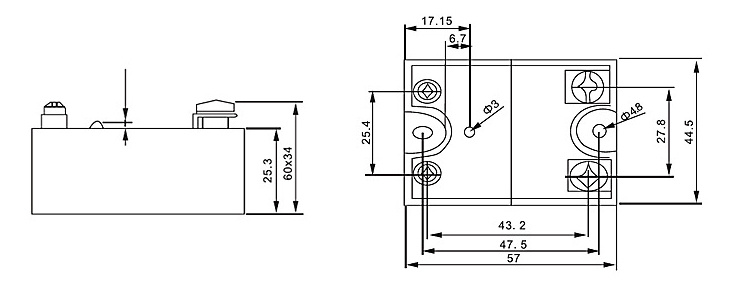

SSR-DA Series Solid State Relay(DC to AC) | Rated load current(A) | Operating voltage(V) | Min.On voltage(V) | Triggrt current 12V | Load Voltage(V) | Peak current(A) | Off leakage current(mA) | On-off time(ms) | Insulation Voltage(V) | Tj(ºC) |
| 5 | 3-32 | >2.4 | 7.5mA(12V) | 240/480 | 130 | 3.0 | 10 | 2500 | -30ºC~80ºC |
| 10 | 3-32 | >2.4 | 7.5mA(12V) | 240/480 | 135 | 3.0 | 10 | 2500 |
| 20 | 3-32 | >2.4 | 7.5mA(12V) | 240/480 | 270 | 3.0 | 10 | 2500 |
| 25 | 3-32 | >2.4 | 7.5mA(12V) | 240/480 | 275 | 3.0 | 10 | 2500 |
| 30 | 3-32 | >2.4 | 7.5mA(12V) | 240/480 | 300 | 3.0 | 10 | 2500 |
| 40 | 3-32 | >2.4 | 7.5mA(12V) | 240/480 | 410 | 3.0 | 10 | 2500 |
| 50 | 3-32 | >2.4 | 7.5mA(12V) | 240/480 | 500 | 3.0 | 10 | 2500 |
| 60 | 3-32 | >2.4 | 7.5mA(12V) | 240/480 | 635 | 3.0 | 10 | 2500 |
| 70 | 3-32 | >2.4 | 7.5mA(12V) | 240/480 | 700 | 3.0 | 10 | 2500 |
| 75 | 3-32 | >2.4 | 7.5mA(12V) | 240/480 | 850 | 3.0 | 10 | 2500 |
| 80 | 3-32 | >2.4 | 7.5mA(12V) | 240/480 | 900 | 3.0 | 10 | 2500 |
| 90 | 3-32 | >2.4 | 7.5mA(12V) | 240/480 | 990 | 3.0 | 10 | 2500 |
| 100 | 3-32 | >2.4 | 7.5mA(12V) | 240/480 | 1100 | 3.0 | 10 | 2500 |
| 120 | 3-32 | >2.4 | 7.5mA(12V) | 240/480 | 1250 | 3.0 | 10 | 2500 |

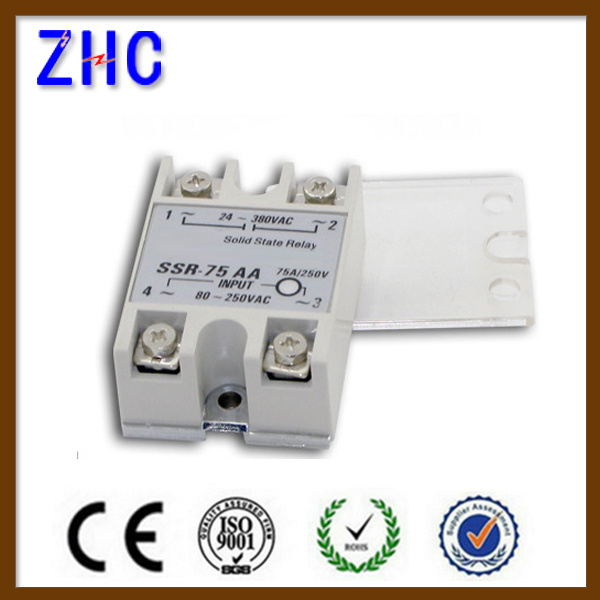

SSR-AA Series Solid State Relay (AC to AC)
| Rated load current(A) | Operating voltage(V) | Min.On voltage(V) | Triggrt current 12v | Load Voltage(V) | Peak current(A) | Off leakage current(mA) | On-off time(ms) | Insulation voltage(V) | Tj(ºC) |
| 10 | 90~280 | >5.0 | 8.0 (<110V) | 24-240 | 135 | 3.0 | 20 | 2500 | -30ºC~80ºC |
| 20 | 90~280 | >5.0 | 8.0 (<110V) | 24-240 | 200 | 3.0 | 20 | 2500 |
| 25 | 90~280 | >5.0 | 8.0 (<110V) | 24-240 | 275 | 3.0 | 20 | 2500 |
| 40 | 90~280 | >5.0 | 8.0 (<110V) | 24-240 | 410 | 3.0 | 20 | 2500 |
| 60 | 90~280 | >5.0 | 8.0 (<110V) | 24-240 | 500 | 3.0 | 20 | 2500 |
| 80 | 90~280 | >5.0 | 8.0 (<110V) | 24-240 | 610 | 3.0 | 20 | 2500 |
| 100 | 90~280 | >5.0 | 8.0 (<110V) | 24-240 | 725 | 3.0 | 20 | 2500 |
| 120 | 90~280 | >5.0 | 8.0 (<110V) | 24-240 | 725 | 3.0 | 20 | 2500 |
SSR-DD Series Solid State Relay (DC to DC)
| Rated Load Current(A) | Control voltage(V) | Control current(mA) | Load voltage(V) | Off leakage current(mA) | Tum on time(ms) | Tum off time(ms) | Insulation voltage(V) | Tj(ºC) |
| 10 | 3-32 | 5~50 | 5~220 | ≤1 | ≤0.15 | ≤0.8 | 2500 | -30ºC~80ºC |
| 20 | 3-32 | 5~50 | 5~220 | ≤1 | ≤0.15 | ≤0.8 | 2500 |
| 25 | 3-32 | 5~50 | 5~220 | ≤1 | ≤0.15 | ≤0.8 | 2500 |
| 40 | 3-32 | 5~50 | 5~220 | ≤1 | ≤0.15 | ≤0.8 | 2500 |
| 60 | 3-32 | 5~50 | 5~220 | ≤1 | ≤0.15 | ≤0.8 | 2500 |
| 80 | 3-32 | 5~50 | 5~220 | ≤1 | ≤0.15 | ≤0.8 | 2500 |
| 100 | 3-32 | 5~50 | 5~220 | ≤1 | ≤0.15 | ≤0.8 | 2500 |
SSR-VA Series Solid State Voltage Regulator
| Rated load current(A) | Operating voltage(V) | Block voltage(V) | Voltage drop(V) | leakage current(mA) | Peak current(A) | Dielectric strngth(V) | Peak current(A) | Insulation voltage(V) | Tj(ºC) |
| 10 | 0~470 | 600 | 2.0 | 135 | 5.0 | 2500 | 135 | 50/500 | -30ºC~80ºC |
| 25 | 0~470 | 600 | 2.0 | 275 | 5.0 | 2500 | 275 | 50/500 |
| 40 | 0~470 | 600 | 2.0 | 410 | 5.0 | 2500 | 410 | 50/500 |
| 60 | 0~470 | 600 | 2.0 | 535 | 5.0 | 2500 | 535 | 50/500 |
| 80 | 0~470 | 600 | 2.0 | 675 | 5.0 | 2500 | 675 | 50/500 |
| 100 | 0~470 | 600 | 2.0 | 835 | 5.0 | 2500 | 835 | 50/500 |
