5 Years Warranty High-Efficient Lumen Output White 1W Power LED Diode

Name: 5 Years Warranty High-Efficient Lumen Output White 1W Power LED Diode
Brand: all-electronics-online.com
SKU: 790124165
Availability: InStock
Rating: 4.3 (130 reviews)

Price:	US $ 0.16-0.21/Piece
Min Order:	10000/Piece
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

5 Years Warranty High-efficient Lumen Output White 1W Power LED Diode

160-170LM High Power 1W LED Chip
Power	1W	Viewing Angle	120°
Forward Voltage	2.8-3.4V	Storage Temperature	0- +60ºC
Forward Current	350mA	Operating Temperature	-40~ +60ºC
Luminous Flux	160-170LM	Junction Temperature	115ºC
CCT	5000-5500K	Thermal Resistance	12ºC/W
CRI	>70	LM-80	Yes

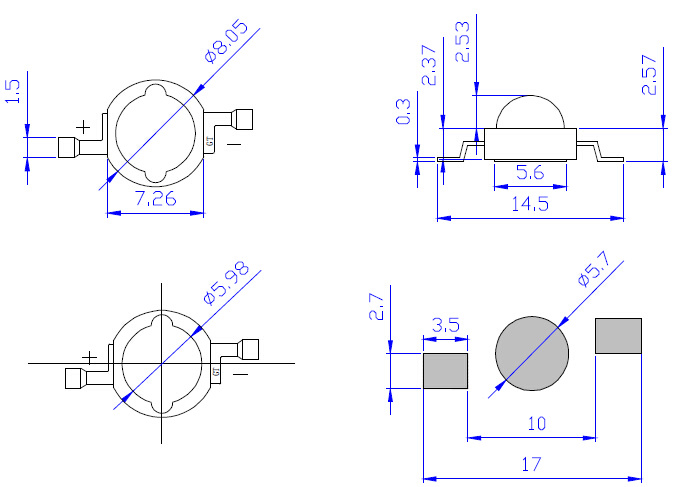

Product Dimension

GETIAN High Power LED Material Introduction & Comparison

Chip	Getian/ Reliable Products	Bridgelux /Epistar	Getian has got certificate of Authorization from Bridgelux and Epistar. Build strategic partnership with Bridgelux. High reliability.
	Others/Poor Quality Products	Other brand/ fake Bridgelux & Epistar	Fake chips cost much less. A huge price gap.The actual power is much lower than claimed. (eg:100w usually 70w actual.)Shorter life span with great light decay.
	Notes	Fake chips lack reliability. Be cautious especially when using outdoor. Hard and costly to maintain.
Phosphor/ Silica gel	Getian/ Reliable Products	Intermatix/ patented recipe and improved technique. Find a best combination of the ratio between phosphor and silica gel.	When temperature goes high, phosphor can resist it and keep the CCT value stable and even from different angle.
	Others/Poor Quality Products	Intermatix/ others (recipe unknown)	Color temperature will drift when temp. goes high. CCT not even distributed from every angle.
	Notes	Our phosphor recipe has been successfully applied for 10 years.
Gold Wire	Getian/ Reliable Products	1.2mil 1W / 1.5mil COB / Purity 99.99%	High purity gold wire has better ductility. Resist high current shock.
	Others/Poor Quality Products	1.0mil 1W/ 1.2mil COB / Al alloy	Easy to break, more likely lead to led failure.
	Notes	About 80% led failure comes from the break of the gold wire.
BBOS Technique	Getian/ Reliable Products	Gold wire double attach method and small arc, soldering ball	BBOS technique increases reliablity and decreases the risk of the break of gold wire.
	Others/Poor Quality Products	One time soldering	Higher risk of the break of gold wire.
	Notes	No extra soldering ball or small arc added will cause potential risk of wire soldering point falling off.
Silver Epoxy	Getian/ Reliable Products	Purity 95% (plus microelement)	Tested many times and proved reliable.(suitable proportion)
	Others/Poor Quality Products	<95% / or even use transparent insulation paste	Transparent paste has very low heat conductivity, 1/25 of silver epoxy. Although intial lumen is high but light drop fast.
	Notes	Microelements will help increase the adhesiveness. Higher the purity better the heat conductivity but decrease in adhesiveness.
Copper Base/ Soldering Pins	Getian/ Reliable Products	Red Copper/ Copper covered with silver/ PPA (white part)	High heat conductivty. Red Copper: 400W/mK
	Others/Poor Quality Products	Yellow Copper (brass) / Aluminum, Steel	Low heat conductivity. Yellow Copper: 100W/mK. Aluminum: 205W/mK. Steel is easy to corrode.
	Notes	The heat conductivity of red copper is nearly 4 times higher than brass. PPA material has good high temperature resistance
Silver Plating (on the reflection layer of the chip)	Getian/ Reliable Products	Thickness 100-120Ü	Suitable thickness layer
	Others/Poor Quality Products	40-60 Ü, 60-80Ü, 80-120 Ü	Copper substance will go up through the thinner layer when lit up, causing blackness on the silver layer thus decreasing the brightness.
	Notes	Not too much silver plating either, which will cause decrease in adhesiveness.
Color Separation	Getian/ Reliable Products	2 times	Guarantee good color unity. Normal range within + -250K
	Others/Poor Quality Products	mostly 1 time	Wider range or not so consistent.
	Notes	Phosphor Spraying (first time check); Binning (Second time check.)
Reliability/ Warranty	Getian/ Reliable Products	4 years warranty	Real Life test report
Reliability/ Warranty	Others/Poor Quality Products	Unknown	/
Developing Ability	Getian	Brand-New flip chip led released. Max power up to 300W. Lighting area 1.4mm². High luminous intensity: 50LM/mm²	Strong developing team. Improve current production line. And release new and high-end products regularly.
	Others Company	Unknown	/
	Notes	First one in China. (Especially for stage light, projector and track light) More details...

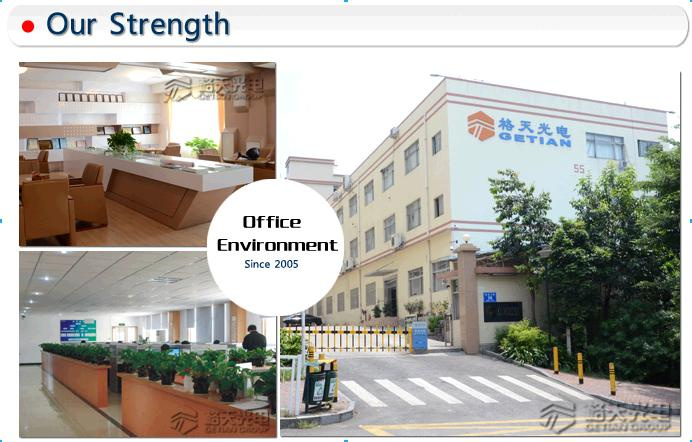

Factory Photo

Why Choose Getian

GETIAN is a Market-Leading Innovator in High Integration & Super Power Flip Chip LED Field.

Strong R & D Forces

* A strong R & D team of more than 40 experienced engineers.
* CNAS Accredited Laboratory.
* Launch highly-competitive new products seasonly.
* Revolutionary launch for a full series of high power & high integration ceramic flip chip led.

Extensive Application Experience & Quality Commitment

* Strict control over raw materials selection.
* 5 Years Warranty;
* Reliable long life span; LM-80 certification for High Power LED 1-300W.
* More than 10 years' experience in Outdoor Lighting application both in domestic and overseas market.
* Supported many government lighting projects.

Outstanding Service Level

* Professional Sales Team backing up with experienced engineers.
* Best Quality & Best Price & Best Service.
* Customizaiton and OEM service available.

More detail, please feel free to contact with Jonika Peng who will try her best to support you

Prod Model:	GT-P02W4-1W
Product Name:	1W Power LED Chip
Current:	350mA
Voltage:	3.0-3.6V
CRI:	70-90
CCT:	5000-7000k
Luminous Flux:	160-170lm
Beam Angle:	120
Chip 1:	Bridgelux 45mil Chip
Chip 2:	Epistar 38mil Chip

Shenzhen Getian Opto-electronics Co., Ltd. is a manufacturer specializing in LED components aiming to a global presence. Since established in 2005, GeTian has delivered the LED components products, technological innovations, and unparalleled customer trust level around the domestic and oversea marketing for over years.

Total investment is 50, 000, 000 yuan and production area is over 5, 000 square meters. Getian has 500 employees and more than 70 are R&D staffs. We have equipped full-automatic production machines for all the key manufacturing processes and full set testing machines. The annual capacity of high power LED is over 60, 000, 000PCS.

With more than 7 years' outstanding growth, Getian has become a group corporation which has high power LED, SMD LED and LED driver as the core business units. Shell fittings of LED, mold design and manufacturing are also well developed to have Getian be able to provide more comprehensive and professional service all over the world.

Getian insist that quality is one of core competence. All of the main products are listed with CE, RoHS, SGS certification and will pass in-house robust reliability testing before leaving factory. Besides, more than 12 patents have been obtained in LED design and manufacturing field. We successfully got ISO9001: 2008 certification and started running the ERP and BPC system in 2009. With all these outstanding performance, Getian achieved series of great honors, such as "Top 50 LED Manufacturer in China", "Hi-Tech. Enterprise", "Shenzhen Hi-Tech. Enterprise", and "Shanghai Expo Exhibition Enterprise", etc.

Warmly welcome all fields of friends to visit our company and negotiate trade.
