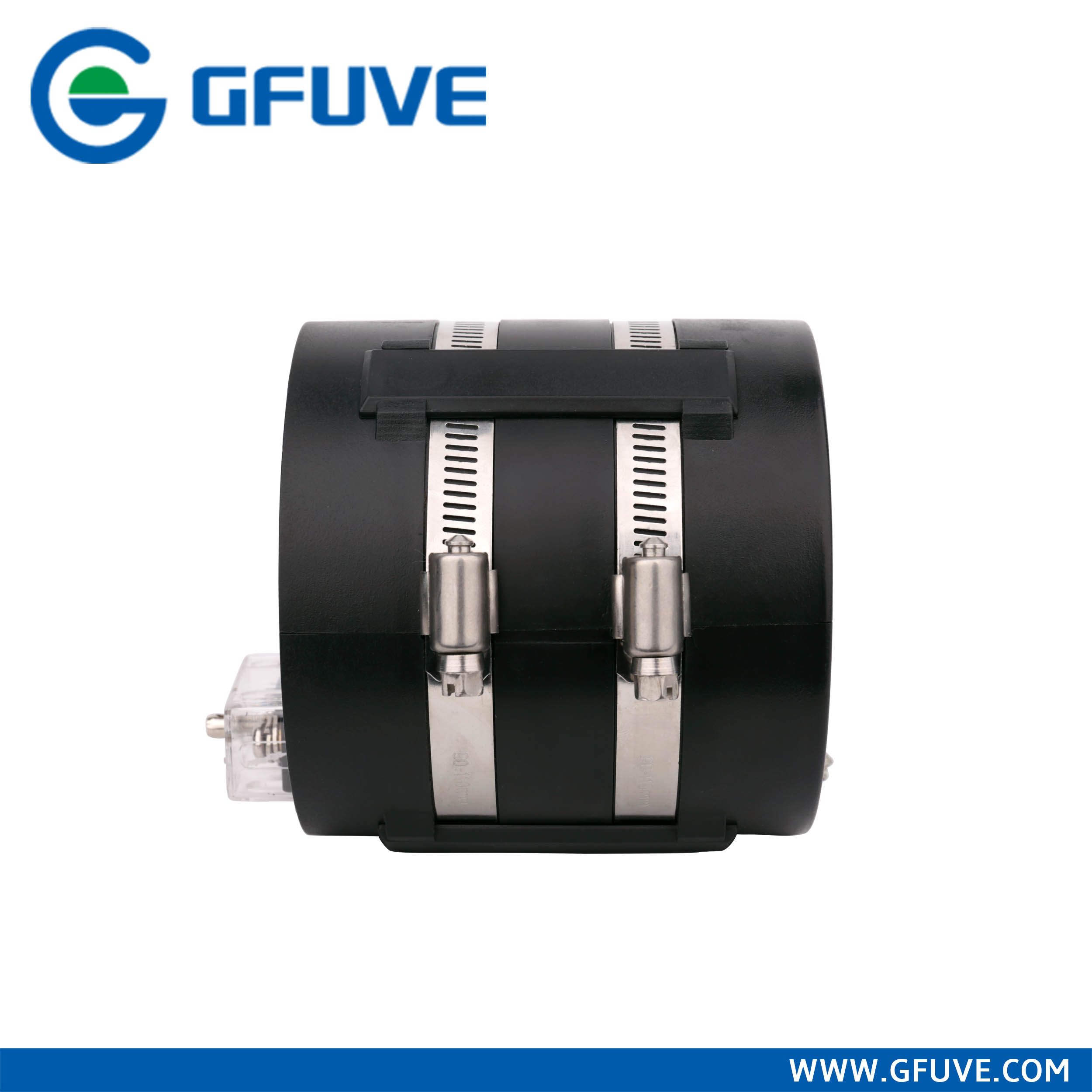

500/5A Split Core CT Current Transformer

Name: 500/5A Split Core CT Current Transformer
Brand: all-electronics-online.com
SKU: 726658322
Availability: InStock
Rating: 4.7 (30 reviews)

Price:	US $ 60-100/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Product Description
LZCK series split core current transformer is suitable for current measurement and microcomputer protection of electrical equipment in 10KV and 35KV AC power system. It is widely used in compact fully insulated ring network switchgears such as ABB-SafeRing/SafePlus...and cable distribution boxes.
The transformer can be directly installed at the inlet and outlet cables.The slice is imported silicon material. The semicircular ring core and secondary windings are vacuum poured by insulated resin.
Parameters

Technical parameters
Standards	IEC60044-1; IEC 61869-2; ANSI C57.13; NTC 2205; GB1208-2006
Rated primary current	20-600A
Rated load	≤25VA
Rated frequency	50Hz or 60Hz
Rated secondary current	5A or 1A
Rated short-time thermal current	40kA, 1S
Rated continuous thermal current	120%I1n
Secondary winding power-frequency voltage	3kV, 1min
Instrument security factor	FS≤10
Mechanical parameters
Dimensions (W×D×H) (mm)	φ50xφ110x105
Weight (kg)	3.1
Operating conditions
Operating temperature	-35°C to +55°C
Daily average temp	<+40°C
Altitude	<3500 meters
Condition	No existence of severely begrimed, erosive and radioactive gas in the air. Permission of long-term operation under rated current.

TECHNICAL DATA

Type	LZCK350-10	LZCK350-10	LZCK350-10
Purpose	Measuring current transformer	Protection current transformer	Double winding current transformer
Ratio	Accuracy class and rated burden(VA)	Accuracy class and rated load (VA)	Composite accuracy class and rated load (VA)
I1/I2	0.5	1	3	10P15	10P10	10P5	0.5	1	10P10	10P5
20/1			0.5			0.75
30/1		0.5	1.5		0.75	1.25
50/1		1	2		1.25	2
75/1	2	2.5	3.75	1.25	2	3		2	1	2
100/1	2.5	3.75	5	2	2.5	5	2	2.5	1.5	2.5
200/1	5			3	5	7.5	2.5		2
300/1	10			3	5	7.5	3.75		2.5
400/1	10			3	5	10	5		2.5
500/1	25			3.75	6.25	10	5		2.5
600/1	25			5	7.5	10	7.5		5
50/5			2.5			2
75/5			2.5			3
100/5	2.5		3.75			5		2.5		2.5
200/5	7.5						2.5	5		2.5
300/5	10						5		2	2.5
400/5	15						7.5		2.5	5
500/5	25						7.5		2.5	5
600/5	30						10		3	7.5

Prod Model:	LZCK350-10
Accuracy Class:	0.5%, 1%
Key Words:	CT Current Transformer
Key Word:	500/5A Split Core CT
Rated Primary Current:	20-600A
Rated Load:	≤25va
Rated Frequency:	50Hz or 60Hz
Rated Secondary Current:	5A or 1A
Model:	Current Transformer Split
Weight (Kg):	3.1
Color:	Black or Customized
Application:	Position Sensor
Type:	Current Transformer
Phase:	Single
