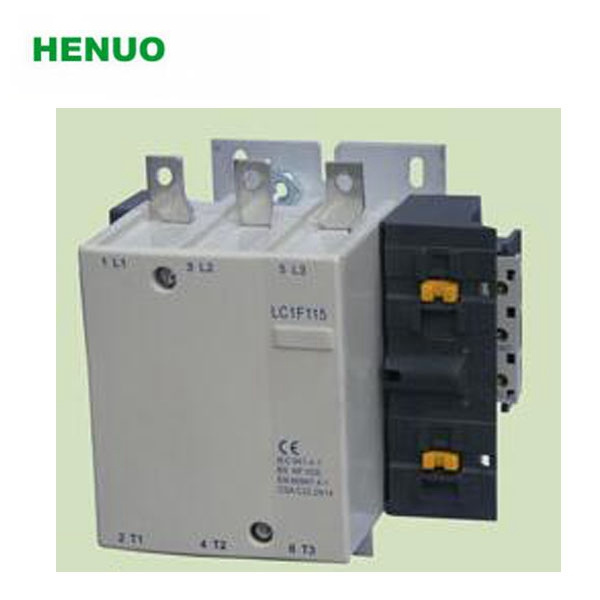

500A 630A 800A LC1-F Series Contactor
| Price: |
US $ 1.55-1.7/Piece |
| Trade Terms: |
FOB,CFR |
| Min Order: |
200/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
LC1-F |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model Number: |
LC1-F |
| Rated Operation Voltage: |
380, 660V |
| Rated Operation Current: |
63A |
| Max. Power Of 3 Phase: |
1.5-7.5kw |
| Electrical Life: |
200000times |
| Operation Frequency: |
AC-3 1200t/H AC-4 |
| Place Of Origin: |
Zhejiang, China (Mainl) |
Product Description
LC1(CJX2) series AC Contactor
Application:
CJX2 series AC Contactor is applicable in the circuit rated voltage up to 1000V AC. 50/60HZ, rated current up to 800A, for long distance breaking circuit and frequently starting or controlling the motor. It also can be used for the control of distributing circuits of rated current from 200A to 1600A (AC-1)/115A to 800A (AC-3).
Specification:
Model | Rated operation current(A) | Standard power ratings of 3-phase motors AC-3(KW) |
| AC-3 | AC-1 | 220/230V | 380/400V | 415V | 440V | 500V | 660/690V | 1000V |
| LC1-F115 | 115 | 200 | 30 | 55 | 59 | 59 | 75 | 80 | 65 |
| LC1-F150 | 150 | 280 | 40 | 75 | 80 | 80 | 90 | 100 | 65 |
| LC1-F185 | 185 | 275 | 55 | 90 | 100 | 100 | 110 | 110 | 100 |
| LC1-F225 | 225 | 315 | 63 | 110 | 110 | 110 | 129 | 129 | 100 |
| LC1-F265 | 265 | 350 | 75 | 132 | 140 | 140 | 160 | 160 | 147 |
| LC1-F330 | 330 | 400 | 100 | 160 | 180 | 200 | 200 | 200 | 160 |
| LC1-F400 | 400 | 500 | 110 | 200 | 200 | 250 | 257 | 280 | 185 |
| LC1-F500 | 500 | 700 | 147 | 250 | 280 | 295 | 355 | 335 | 335 |
| LC1-F630 | 630 | 1000 | 200 | 335 | 375 | 400 | 400 | 450 | 450 |
| LC1-F780 | 780 | 1600 | 220 | 400 | 425 | 425 | 450 | 475 | 450 |
| LC1-F800 | 800 | 850 | 250 | 400 | | | | 475 | 450 |
External dimensions & Installation dimensions:
Type | Amax | Bmax | Cmax | a | b | φ |
| LC1-F115/150 | 120 | 158 | 132 | 100±0.70 | 130±0.80 | 6.5 |
| LC1-F185 | 170 | 175 | 182 | 80±0.60 | 106±0.70/120±0.70 | 6.5 |
| LC1-F225 | 170 | 198 | 182 |
| LC1-F265 | 202 | 205 | 215 | 96±0.70 | 106±0.70/120±0.70 | 6.5 |
| LC1-F330 | 215 | 208 | 220 |
| LC1-F400 | 215 | 216 | 220 | 170±0.90 | 180±0.80 | 8.5 |
| LC1-F500 | 235 | 240 | 235 |
| LC1-F630/F800 | 320 | 310 | 260 | 180±0.80 | 180±0.80 | 10.5 |
