500V 600V 690V LC1-D12004 AC Contactor 4p
Price: |
US $ 1.55-1.7/Piece |
Trade Terms: |
FOB,CFR |
Min Order: |
200/Piece |
Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
Prod Model: |
LC1-D12004 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Model Number: |
LC1-D (Cjx2-D) |
Rated Operation Voltage: |
380, 660V |
Rated Operation Current: |
63A |
Max. Power Of 3 Phase: |
1.5-7.5kw |
Electrical Life: |
200000times |
Operation Frequency: |
AC-3 1200t/H AC-4 |
Place Of Origin: |
Zhejiang, China (Mainl) |
Product Description

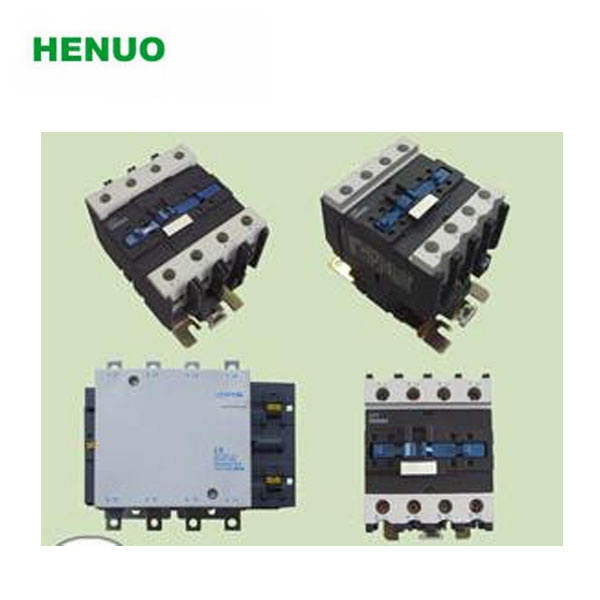

LC1(CJX2) series AC Contactor
Application:
LC1(CJX2) series AC Contactor is suitable for using in the circuits the rated voltage up to 660V AC 50HZ or 60HZ, rated current up to 95A, for making & breaking, frequently starting & controlling the AC motor. Combined with the auxiliary contact block, time delay & machine-interlocking contactor, star-delta starter. With the thermal relay, it is combined into the electromagnetic starter. The Contactor is produced according to IEC 60947-4.
Specification:
Model | Rated working current (A) | Rated heat current (A) | AC3 capacity of 4-phase squirrel-cage motor AC3(KW) |
220/230V | 380/400V | 415V | 440V | 500V | 600/690V |
| AC3 | AC4 | KW | KW | KW | KW | KW | KW |
LC1-D09004/008 | 9 | 3.5 | 20 | 2.2 | 4 | 4 | 4 | 5.5 | 5.5 |
LC1-D12004/008 | 12 | 5 | 20 | 3 | 5.5 | 5.5 | 5.5 | 7.5 | 7.5 |
LC1-D18004/008 | 18 | 7.7 | 32 | 4 | 7.5 | 9 | 9 | 10 | 10 |
LC1-D25004/008 | 25 | 8.5 | 40 | 5.5 | 11 | 11 | 11 | 15 | 15 |
LC1-D32004/008 | 32 | 12 | 50 | 7.5 | 15 | 15 | 15 | 18.5 | 18.5 |
LC1-D40004/008 | 40 | 18.5 | 60 | 11 | 18.5 | 22 | 22 | 22 | 30 |
LC1-D50004/008 | 50 | 24 | 80 | 15 | 22 | 25 | 30 | 30 | 33 |
LC1-D65004/008 | 65 | 28 | 80 | 18.5 | 30 | 37 | 37 | 37 | 37 |
LC1-D80004/008 | 80 | 37 | 125 | 22 | 37 | 45 | 45 | 55 | 45 |
LC1-D95004/008 | 95 | 44 | 125 | 25 | 45 | 45 | 45 | 55 | 45 |
