500W 115V-110V AC Motor with Planetary Reducer Floor Sweeper Machine
Price: |
Negotiable/Piece |
Min Order: |
5/Piece |
Pay Type: |
T/T |

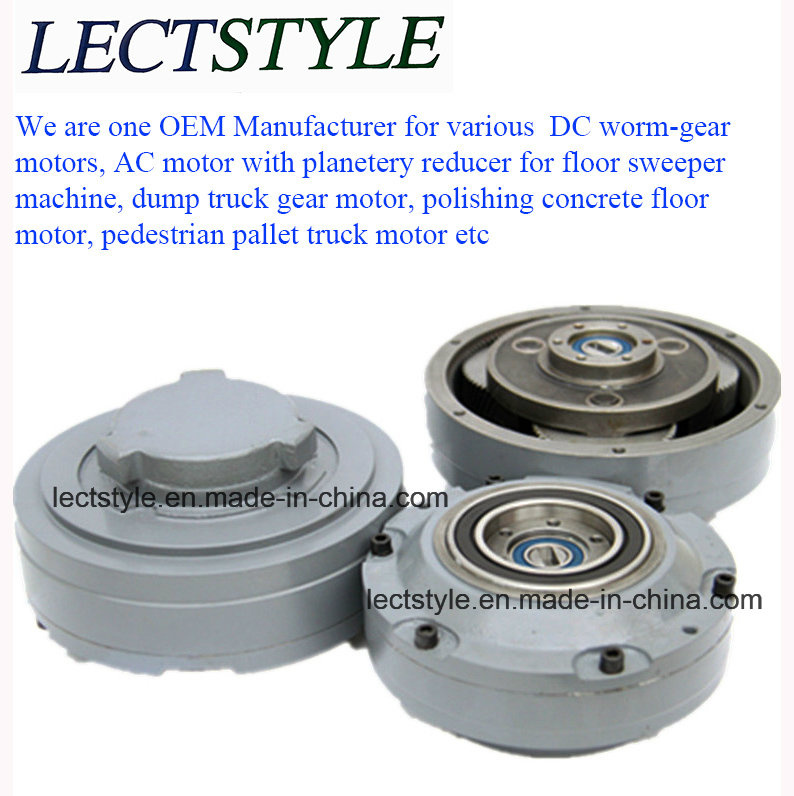

We are one OEM Manufacturer for various worm-gear motors, AC motor with planetery reducer for floor sweeper machine, dump truck gear motor, polishing concrete floor motor, pedestrian pallet truck motor etc
AC Motor with planetary reducer for our floor sweeper machine on its features:
1.Gear Ratio: 10:1, 8:1, 6.6:1
2. 115V or 110V AC; 60Hz/ 50Hz;
3. Output power:450 W
4.Minimum vibration, lower noise
5. Specific sealing design
6. Adjustable output speed at customer's option
7. this AC motor with planetary reducer is suitable for various floor polishing machine, road sweeper, concrete polishing machine, ride-on sweeper etc.AC motor with planetary reducer |
Item | Value |
Rated Power | 450W |
Rated Voltage | 110V/115V AC, 60Hz/50Hz |
Insulation Class | F Class |
No-load Speed | 60Hz, 1670-3300rmp |
50Hz, 1950-3360rpm |
No-load Output Speed | 60Hz, 167-330rmp |
50Hz, 196-336rpm |
Starting Current | ≤3.5A max |
No-load Current | ≤3A |
Reducer Speed Ratio | 10:1, 8:1, 6.6:1 |
Insulation volatage | 0--550 AC/ 1 mA/ 1 sec. |

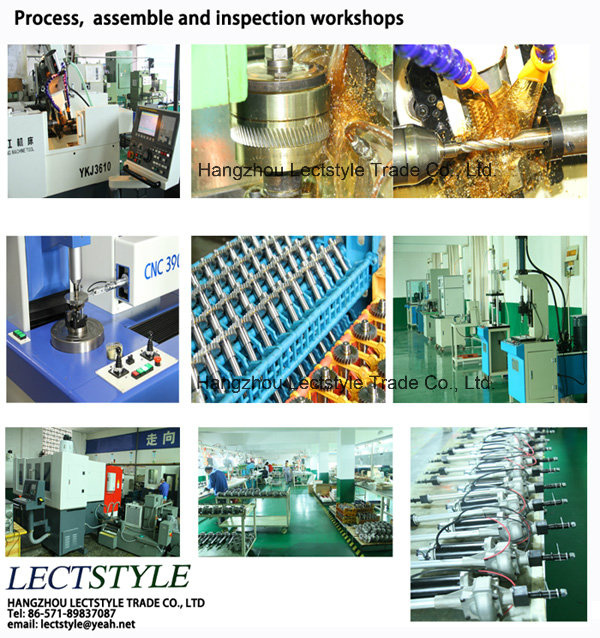

Our processing workshop:

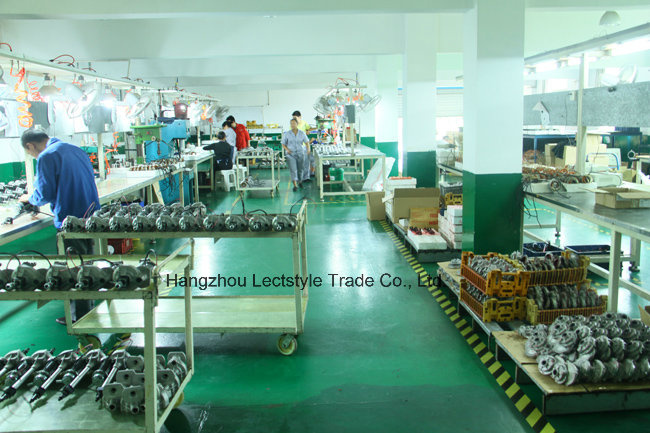

Our assembled workshop:

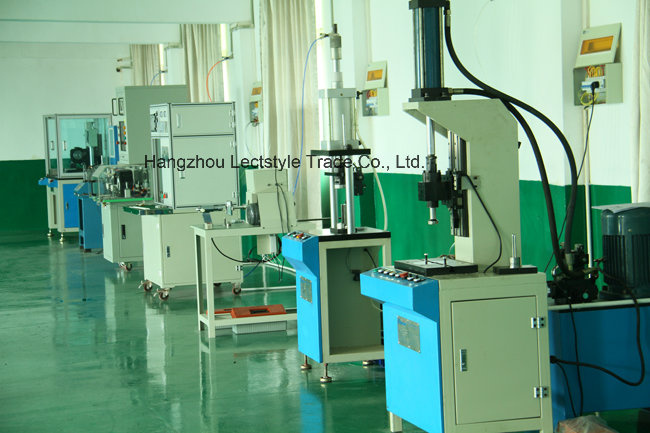

Our inspection workshop:

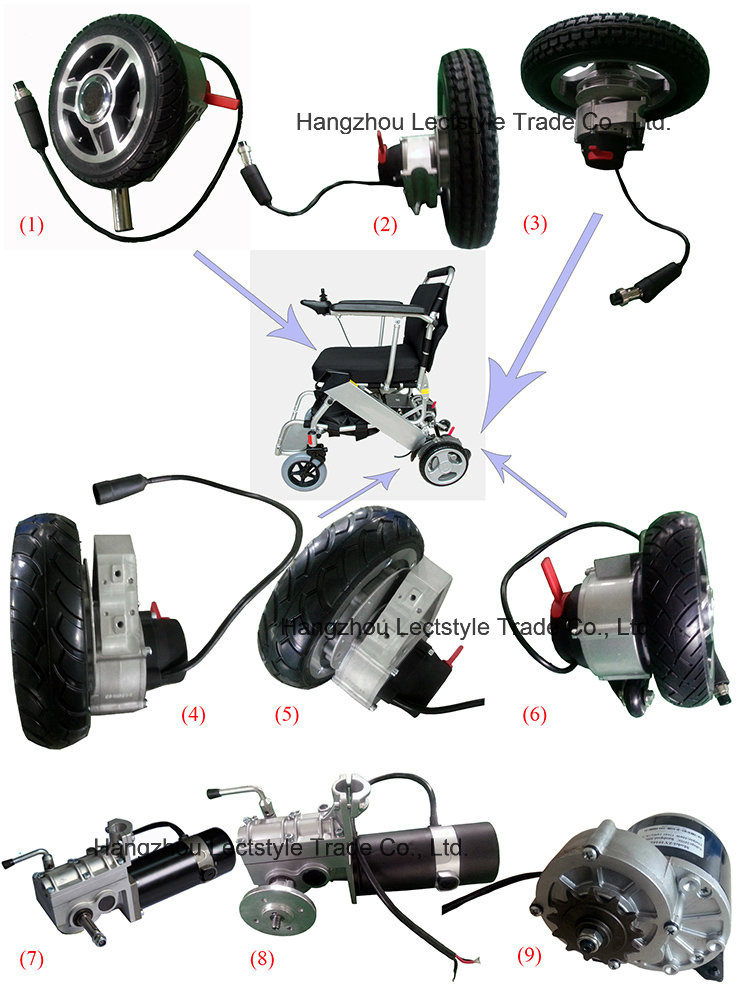

Our part products:
Special motors can be customized per your requirements.
Encoder and gear box can be fixed.
Our business range is supplied to these products as below:
1.Planetary reducer, PMDC Motor, brushless DC motor, and transmission parts etc, these are fabricated from our motor factory.
2. Roller chain, conveyor chain, flat top chain, silent chain, drag chain etc, these are supplied from our chain drive factory.HANGZHOU LECTSTYLE TRADE CO., LTD is responsible for exporting the above products, and we also import some important products from oversea markets.
Our company has got the right of import and export from the Government department.
It is necessary to get your specific requirement when contacting us, for example of motor, voltage, power, speed, output torque, connecting type and size of shaft, outside structure drawing or relevant pictures etc. And then we will give the accurate offers.
Therefore, hope to get your feedback soon.
Rated Voltage: |
110V, 115V AC |
Rated Power: |
450W |
Motor Material: |
Alloy Steel |
Gearbox Material: |
Aluminum |
No Lad Speed: |
3100rpm |
No-Load Output Speed: |
165--171rpm |
Starting Current: |
<3.5A Max |
Reduction Ratio: |
10:1 |
Insulation Voltage: |
0--550 AC, 1 Ma, 1 Sec. |
Number Of Stator: |
Single-Phase |
Function: |
Control |
Brand: |
Lectstyle |
About us
Our HANGZHOU LECTSTYLE TRADE Co., Ltd is one reliable OEM supplier, we have own chain factory, motor factory and export trade company to support our job, some spare parts are from our long cooperated suppliers, these quality parts are repeatedly proven and tested in-factory, so donot worry about our capacity.
Our main supplied products as below:
1. DC Motors, windshield wiper motor, wheelchair motor, dump truck tarp motor, wind turbine generator and planetary reducer
2. Transmission parts (roller chain, agricultural roller chain, conveyor chain, silent chain, sprocket, spur gear, transmission gear, gear shaft etc).
Our company is qualified with integrally mechatronic abilities of design, manufacture and testing. In these years of production process, throught constant practice, experiment and research, we have collected a large amount of data and accumulated rich experience. Through these, our plant created a various of advanced production process documents, quality standard and inspection process documents, which guarantee the product's production process of each contact completely in according to one standard control.
Our LECTSTYLE always adhere to the "Ensuring quality, Persisting improvement, Pursuiting customer satisfaction" principle, to provide the best products for the domestic and foreign clients with the pre-sales and after-sales service.
In the pages, you will find some samples of the thousands of parts, products, and components that LECTSTYLE supervises the fabrication in our own and cooperated factory. It's really best to contact us directly, so the LECTSTYLE can address your project and structure all elements of a complete end to end solution that can get your job done right.
