5015 Series Power Multipole Circular Connectors

Name: 5015 Series Power Multipole Circular Connectors
Brand: all-electronics-online.com
SKU: 837313325
Availability: InStock
Rating: 4.9 (140 reviews)

Price:	US $ 16.9-19.98/Set
Min Order:	5/Set
Pay Type:	T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

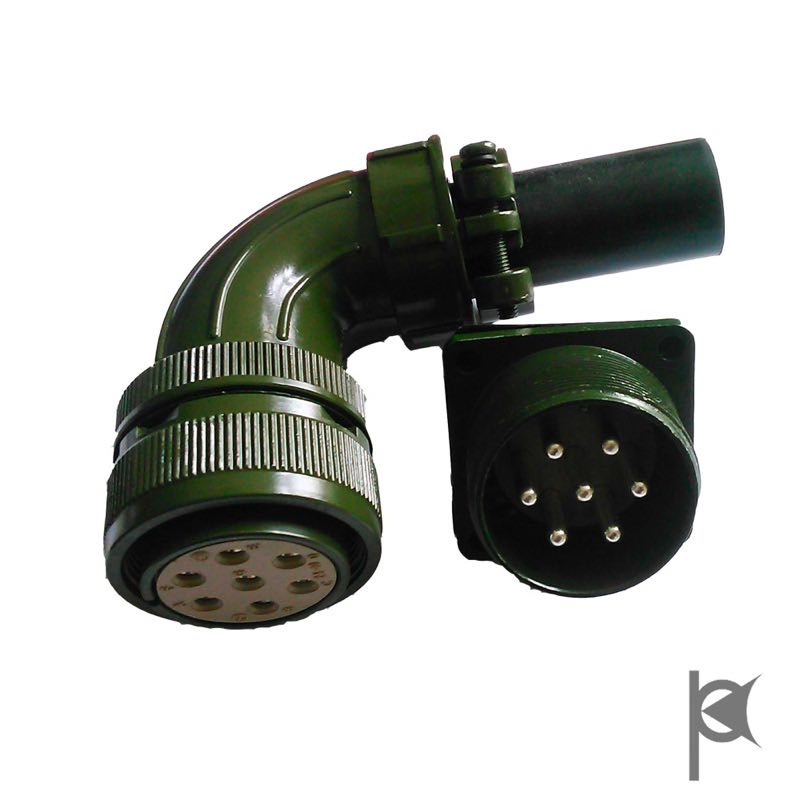

5015 series power multipole circular connectors,MS series circular connectors are useed extensively in line connections between electrical equipment, various instruments and meters. These connectors meet the standard MIL-C-5015, have the features of light weight, aluminium alloy material, wide range, bayonet coupling, good sealing performance, resistance against corrosion, high conductivity and high dielectric strength. It's the ideal product to replace the MIL-C-5015 series. They are interchangeable with the same category each other.CE approved.

Product Ordering
MS/ 3106/ A /22/ - 23/ S / W
1 / 2 / 3 / 4 / 5 / 6 / 7

1. Name of series: MS series connectors
2. Type: 3100: Square flange receptacle with cable shell; 3101: Circular flange receptacle with cable shell; 3102: Square
Flange receptacle; 3106: Plug; 3108: Angled plug.
3. Degree: Ak: Entire, Bk: Can be released
4. Shell type: 8S, 10S, 12S, 14S, 16S, 18, 20, 22, 24, 28, 32, 36, 40
5. Contacts position type
6. Type of contacts: P: Pin, S: Socket
7. Key position: W, X, Y, Z, Without note: Normal position

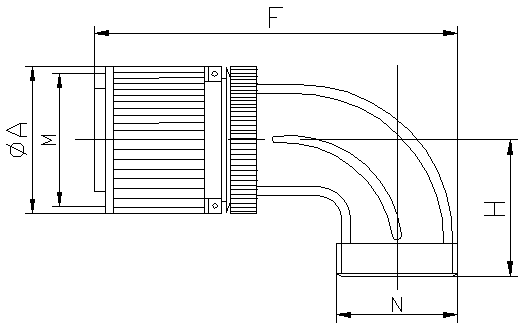

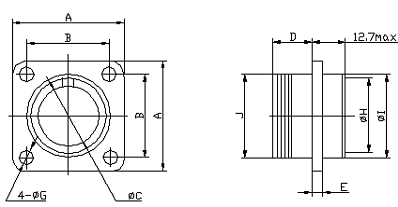

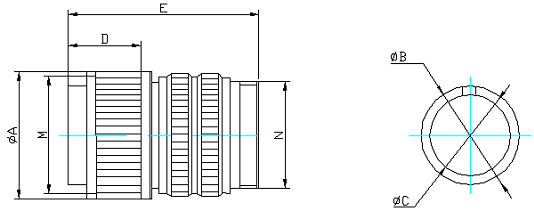

Connector dimensionts:

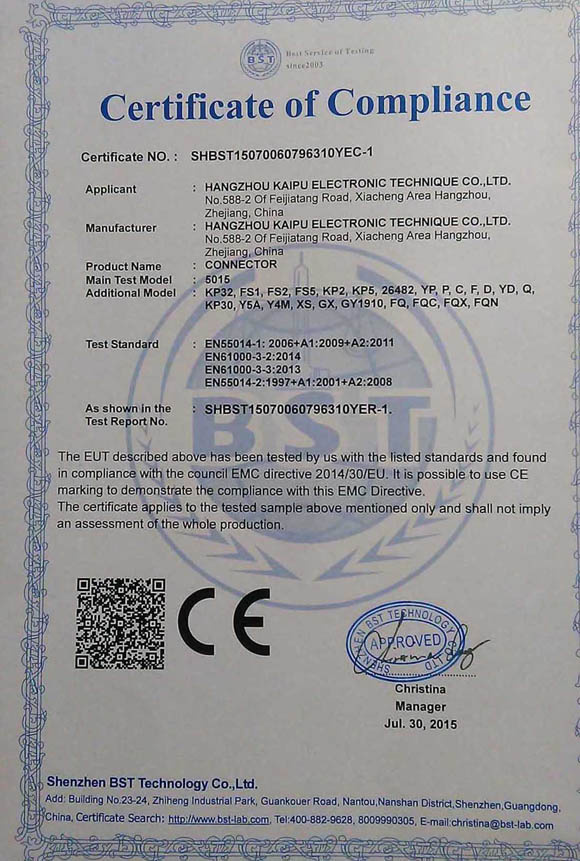

CE certificates:

Prod Model:	24-10
Size:	5015-10SL Shell
Size1:	5015-12s Shell
Size2:	5015-14s Shell
Size3:	5015-16s Shell
Current:	Power Application
Connecting:	Thread Coupling
Size4:	5015-18 Shell
Size5:	5015-20 Shell
Size6:	5015-22 Shell
Size7:	5015-24 Shell
Standard:	British Standard
Function:	DC Plug
Shape:	EP
Certification:	Ce
Brand:	Kaipu

Electronics supplier, China factory, connector manufacturer, plug supplier, Hangzhou Kaipu Electronic Technique Co., Ltd. is a company specializing in manufacture of circular connectors and rectangular connectors of high quality. We design and make water proof connectors, power plugs, electrical connectors.

ISO9001: 2008, Registration Number: 04005Q11376R0S.

Our products of connectors:

1. Circular series AISG, Y2, Y2M, Y3, Y4, Y4M, Y5, Y5A, Y11, Y27, Y50E(MIL-C-26482), PTB, YP21, YP28, YP36, YP50, JL5, JL16, JL33, FQ(IP67), FQ14, FQ18, FQ24, FQ30, FX16, FQN14, FQN18, FQN24,

FQN, FQC, FQX(IP68), kp11(IP67), kp22(IP68), KP32(C16), P20, P28, P32, P36, P40, P48, P55, P60, YD20, YD28, YD32, YD40, YD48, YD55, X, Q14, Q18, Q24, Q30, TY20, TY32, TY48, LYP, XC (similar as MIL-38999), 2PM, 2CX, CX, PC-4TB, PC-7TB, PC-10TB, PC-19TB, PC-32TB, PC etc.

2. Rectangular connector series B, C, F etc meet DIN41612, J7, J7A, J14A, J14B, J14D, J15, J36A.

Our connectors of KP32, FS1, FS2 have UL certificate: E308558.

Most of our connectors have CE certificates.
